Description

Brand APEM
Product Code1019C
Stock Status149
Stock149

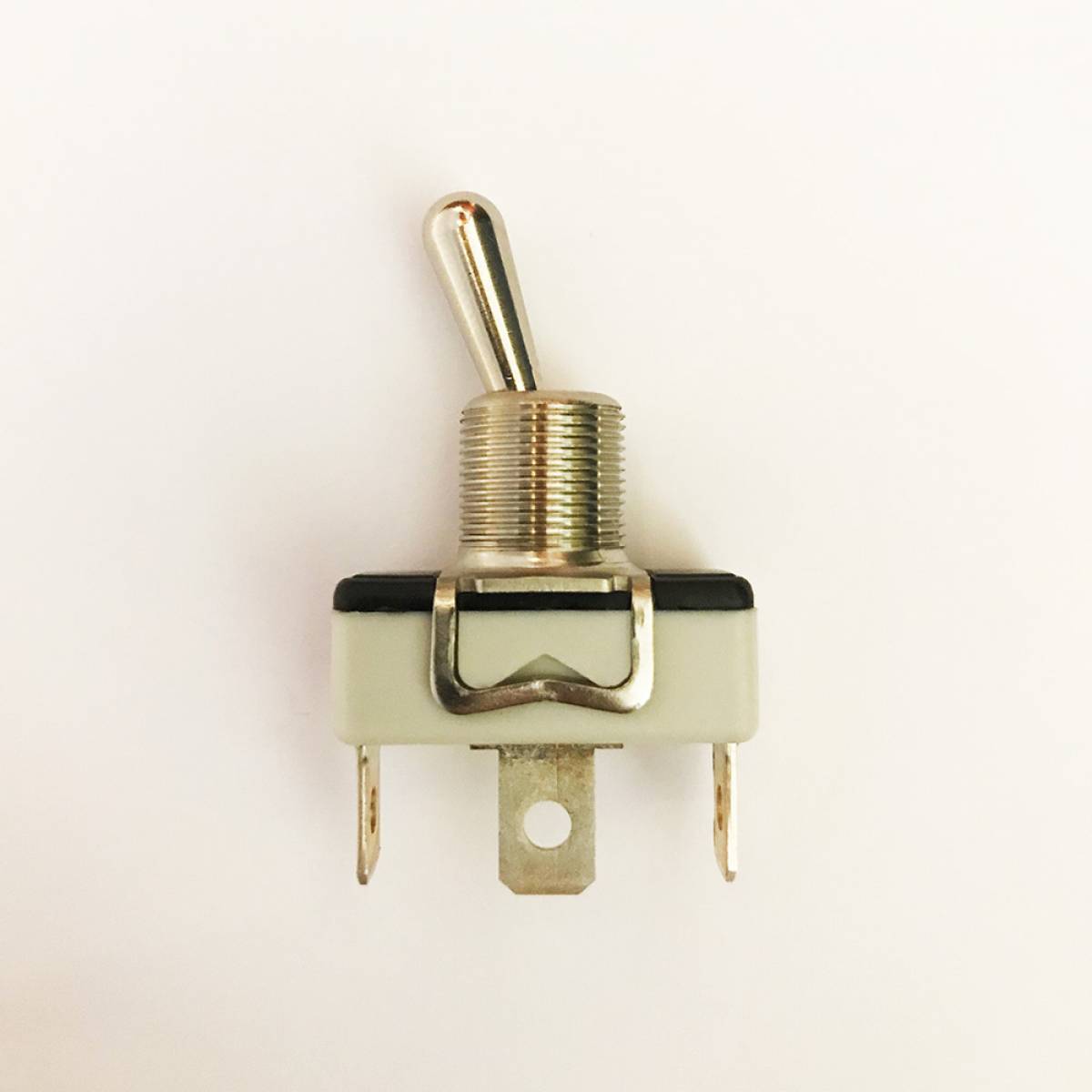

APEM 1000 Serisi ONOFFON Toggle Switch

The 1000 series toggle switches are single pole configurations and available with solder lug,
quick-connect or screw terminals.

MAIN FEATURES
Optional insulated lever (X213 and X490)
Sealing boots
2 to 6 amps
Coin silver or silver plated copper terminals

1000 Series Datasheet

1019C 3D Drawing

SERIES

25.34 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total
25	2.82 €	70.50 €
100	2.30 €	230.00 €
250	2.04 €	510.00 €
500	1.99 €	995.00 €
750	1.95 €	1,462.50 €
1000	1.80 €	1,800.00 €

Property Name	Property Value
SERIES	1000
TERMINALS	Solder lug/quick-connect
ELECTRICAL FUNCTIONS	ON OFF ON
CONTACT MATERIALS	Copper, silver plated

We'll Call You

Description

GENERAL SPECIFICATION

• Torque: 1.50 Nm (1.10 Ft.lb) max. applied to nut

• Panel thickness: 5 mm (.196) max.

ENVIRONMENTAL SPECIFICATIONS

• Operating temperature: -20°C to +55°C (-20°F to 131°F)

ELECTRICAL SPECIFICATIONS

• Max. current/voltage rating with resistive load:

- silver contacts (A): 6A 30VDC

- silver plated copper contacts (C): 1A 30VDC

• Initial contact resistance: 10 m? max.

• Insulation resistance: 1,000 M? min. at 500VDC

• Dielectric strength:

2,000 Vrms 50 Hz min. between terminals

2,500 Vrms 50 Hz min. between terminals and frame

• Electrical life: 10,000 cycles at full load

MATERIALS

• Case:

- function 1: phenolic resin

- function 6 & 9: polyamide

• Actuator:

- brass, nickel plated (1010 and 1020 models)

- polyamide (1030 models)

• Bushing: brass, nickel plated

• Contacts:

A: silver

C: copper, silver plated
