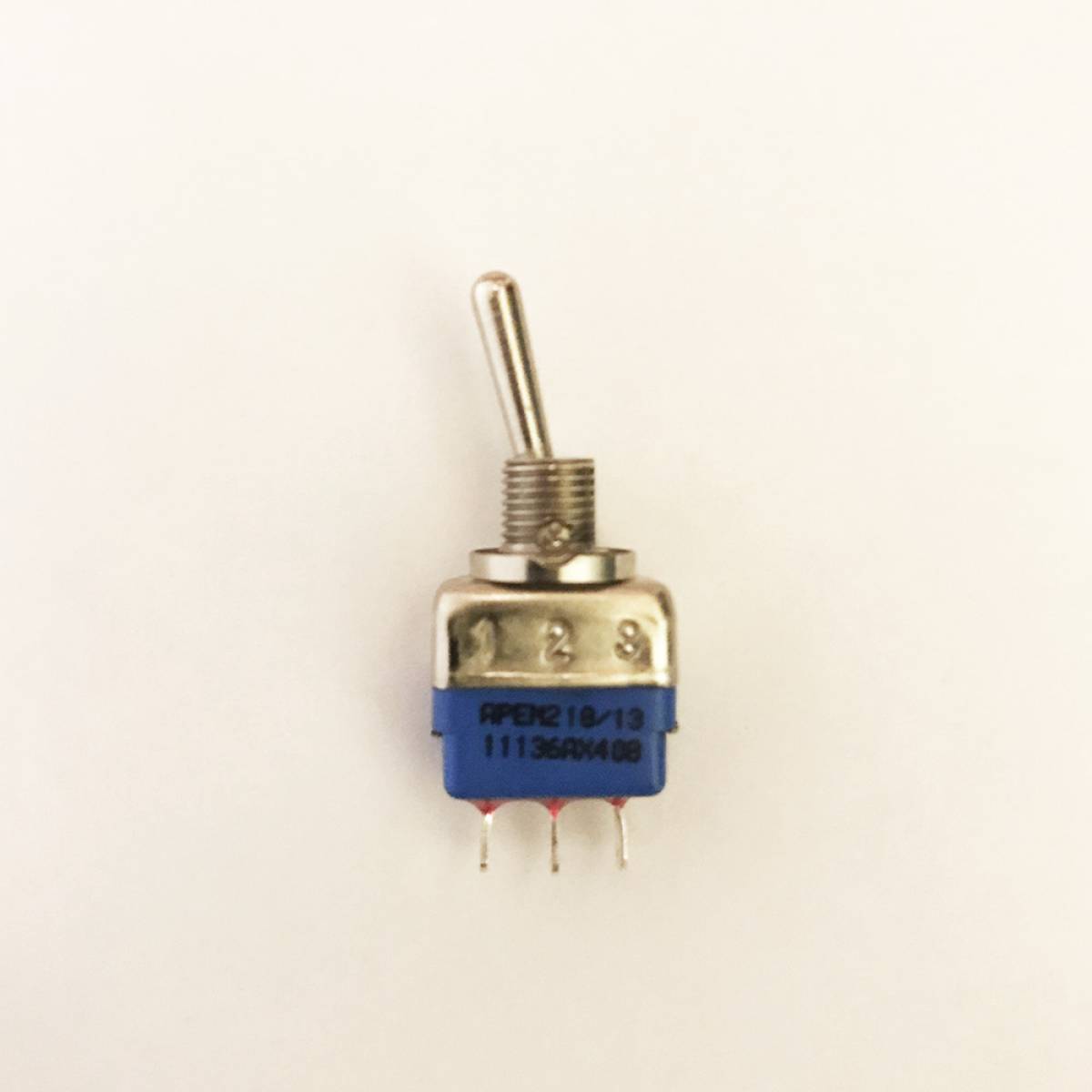

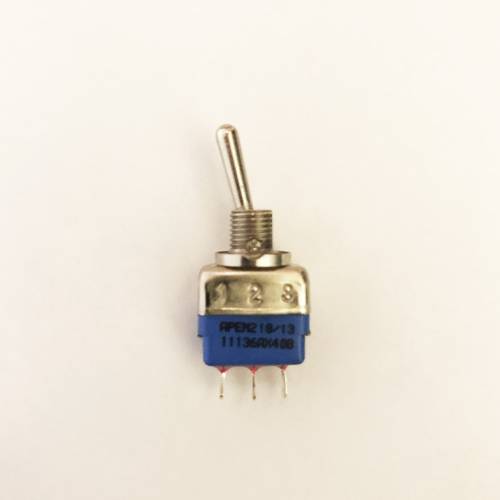

APEM 11000 Series Toggle Switch
The 11000 series switches are specially manufactured for defense and telecommunications applications.

MAIN FEATURES
Approvals: CECC 96201-005 and CECC 96201-008
Robust switches for high specification environments
Toggle action on 2-position models giving smooth mechanical operation
Plastic material with high insulation resistance
Several front panel sealing options
Bright chrome or matt black finish
Upon request, each individual switch can be submitted to a low-level run-in test of 50 or 250 cycles to ensuresuitability for special applications requiring a very high level of reliability (military, etc.).
248.59 €
Piece
Piece Unit price Total
10 27.62 € 276.20 €
50 21.97 € 1,098.50 €
Property Name Property Value
SERIES 11000
TERMINALS AND BUSHINGS Solder lug or right angle
NUMBER OF POLES Single Pole
ELECTRICAL FUNCTIONS ON - ON
TERMINALS Solder lugs or straight PC
CONTACT MATERIALS Silver
FINISH Nickel plated
SEALING Epoxy sealed terminals standard
LEVERS Standart
SPECIAL OPTIONS No special requirement
We'll Call You


Thank you,
We will contact you as soon as possible

Send
  • GENERAL SPECIFICATION
    • Torque:1.25 Nm (.92 Ft.lb) max. applied between the 2 nuts
    • Standard panel thickness: 2.5 mm (.098) max.

    ENVIRONMENTAL SPECIFICATIONS
    • Operating temperature: -40 °C to +85 °C (-40 °F to 185 °F)

    ELECTRICAL SPECIFICATIONS
    • Max. current/voltage rating with resistive load:
    - silver contacts (A-AD2-X780): 4 A 30 VDC
    - gold contacts (D): 100 mA 30 VDC
    • Minimum load: AD2-X780-D contacts: 10 mA 50 mV, 10 µA 5 V min.
    • Initial contact resistance: 10 m? max.
    • Insulation resistance: 1,000 M? min. at 500 VDC
    • Dielectric strength:
    1,000 Vrms 50 Hz min. between terminals
    2,000 Vrms 50 Hz min. between poles and between terminals and frame
    • Contact bounce: 2 ms max

    MATERIALS
    • Case: diallylphthalate (DAP)
    • Actuator: brass, nickel plated
    • Bushing: brass, nickel plated
    • Housing: brass, nickel plated
    • Contacts
    A: silver
    AD2: gold plated silver (2 microns gold)
    X780: solid rivet - gold plated silver/nickel alloy
    D: solid gold rivet
    X910: silver/nickel alloy
    • Terminal seal: epoxy
    • AD2 and X780 contacts can be used for high-level applications. In this case, the
    gold layer is considered only as a protection against oxidation during storage.

    APPROVALS
    CECC
