Description
  • Brand APEM
  • Product Code12146X778
  • Stock Status1853
  • Stock1853

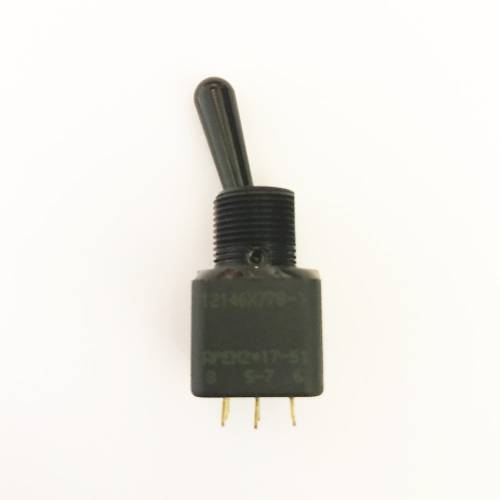

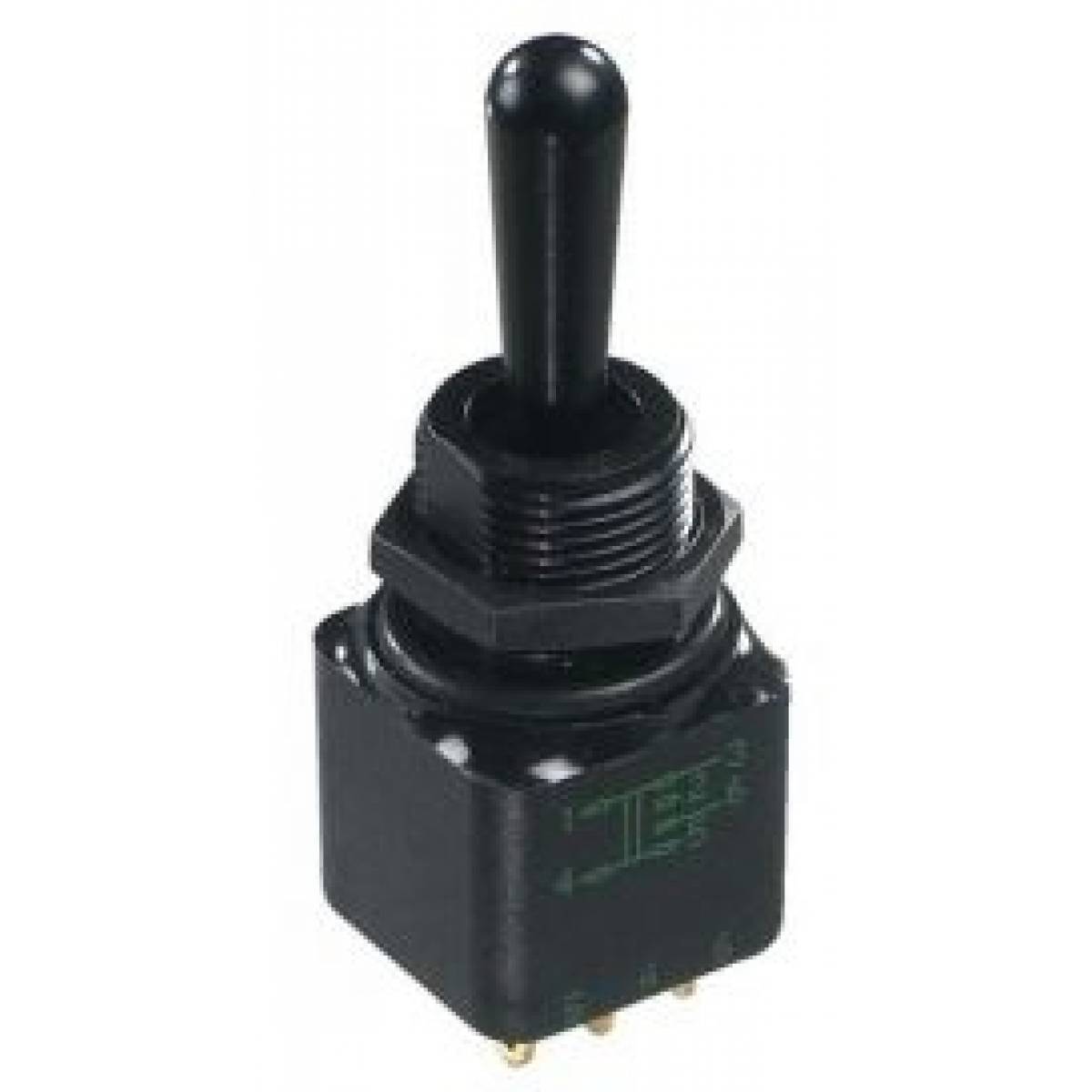

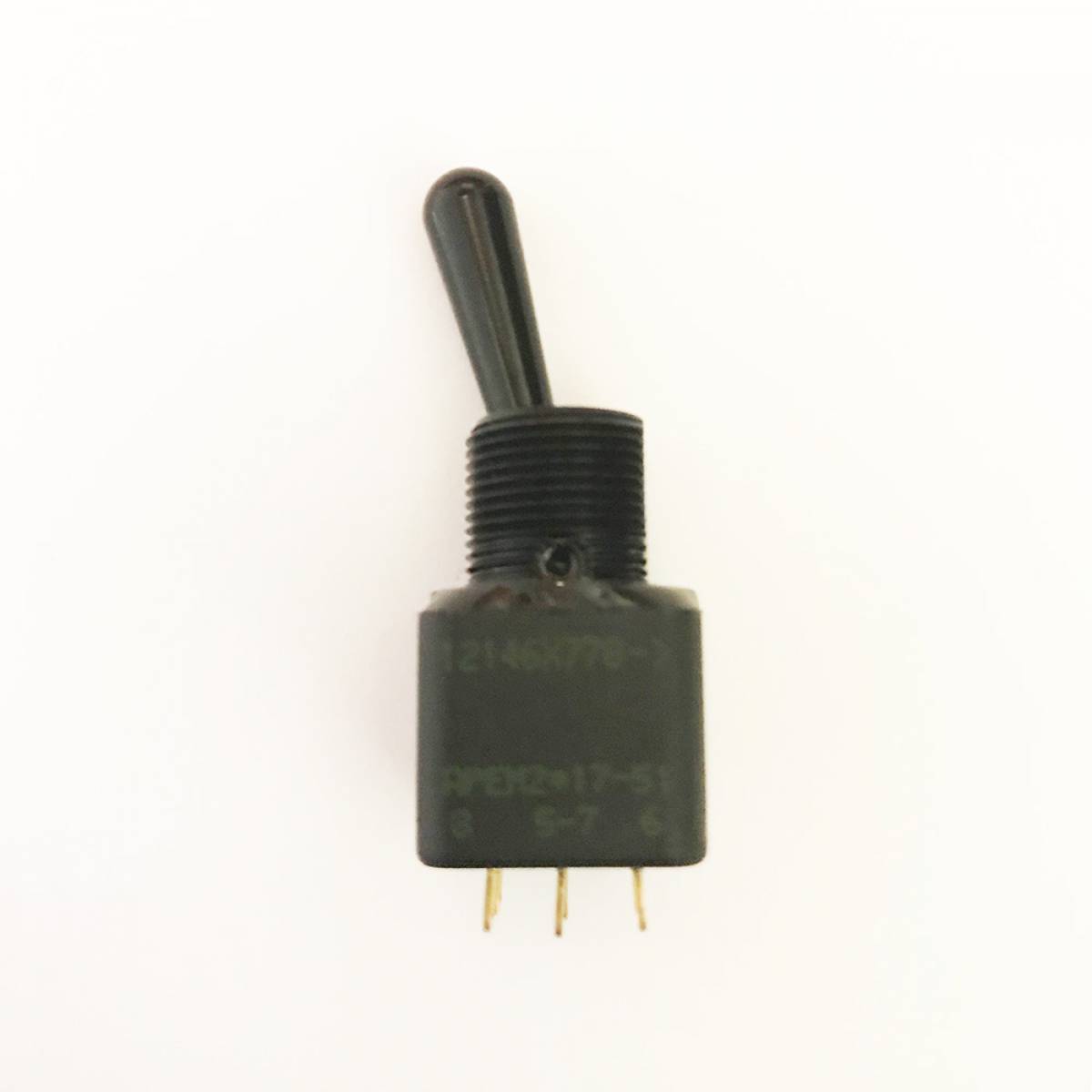

APEM 12000X778 Series Double Poles ONON Toggle Switch

This range of professional toggle switches is suitable for use in military and other
high specification environments. CECC and MIL approved, the 12000X778 toggle switch
has a double shell case construction and pinned lever for extra mechanical strength
and robust seal up to IP67. Available with solid rivet contact: gold plated silver/nickel alloy.
Comprehensive range of sealing boots and security caps available.
";i:1;s:0:"";i:2;s:0:"";i:3;s:0:"";i:4;s:0:"";i:5;s:0:"";}
68.00 €
Piece
Piece Unit price Total
10 59.00 € 590.00 €
25 58.00 € 1,450.00 €
50 56.00 € 2,800.00 €
100 50.00 € 5,000.00 €
250 49.50 € 12,375.00 €
500 49.00 € 24,500.00 €
1000 48.00 € 48,000.00 €
10000 40.00 € 400,000.00 €
Property Name Property Value
SERIES 12000x778
TERMINALS AND BUSHINGS Solder lug
NUMBER OF POLES Double Pole
ELECTRICAL FUNCTIONS ON - ON
FLUORESCENT TIP None
LEVERS Standart
X778 High performance fully sealed black switches.
We'll Call You


Thank you,
We will contact you as soon as possible

Send
  • GENERAL SPECIFICATION
    • Torque: 1.50 Nm (1.10 Ft.lb) max. applied to nut
    • Panel thickness: 8 mm (.314) max. - 3 mm (.118) min.
    • Electrical life:
    - At 4A 28VDC:
    20,000 cycles (10,000 for functions 5, 4-1R, 4-2R)
    - At low level (50mV 10mA):
    150,000 cycles (switches with 2 maintained positions)
    100,000 cycles (switches with 3 maintained positions)
    50.000 cycles (momentary functions 7, 8, 4-1R, 4-2R, 5)

    ENVIRONMENTAL SPECIFICATIONS
    • Shock test: 50g - 11ms (IEC 68-2-27)
    • Vibrations: 10-500 Hz - 10g (IEC68-2-6)
    • Operating temperature: -40°C to +85°C (-40°F to 185°F)
    • Humidity test: 56 days, 93 % R.H., 40°C (IEC 68-2-3)
    • Salt spray test: 96 hours (IEC 68-2-11)
    • Front panel sealing by two O-rings flatted bush for precise orientation
    • Panel seal withstands 1 bar pressure and remains sealed even when the switch is operated.
    • Epoxy sealed terminals
    • Splash-proof case

    ELECTRICAL SPECIFICATIONS
    • Max. current/voltage rating with resistive load: 4A 28VDC
    • Minimum load: 10mA 50mV, 10µA 5VDC
    • Initial contact resistance: 10 m? max.
    • Insulation resistance: 1,000 M? min. at 500VDC
    • Dielectric strength:
    1,000 Vrms 50 Hz min. between terminals
    2,000 Vrms 50 Hz min. between poles
    • Contact bounce: 2 ms max.

    MATERIALS
    • Case: diallylphthalate (DAP) with plastic external shell (epoxy sealed)
    • Actuator: brass, black chrome plated
    • Bushing: brass, black chrome plated
    • Contacts: solid rivet - gold plated silver/nickel alloy
