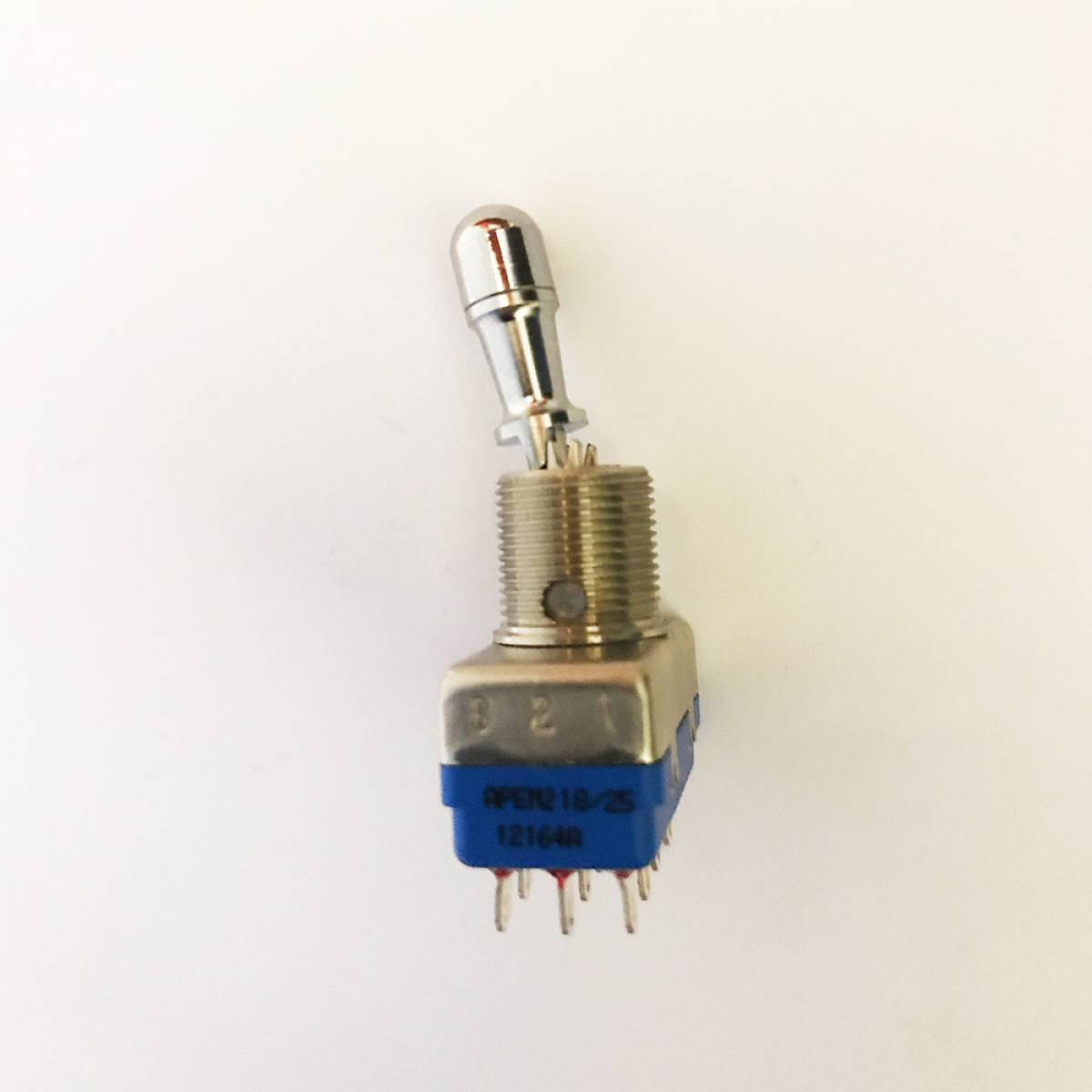

APEM 12000 Series Four Pole ONONON Toggle Switch

Toggle switches specially manufactured for defense, telecommunications and other industrial applications.
1, 2, 3 and 4 pole configurations, silver, gold-plated silver or solid gold rivet contacts.
Several front panel sealing options. Bright chrome, satin chrome or matt black finish. CECC approved.
Several locking lever options.
669.89 €
Piece
Piece Unit price Total
10 74.43 € 744.30 €
40 70.89 € 2,835.60 €
60 59.19 € 3,551.40 €
Property Name Property Value
SERIES 12000
TERMINALS AND BUSHINGS Solder lug terminals
NUMBER OF POLES Four Pole
ELECTRICAL FUNCTIONS ON ON ON | ON ON MOM | MOM ON MOM
MOMENTARY FOR FUNCTION 4 Other Options(see sheet)
CONTACT MATERIALS Silver
FINISH Nickel plated
SEALING Epoxy sealed terminals standard
FLUORESCENT TIP None
LEVERS Standart
We'll Call You


Thank you,
We will contact you as soon as possible

Send
  • GENERAL SPECIFICATION
    • Torque:1.50 Nm (1.10 Ft.lb) max. applied between the 2 nuts
    • Standard panel thickness: 4.5 mm (.177) max.

    ENVIRONMENTAL SPECIFICATIONS
    • Operating temperature : -40 °C to +85 °C (-40 °F to 185 °F)

    ELECTRICAL SPECIFICATIONS
    • Max. current/voltage rating with resistive load:
    - silver contacts (A-AD2-X780): 4 A 30 VDC
    - gold contacts (D): 100 mA 30 VDC
    • Minimum load: AD2-X780-D contacts: 10 mA 50 mV, 10 µA 5 V min.
    • Initial contact resistance: 10 m? max.
    • Insulation resistance: 1.000 M? min. at 500 VDC
    • Dielectric strength:
    1,000 Vrms 50 Hz min. between terminals
    2,000 Vrms 50 Hz min. between poles and between terminals and frame
    • Contact bounce: 2 ms max.

    MATERIALS
    • Case: diallylphthalate (DAP)
    • Actuator: brass, chrome plated
    • Bushing: brass, nickel plated
    • Housing: brass, nickel plated
    • Contacts
    A: silver
    AD2: gold plated silver (2 microns gold)
    X780: solid rivet - gold plated silver/nickel alloy
    D: solid gold rivet
    X910: silver/nickel alloy
    • Terminal seal: epoxy
    • AD2 and X780 contacts can be used for high-level applications. In this case, the gold layer is considered only as a protection against oxidation during storage.
