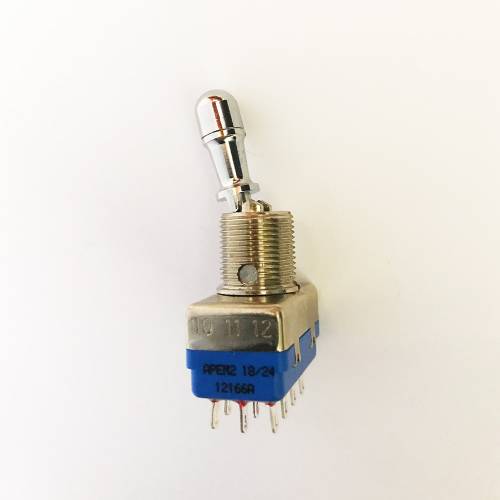

APEM 12000 Series Four Poles ONON Toggle Switch

Toggle switches specially manufactured for defense, telecommunications and other industrial applications.
1, 2, 3 and 4 pole configurations, silver, gold-plated silver or solid gold rivet contacts.
Several front panel sealing options. Bright chrome, satin chrome or matt black finish. CECC approved.
Several locking lever options.
653.55 €
Piece
Piece Unit price Total
10 72.62 € 726.20 €
40 69.16 € 2,766.40 €
60 57.75 € 3,465.00 €
Property Name Property Value
SERIES 12000
TERMINALS AND BUSHINGS Solder lug terminals
NUMBER OF POLES Four Pole
ELECTRICAL FUNCTIONS ON - ON
MOMENTARY FOR FUNCTION 4 Other Options(see sheet)
CONTACT MATERIALS Silver
FINISH Nickel plated
SEALING Epoxy sealed terminals standard
FLUORESCENT TIP None
LEVERS 2 locked position
We'll Call You


Thank you,
We will contact you as soon as possible

Send
  • GENERAL SPECIFICATION
    • Torque:1.50 Nm (1.10 Ft.lb) max. applied between the 2 nuts
    • Standard panel thickness: 4.5 mm (.177) max.

    ENVIRONMENTAL SPECIFICATIONS
    • Operating temperature : -40 °C to +85 °C (-40 °F to 185 °F)

    ELECTRICAL SPECIFICATIONS
    • Max. current/voltage rating with resistive load:
    - silver contacts (A-AD2-X780): 4 A 30 VDC
    - gold contacts (D): 100 mA 30 VDC
    • Minimum load: AD2-X780-D contacts: 10 mA 50 mV, 10 µA 5 V min.
    • Initial contact resistance: 10 m? max.
    • Insulation resistance: 1.000 M? min. at 500 VDC
    • Dielectric strength:
    1,000 Vrms 50 Hz min. between terminals
    2,000 Vrms 50 Hz min. between poles and between terminals and frame
    • Contact bounce: 2 ms max.

    MATERIALS
    • Case: diallylphthalate (DAP)
    • Actuator: brass, chrome plated
    • Bushing: brass, nickel plated
    • Housing: brass, nickel plated
    • Contacts
    A: silver
    AD2: gold plated silver (2 microns gold)
    X780: solid rivet - gold plated silver/nickel alloy
    D: solid gold rivet
    X910: silver/nickel alloy
    • Terminal seal: epoxy
    • AD2 and X780 contacts can be used for high-level applications. In this case, the gold layer is considered only as a protection against oxidation during storage.
