134459X778

Name: 134459X778
Brand: APEM
Price: 87917 € EUR
Availability: OutOfStock
Rating: 0 (0 reviews)

Print this page

Description

Brand APEM
Product Code134459X778
Stock StatusPre-order
Stock0

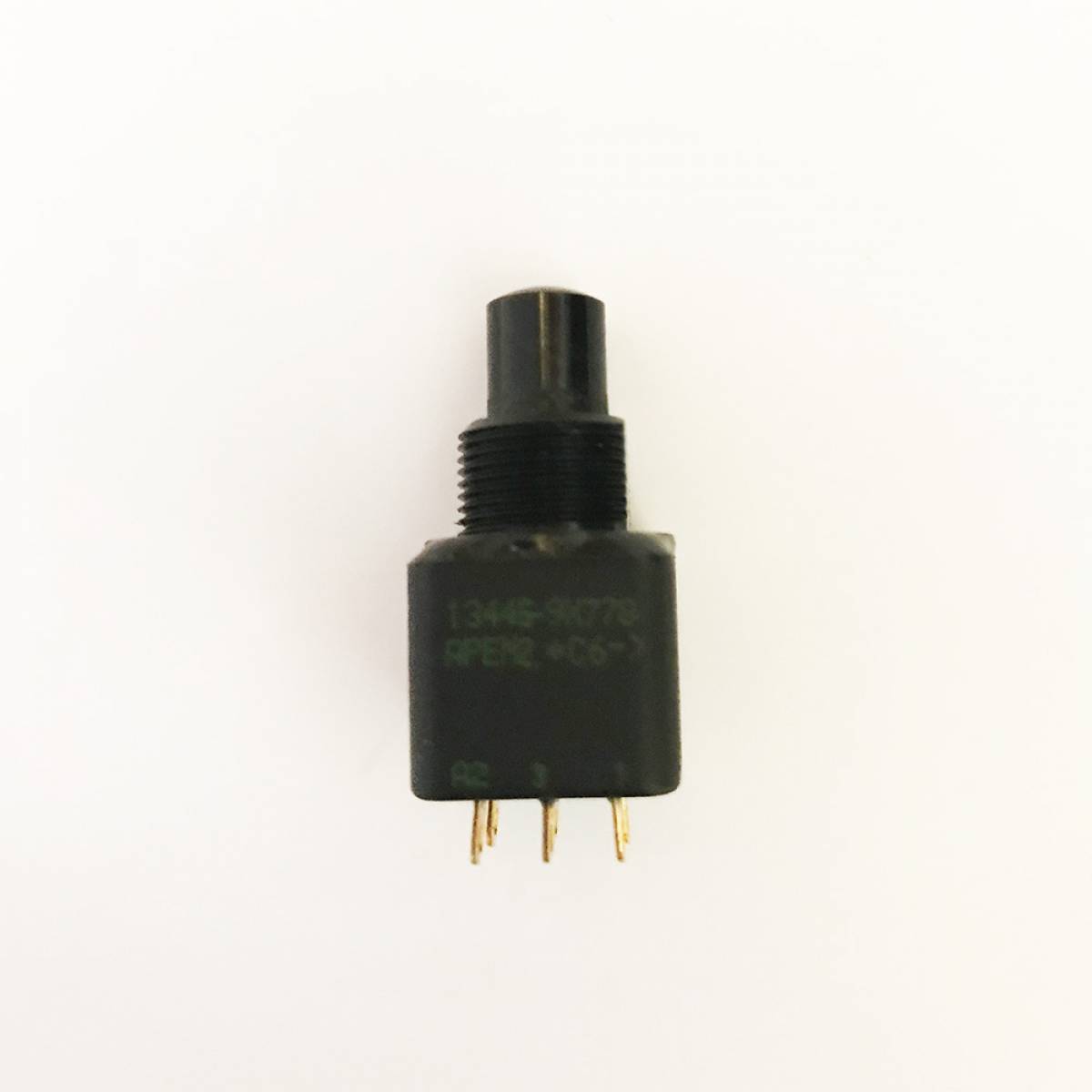

APEM 13000X778 Series Momentary Button

High reliability single pole and Double Poles momentary Pushbutton Switchs, with silver or gold plated contacts.

134459X778 3D Drawing

13000X778 Series Datasheet

879.17 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total
10	97.69 €	976.90 €
25	93.03 €	2,325.75 €
50	77.68 €	3,884.00 €

Property Name	Property Value
SERIES	13000X778
SERIES	13000X778
TERMINALS AND BUSHINGS	Solder lug terminals, threaded bushing Ø 11.9 (15/32)
NUMBER OF POLES	Double Pole
ELECTRICAL FUNCTIONS	ON - MOM
PLUNGERS	9 mm (.354) long
X778	High performance fully sealed black switches.

We'll Call You

Tags: apem 134459X778 13000X778 series pushbutton switch

Description

GENERAL SPECIFICATION
• Total travel : 2 mm (.078)
• Torque : 1.50 Nm (1.10 Ft.lb) max. applied to nut
• Panel thickness : 5 mm (.196) max.
ENVIRONMENTAL SPECIFICATIONS
• Shock test : 50 g - 11ms (IEC 68-2-27)
• Vibrations : 10-500 Hz - 10 g (IEC68-2-6)
• Operating temperature : -40 °C to +85 °C
• Humidity test : 56 days, 93 % R.H., 40°C (IEC 68-2-3)
• Salt spray test : 96 hours (IEC 68-2-11)
ELECTRICAL SPECIFICATIONS
• Max. current/voltage rating with resistive load : 4 A 28 VDC
• Minimum load : 10 mA 50 mV, 10 µA 5 VDC
• Initial contact resistance : 10 m? max.
• Insulation resistance : 1,000 M? min. at 500 VDC
• Dielectric strength :
1,000 Vrms 50 Hz min. between terminals
2,000 Vrms 50 Hz min. between poles
2,000 Vrms 50 Hz min. between terminals and frame
• Contact bounce : 2 ms max.
• Electrical life :
- At 4 A 28 VDC : 10,000 cycles
- At low level (50 mV 10 mA) : 150,000 cycles
MATERIALS
• Case : diallylphthalate (DAP) with PBT external shell (epoxy sealed)
• Actuator : brass, black chrome
• Bushing : brass, black chrome plated
• Contacts : silver inlay - gold plated over nickel barrier
