Description

Brand APEM
Product Code1TS16LMH76309
Stock Status182
Stock182

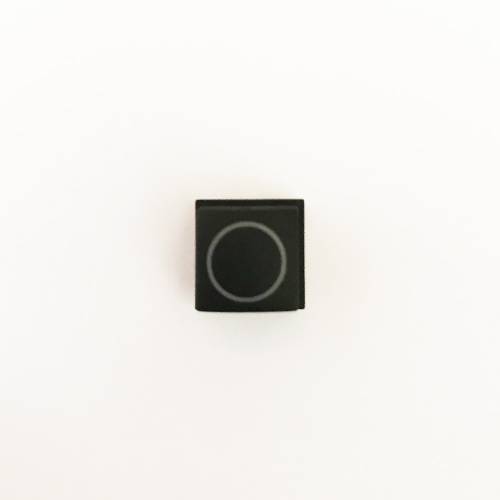

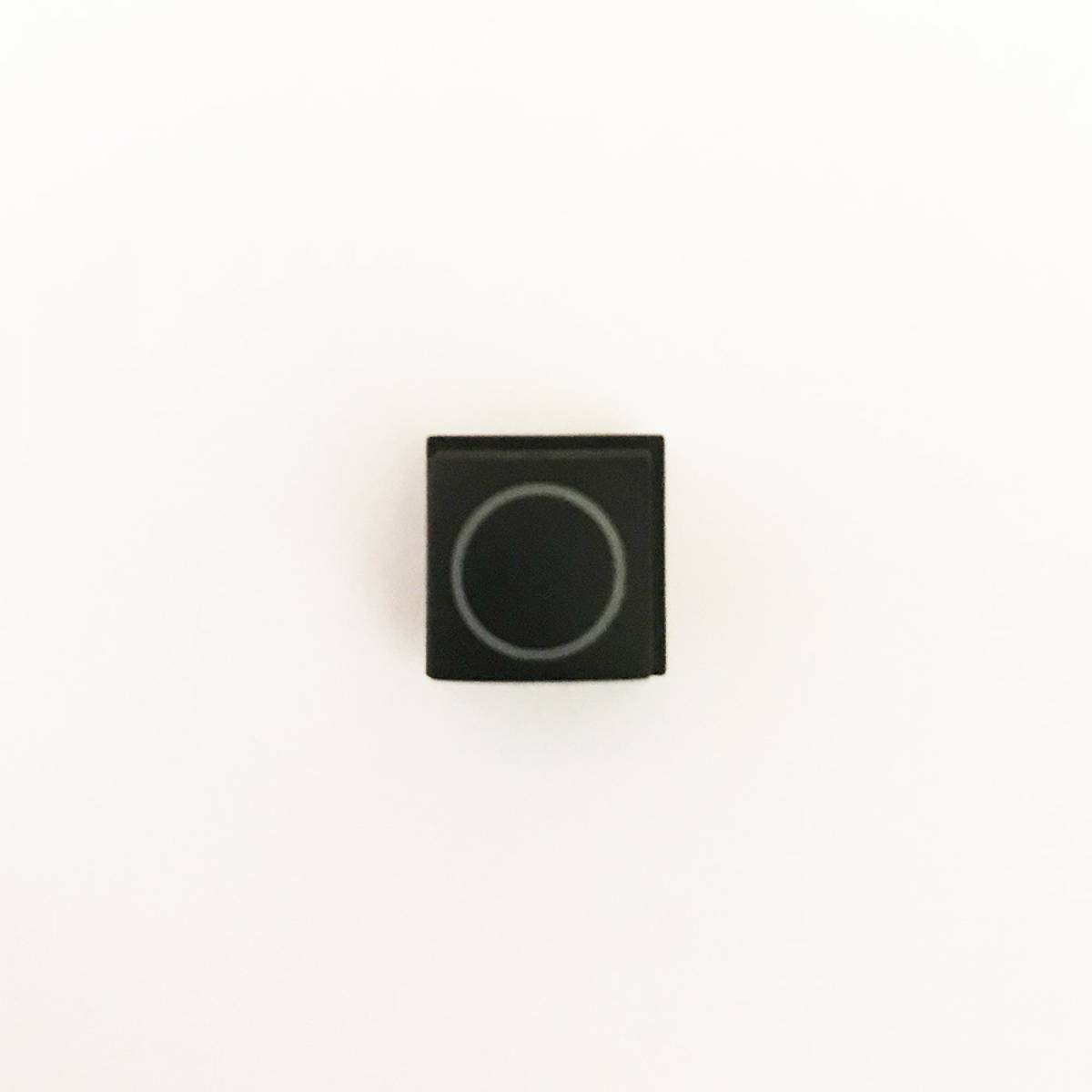

MEC Switch Black with White \'O\' Symbol Square Cap

A square cap with a rounded top and optional front panel sealing to IP65.
The 1TS cap together with 1VS can be designed into a navigation unit or a keyboard.
1TS cap series is mounted on Multimec™ 5G series.

1TS16 3D Drawing

1TS Datasheet

4.80 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total

Property Name	Property Value

We'll Call You

Description

GENERAL SPECIFICATION

• 10.6 x 10.6 mm

• h=14.9 mm

• Standard colors:

-solid colors: blue, grey, red & black

-transparent color: frosted white

• Panel cut-out: 11.0 x 11.0 mm

ENVIRONMENTAL SPECIFICATIONS

• Optional front panel sealing to IP65 with 1TW

• Temperature range:

-solid cap: -40/+65 °C

-transparent cap: -40/+85 °C

MATERIALS

• Cap:

-solid color: ABS UL94HB

-illuminated: polycarbonate UL94HB
