1YS0616

Print this page
Description
  • Brand APEM
  • Product Code1YS0616
  • Stock Status1901
  • Stock1901

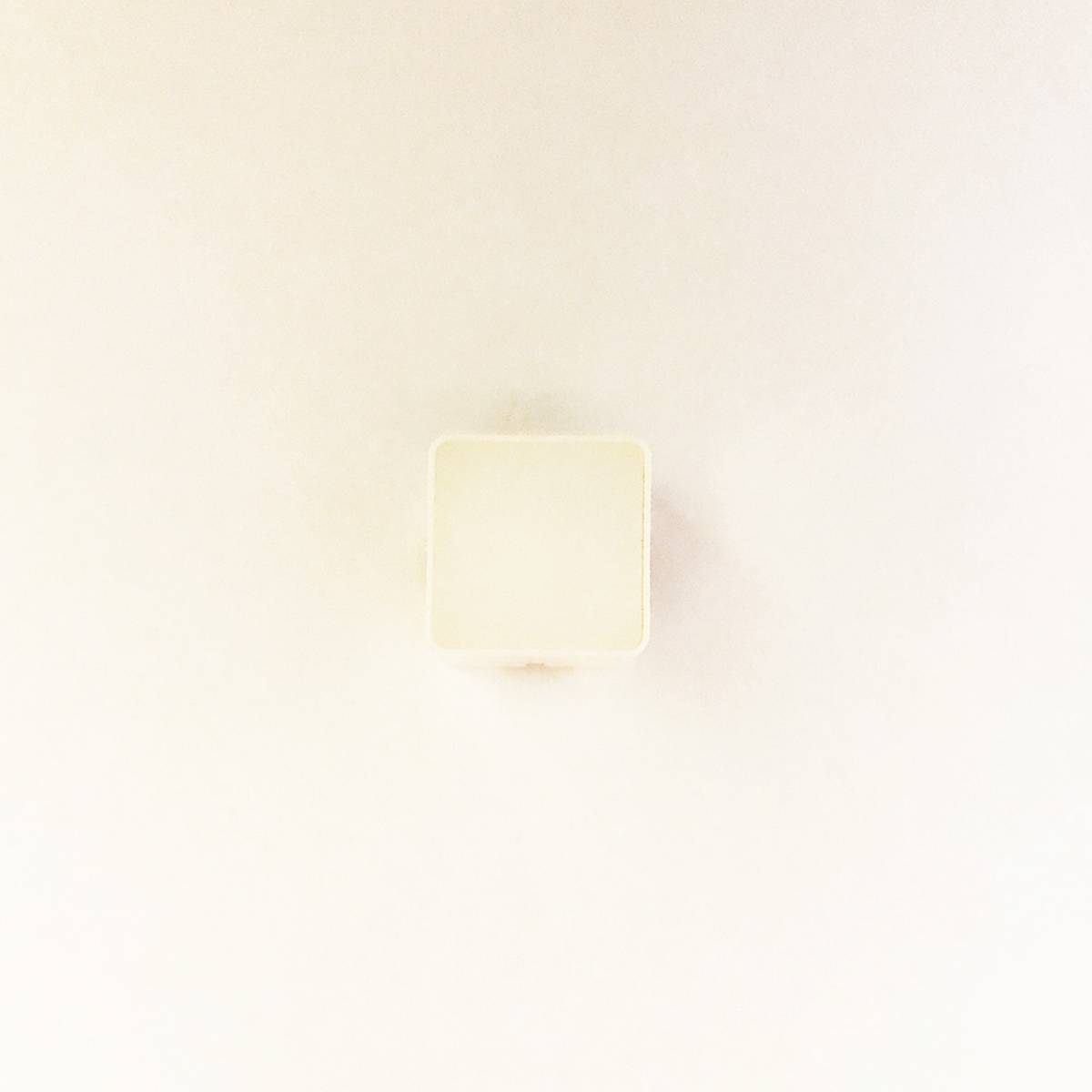

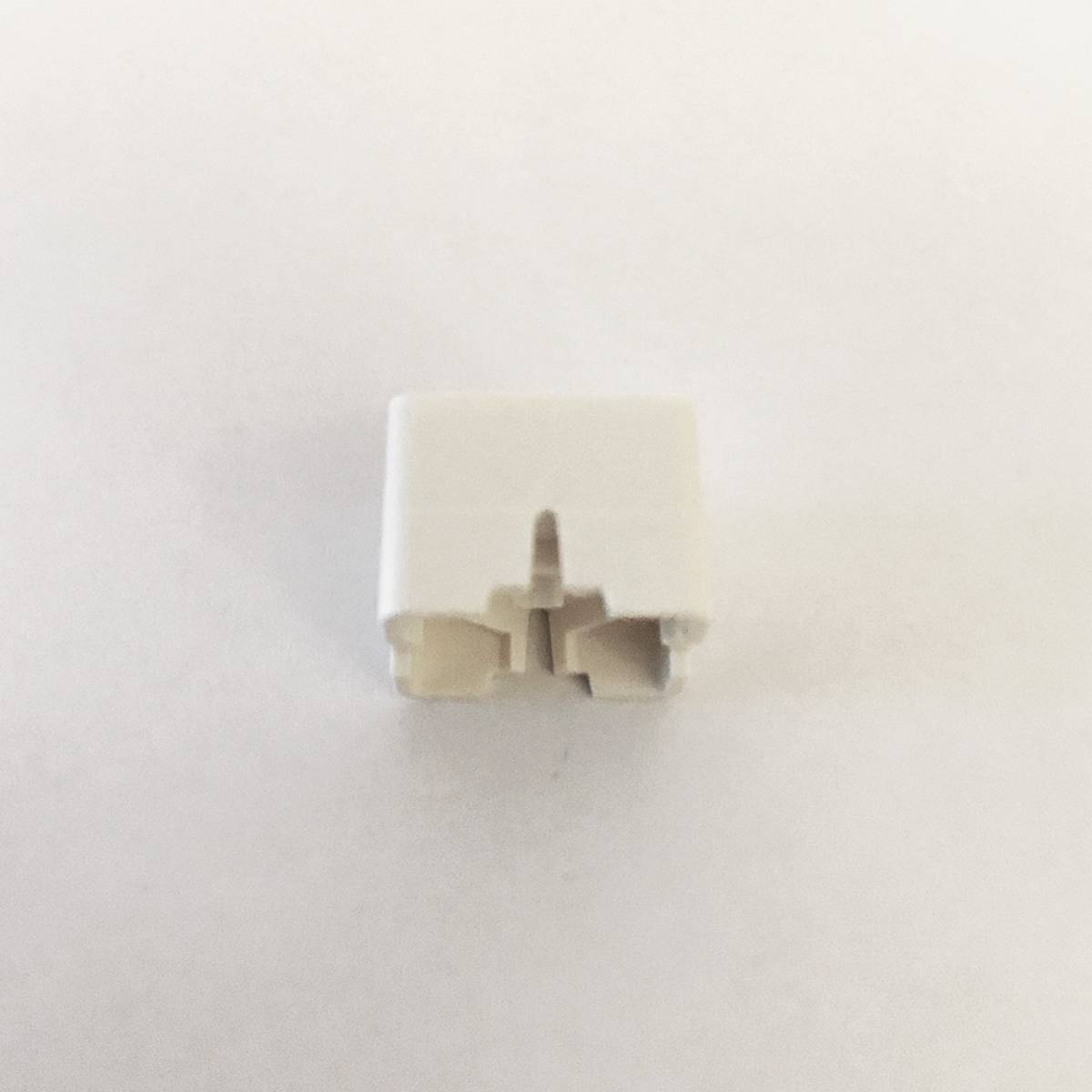

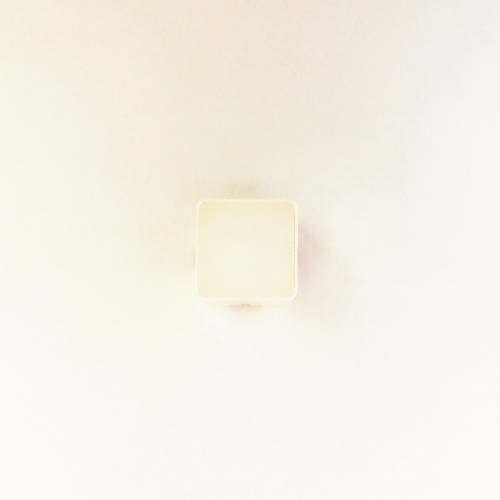

MEC Switch Transparent Over White Square Cap

A square cap with round corners and a flat top designed for using under an overlay.
For illumination chip-LEDs on the PCB are required.
Foilmec™ 1YS cap series is mounted on Multimec™ 5E series.
4.80 €
Piece
Piece Unit price Total
Property Name Property Value
We'll Call You


Thank you,
We will contact you as soon as possible

Send
  • GENERAL SPECIFICATION
    • 15.0 x 15.0 mm
    • h=12.5 mm
    • Standard color: white cap with a frosted white lens
    • Panel cut-out: 16.0 x 16.0 mm

    ENVIRONMENTAL SPECIFICATIONS
    • Temperature range:
    -solid cap: -40/+65 °C
    -lens: -40/+85 °C

    MATERIALS
    • Cap: ABS UL94HB
    • Lens: polycarbonate UL94HB
