- Product Code26PNCE
- Stock Status118

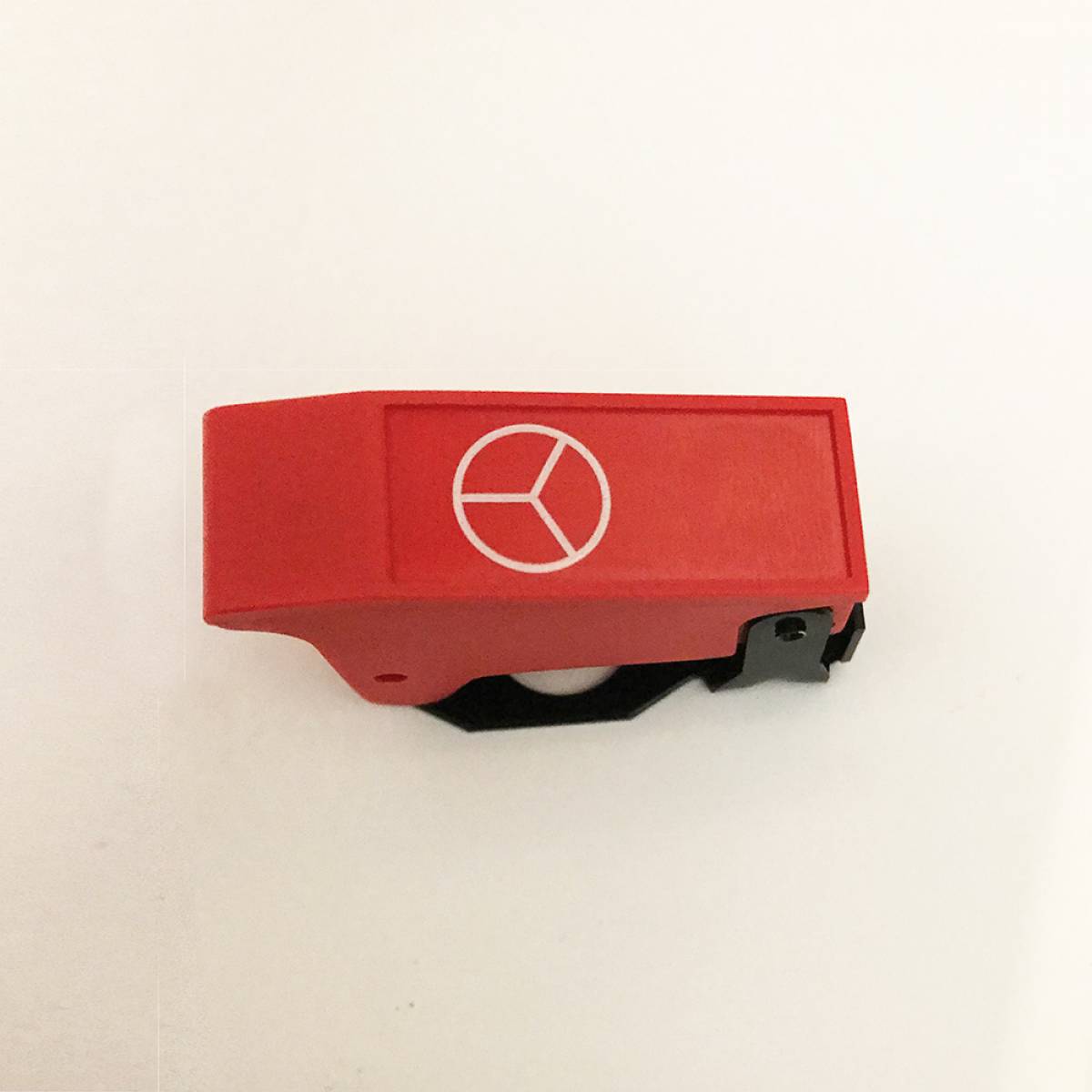

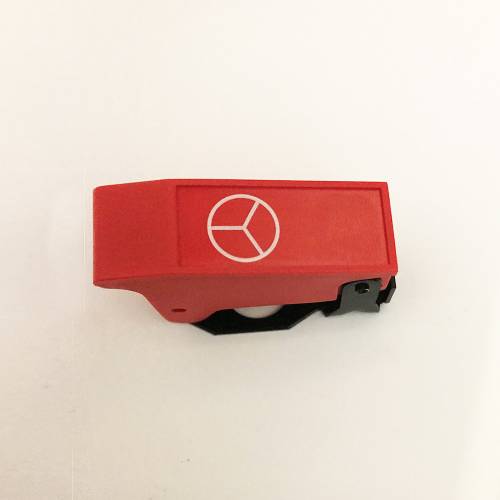

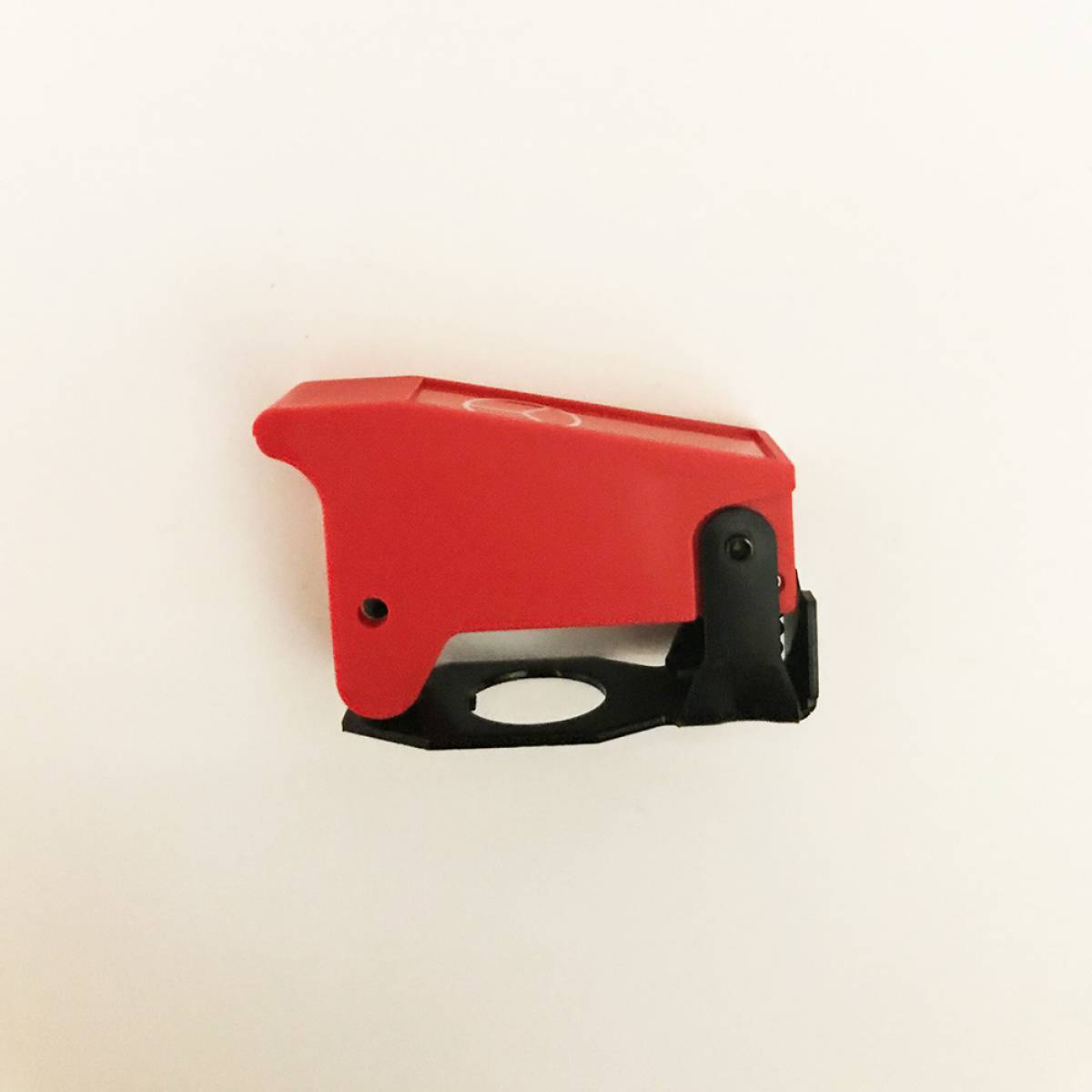

26PN CE Symbolized Toggle Guard
Switch guards prevent any inadvertent lever operation. When the guard is raised,
the lever can be operated freely. When the guard is fully depressed,
the lever is reset/locked in a stable position.
They are designed for use on switches with Ø 11,9 (.468) or
Ø 12 (.472) threaded bushing and lever length 17,5 (.688) outside bushing.
MAIN FEATURES :
Models for 2 or 3 positions switches
1,5mm holes for wiring a seal optional
Note : For correct switch operation, the switch guard should be adjusted properly by means of 2 nuts.
