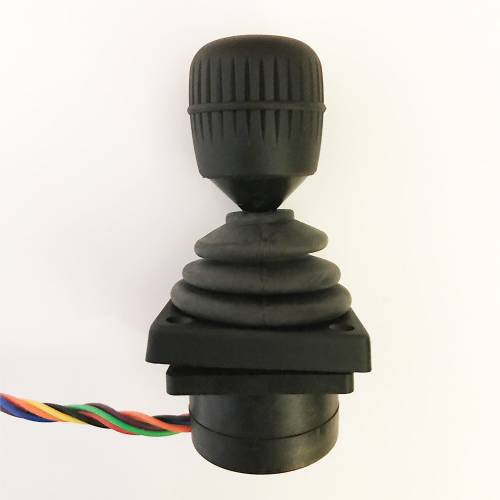

APEM 3000 Series 3 Axis Hall Effect Joystick

The 3000 Series is the very latest generation in high precision
contactless joysticks. With a class leading installed depth of
<20mm, it is available in 1,2, or 3 axis formats. Long trouble-free life
is assured with the latest Hall effect technology, providing
a range of analog signals or custom PWM output options.
The 3000 Series also delivers a radically improved mechanism construction
that is specifically designed for increased robustness, strength and performance.

MAIN FEATURES
Class leading installed depth <20mm
Hall effect sensing
1,2, or 3 axis
5V or 3.3V operation
EMC Shielded
Analog or PWM outputs
Next generation metal mechanisms
Dual outputs available
230.00 €
Piece
Piece Unit price Total
10 150.00 € 1,500.00 €
25 145.00 € 3,625.00 €
50 135.00 € 6,750.00 €
100 125.00 € 12,500.00 €
250 120.00 € 30,000.00 €
500 110.00 € 55,000.00 €
1000 100.00 € 100,000.00 €
Property Name Property Value
SERIES 3000
CONFIGURATION Standard
GAIN ±40%xV
LIMITER Square
HANDLE Third Axis
BEZEL Square (drop-in)
MODIFIER None
We'll Call You


Thank you,
We will contact you as soon as possible

Send
  • GENERAL SPECIFICATION
    • Life Cycles: 10,000,000 cycles (5,000,000 for 3 axis joysticks)
    • Seal Above Panel: IP65 – Neoprene boot fitted as standard

    ENVIRONMENTAL SPECIFICATIONS
    • Operating Temperature: -25ºC to 70ºC (-13ºF to 158ºF)
    • Storage Temperature: -40ºC to 70ºC (-40ºF to 158ºF)
    • EMC Emission: Complies with EN 61000-6-3:2001, CISPR 22:2005, Class B 30MHz–11GHz
    • ESD: Complies with EN61000-4-2 (extended) ±8KV (20 contacts) & ±15KV (20 air discharges)
    • EMC Immunity: 100V/m, 80MHz-2.7GHz, 1KHz 80% sine wave modulation, EN 61000-4-3 (extended)
    • Vibration: 100Hz – 200Hz @ 0.13g /Hz, total 3.6gRMS (1 Hour in each of the three mutually perpendicular axis)

    ELECTRICAL SPECIFICATIONS
    • Gain (Output Voltage Span): ±10% x V to ±50% x V
    • Output at Center: V/2 ±(5% x Gain)
    • Power Supply: 5V ±0.5V Transient free (Configs 1, 3, 4 & 5) or 3.3V ±0.1V (Config 2)
    • Center Tap Impedance: 1K1
    • Center Detect Output: Pulled high within joystick via 2K2 to +V, and smoothed to 0V with 100nF
    • Sensor Type: Hall effect
    • Current Consumption: 5V <13mA (Two axis) <20mA (Three axis) 3.3V <24mA (Two axis) <40mA (Three axis)
    • Loads: Minimum 10K, preferred 100K+

    MATERIALS
    • Shaft - Stainless Steel
    • Boot - Neoprene
    • Others - Brass, Nylon, ABS

    MECHANICAL SPECIFICATIONS
    • Weight: 100g (0.20lb) nominal
    • Breakout Force: 1.3N (2.86lbf)
    • Mechanical Angle of Movement:
