Description
  • Brand APEM
  • Product Code3536021ND002
  • Stock StatusPre-order
  • Stock0

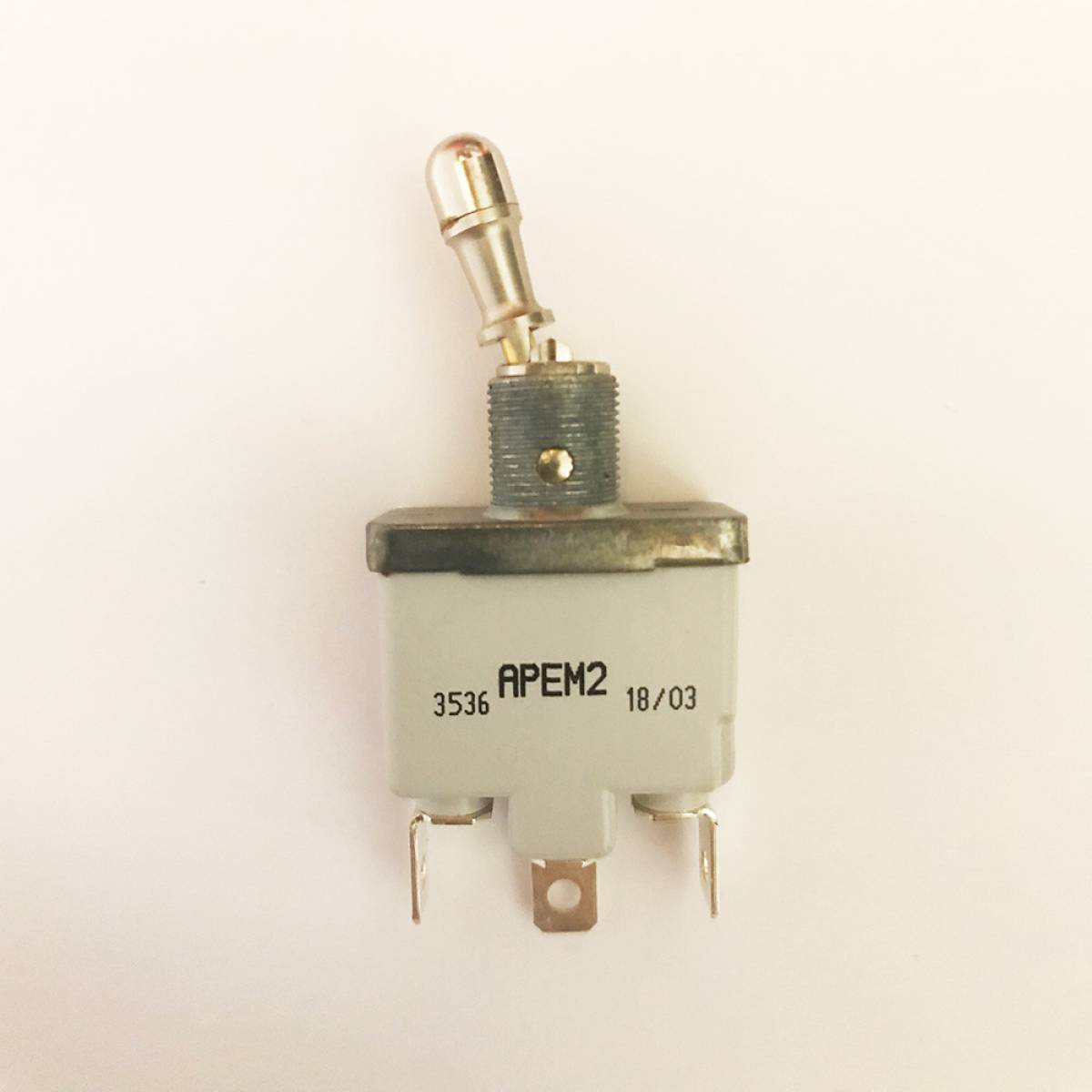

APEM 3500 Series Single Pole Toggle Switch

1 and 2 pole configurations available with solder lug, screw or quick connect terminals.
Toggle switches designed for outdoor applications. Frontal sealing to IP67 and IP69K
by a silicone membrane. Rear sealing to IP64 provided by moulded-in terminals.

Main features

Completely sealed switches withstanding 0.1 bar pressure
Frontal sealing to IP67 and IP69K by a silicone membrane (for sealed panel mounting, add washer U60)
Rear sealing to IP64 provided by moulded-in terminal inserts
Approved to European standards CECC 96000
3 types of terminals
Many lever styles available
64.20 €
Piece
Piece Unit price Total
Property Name Property Value
SERIES 3500
NUMBER OF POLES Single Pole
ELECTRICAL FUNCTIONS ON - ON
TERMINALS Solder lug/quick-connect
LEVER STYLES Standard, length 17.5 mm (.688) or locking, length 20 mm (.787)
LEVER FINISH Bright nickel
LEVER LOCKING STYLES Locked out of center position
AGENCY APPROVALS NONE
ACCESSORIES 2 hex nuts, 1 locking ring and 1 lockwasher (non-sealed mounting)
LOCKING LEVER SPECIAL FINISH NONE
We'll Call You


Thank you,
We will contact you as soon as possible

Send
  • GENERAL SPECIFICATION
    • Mechanical life: 40,000 cycles
    • Torque: 2 Nm (1.47 Ft.lb) max. applied to nut

    ENVIRONMENTAL SPECIFICATIONS
    • Operating temperature: -40 °C to +85 °C (-40 °F to 185 °F)
    • Moisture resistance: 56 days

    ELECTRICAL SPECIFICATIONS
    • Initial contact resistance: 10 m? max. at 1 A 2 VDC
    • Insulation resistance: 1,000 M?
    • Dielectric strength: 2,500 Vrms 50 Hz min. between terminals
    3,000 Vrms 50 Hz min. between terminals and frame

    MATERIALS
    • Case: mineral filled polyester UL94-V0
    • Bushing and cover: zamak
    • Actuator: brass, nickel or chrome plated, or anodized aluminum
    • Contacts: silver alloy

    APPROVALS
    CECC
