Description
  • Brand APEM
  • Product Code3649NF
  • Stock StatusPre-order
  • Stock0

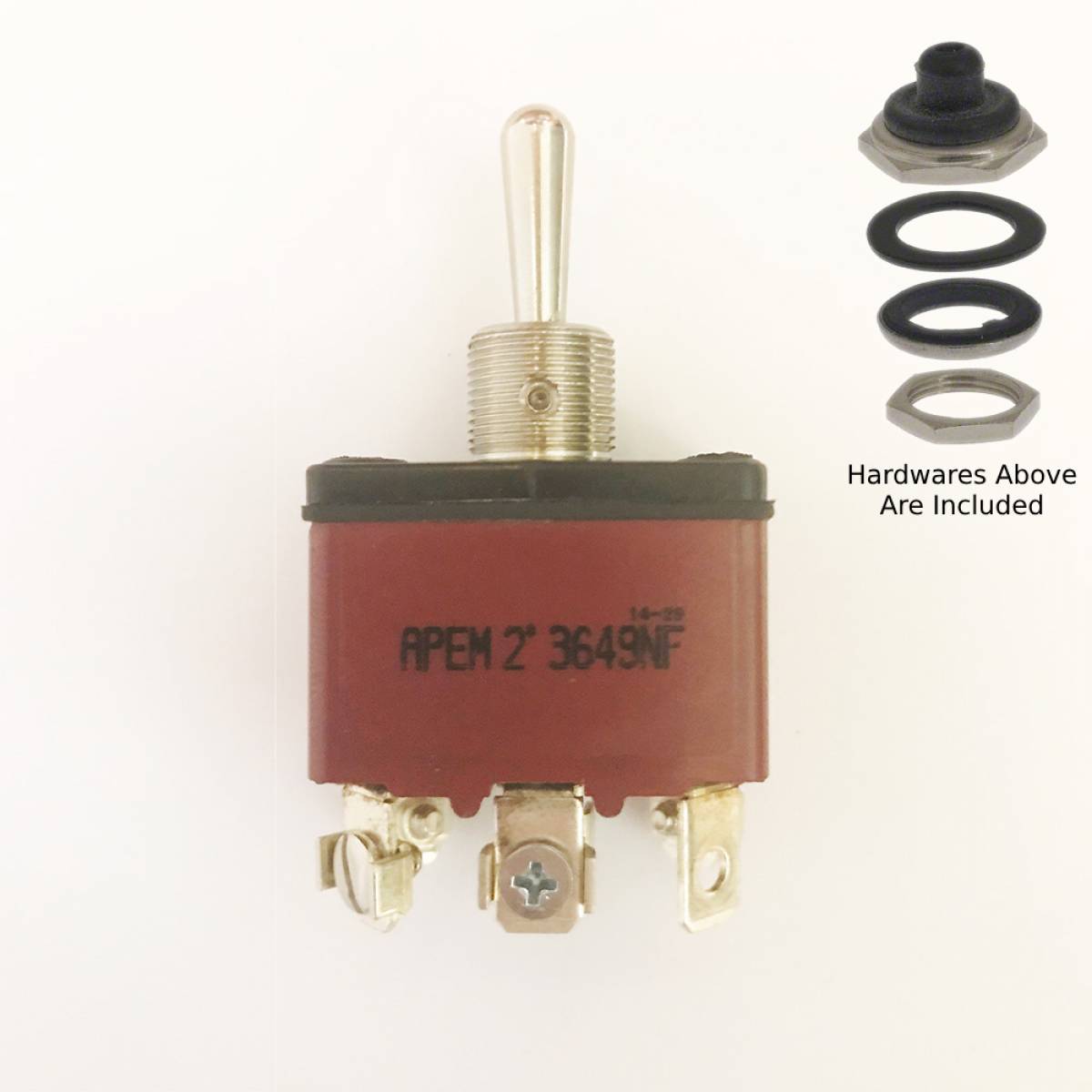

APEM 3600NF Series Double Pole ONOFFON Toggle Switch

Sealed industrial toggle switches for outdoor applications. The 3600NF toggle switches are in 1 and 2 pole configurations.

MAIN FEATURES
Solder lug, quick-connect or screw terminals
Solid silver contacts
O-ring seal, molded–in terminals
12 amp rating
UL approval on select models
numerous electrical configurations
176.54 €
Piece
Piece Unit price Total
25 19.62 € 490.50 €
100 16.03 € 1,603.00 €
250 14.22 € 3,555.00 €
500 13.88 € 6,940.00 €
750 13.60 € 10,200.00 €
1000 12.52 € 12,520.00 €
Property Name Property Value
SERIES 3600NF
NUMBER OF POLES Double Pole
ELECTRICAL FUNCTIONS ON OFF ON
TERMINALS Screw
We'll Call You


Thank you,
We will contact you as soon as possible

Send
  • GENERAL SPECIFICATION
    • Sealing to IP67 according to IEC 60529
    • Torque: 1.50 Nm (1.10 Ft.lb) max. applied to nut
    • Panel thickness: 2 mm (.079) max. with all accessories

    ENVIRONMENTAL SPECIFICATIONS
    • Operating temperature: -40°C to +85°C (-40°F to 185°F)

    ELECTRICAL SPECIFICATIONS
    • Max. current/voltage rating with resistive load: 12A 28VDC
    • Initial contact resistance: 10 m? max.
    • Insulation resistance: 1,000 M? min. at 500VDC
    • Dielectric strength:
    2,500 Vrms 50 Hz min. between terminals
    3,000 Vrms 50 Hz min. between terminals and frame
    • Electrical life: 10,000 cycles at full load

    MATERIALS
    • Case: phenolic resin
    • Actuator: brass, nickel plated
    • Bushing: brass, nickel plated
    • Contacts: solid silver

    APPROVALS
    UL
