| Piece |
| Piece | Unit price | Total |
|---|---|---|
| 20 | 14.98 € | 299.60 € |
| 100 | 12.24 € | 1,224.00 € |
| 260 | 10.86 € | 2,823.60 € |
| 500 | 10.60 € | 5,300.00 € |
| 760 | 10.38 € | 7,888.80 € |
| 1000 | 9.56 € | 9,560.00 € |

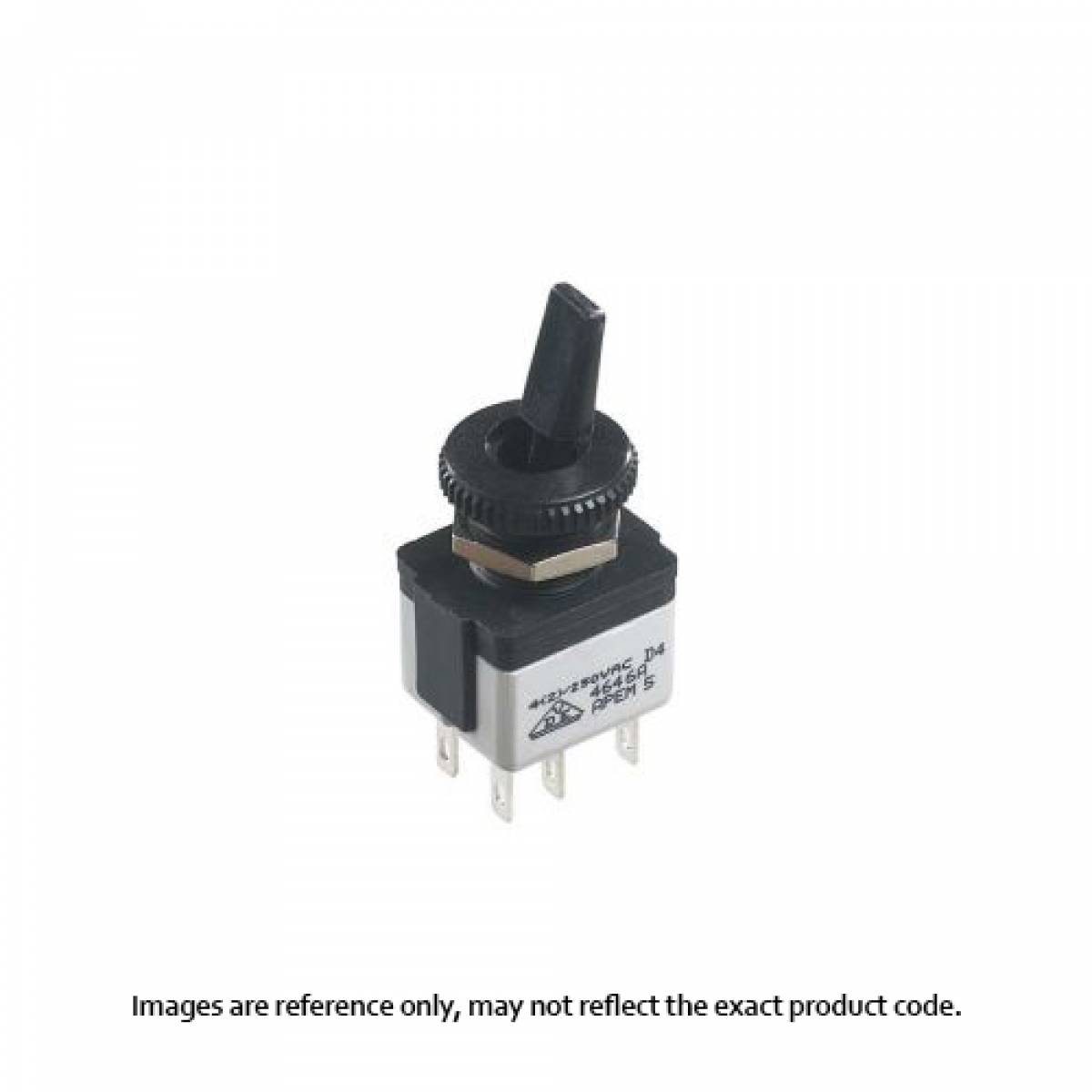

| Property Name | Property Value |
|---|---|
| SERIES | 4600 |
| TERMINALS | Solder lug/quick-connect |
| NUMBER OF POLES | Three Pole |
| ELECTRICAL FUNCTIONS | ON OFF ON |
| CONTACT MATERIALS | Silver |
| ACTUATORS | Round metal lever |
| ACTUATOR COLOR | Green |
GENERAL SPECIFICATION
• Torque: 0.95 Nm (.70 Ft.lb) max. applied to nut
• Panel thickness: 5 mm (.196) between 2 nuts
• Hand soldering: 270 °C max. for 10 seconds max. - iron Ø3 (.118)
ENVIRONMENTAL SPECIFICATIONS
• Operating temperature : -20 °C to +55 °C (-20°F to 131°F)
ELECTRICAL SPECIFICATIONS
• Max. current/voltage rating with resistive load (silver contacts A): 4 A 250 VAC - 6 A 125 VAC
• Initial contact resistance: 10 m? max.
• Insulation resistance: 1,000 M? min. at 500VDC
• Dielectric strength:
2,000 Vrms 50 Hz min. between terminals
2,500 Vrms 50 Hz min. between poles and between terminals and frame
• Electrical life: 10,000 cycles at full load
MATERIALS
• Case: melamine phenolic
• Actuator :
- insulated: polyamide ,6-6
- non-insulated: brass, nickel plated
• Bushing:
- insulated: polyamide 6-6
- non-insulated: brass, nickel plated
• Contacts: silver
APPROVALS
CSA UL VDE
