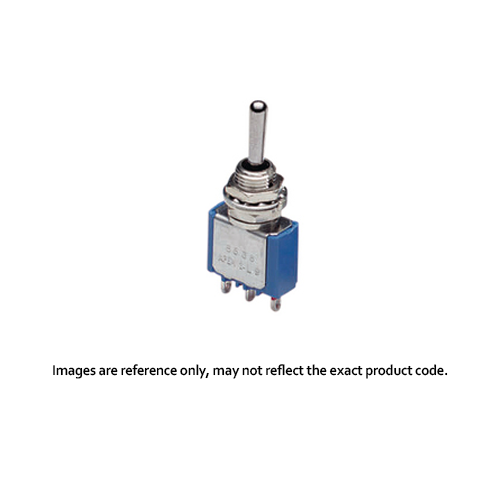

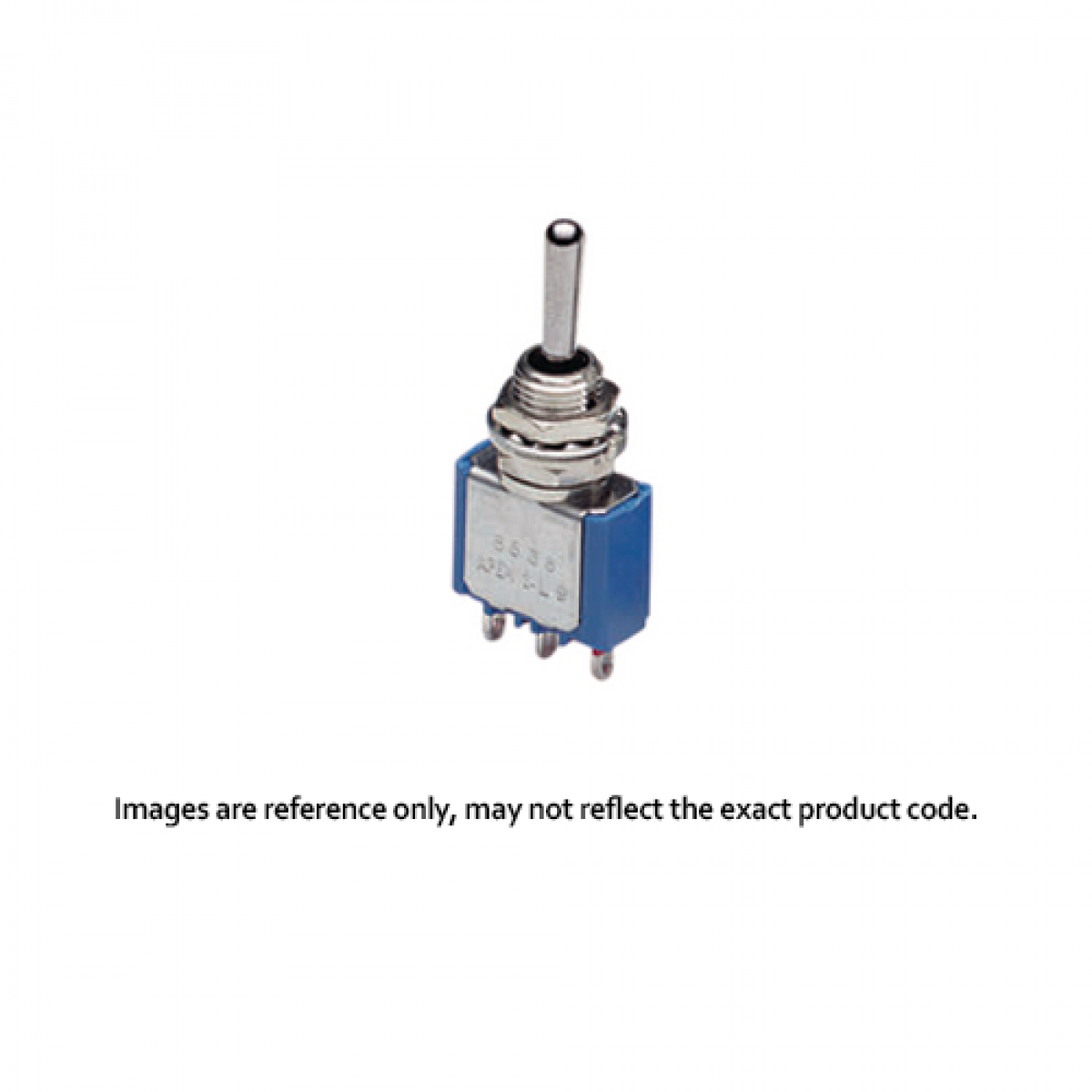

APEM 5000 Series Single Pole ONON Toggle Switch

The widest range in miniature toggle switches diameter 6,35 mm available in a wide range models & amp options..

MAIN FEATURES
17 actuators including toggles, paddle levers and locking levers in different lengths.
5 contact materials from dry circuit to 6A 125VAC and high inrush up to 120A 2 ms.
8 functions including maintained and momentary versions
1 to 4 pole configurations.
12 terminal types including 9 for PC board mounting. Other types include quick-connect and wire-wrap.
3 types of finish including military black
4 approvals (UL - CSA - VDE - CECC)
4 types of sealing for terminal or front panel requirements.
Numerous accessories available for actuator and bushing options.
6.70 €
Piece
Piece Unit price Total
10 4.02 € 40.20 €
25 3.35 € 83.75 €
50 2.80 € 140.00 €
100 2.20 € 220.00 €
250 2.00 € 500.00 €
500 1.80 € 900.00 €
1000 1.60 € 1,600.00 €
Property Name Property Value
SERIES 5000
TERMINALS AND BUSHINGS Straight PC terminals, 5.08 (.200) terminal spacing
NUMBER OF POLES Four Pole
TERMINALS Solder lugs or straight PC depending on model
CONNECTIONS FOR FUNCTION 4 Not Function 4(See Sheet)
MOMENTARY FOR FUNCTION 4 Other Options(see sheet)
FINISH Nickel plated
SEALING No sealing except where standard
FLUORESCENT TIP None
LEVERS 10.5 (.413) (threaded bushing or plain bushing)
We'll Call You


Thank you,
We will contact you as soon as possible

Send
  • GENERAL SPECIFICATION
    • Torque: 1,25 Nm (.922 Ft.lb) max. applied to nut
    • Panel thickness: 2.5 mm (.098) with 2 nuts - 4 mm (.157) with 1 nut
    • Low level or mechanical life: 100,000 cycles

    ENVIRONMENTAL SPECIFICATIONS
    • Operating temperature: -40°C to +85°C (-40°F to 185°F)

    ELECTRICAL SPECIFICATIONS
    • For inductive, lamp or capacitive load, consult factory.
    • Initial contact resistance: 10 mΩ max.
    • Insulation resistance: 1,000 MΩ min. at 500VDC
    • Dielectric strength:
    1,000 Vrms 50 Hz min. between terminals
    1,500 Vrms 50 Hz min. between poles
    1,500 Vrms 50 Hz min. between terminals and frame
    • Contact bounce: 2 ms max.
    • Electrical life at full load:
    50,000 cycles for single and double pole 40,000 cycles for 3 pole
    30,000 cycles for 4 pole

    MATERIALS
    • Case: diallylphthalate (DAP) or high temperature plastic material (UL94-V0)
    • Actuator: brass, nickel plated
    • Paddles: UL94HB polyamide
    • Lever caps: vinyl
    • Bushing: brass, nickel plated
    • Housing: stainless steel or steel tin plated
    • Contacts A: silver
    AD: silver, gold plated
    CD: brass, gold plated
    X814: for peak currrents, see “Special options”.
    • Terminal seal: époxy

    APPROVALS
    CECC CSA UL
