635H/2

Print this page
Description
  • Brand APEM
  • Product Code635H2
  • Stock Status917
  • Stock917

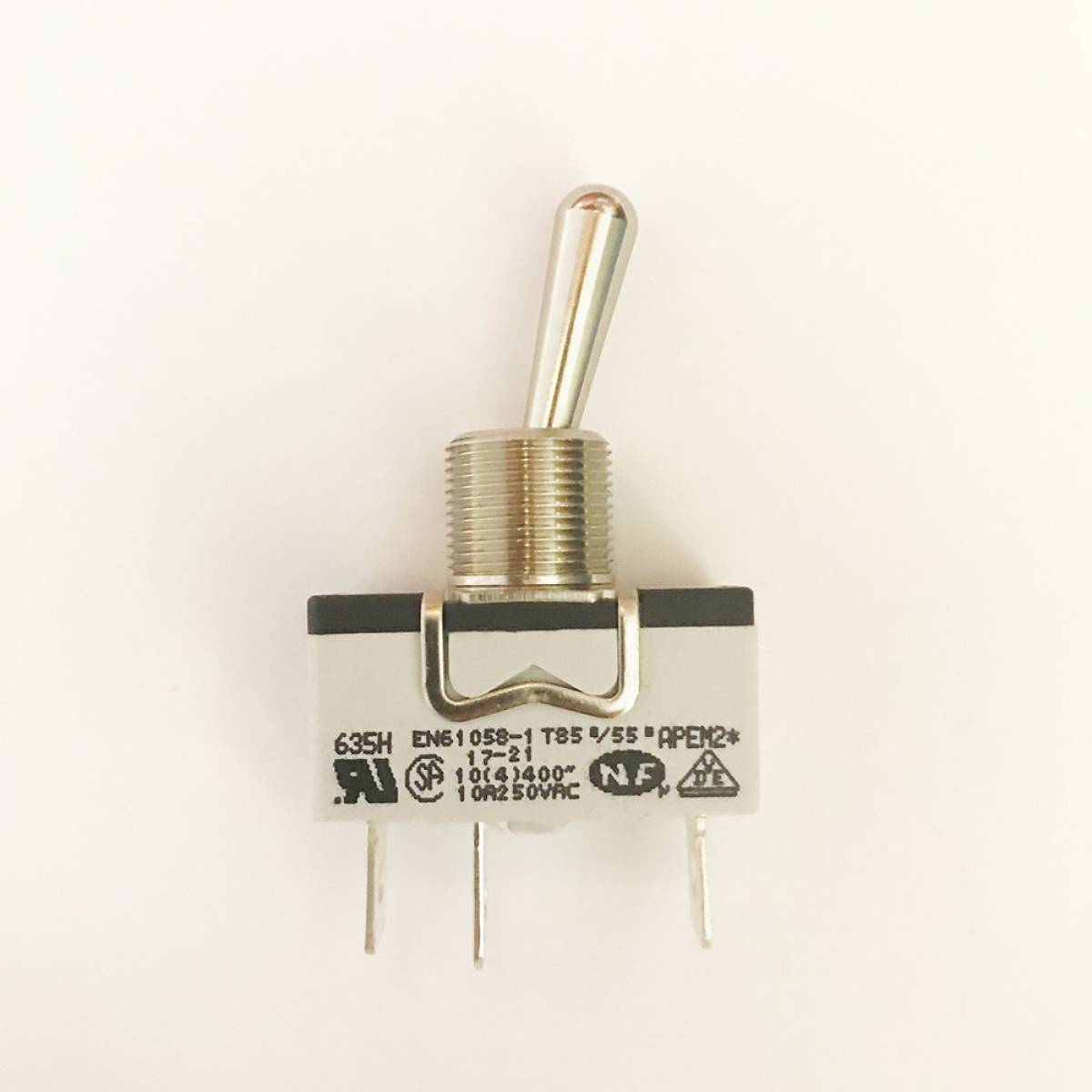

APEM 600H Series Single Pole ONMOM Toggle Switch

Industrial toggle switches with high amperage and metal or insulated lever. The 600 series
are manufactured from a single piece of metal, increasing the mechanical strength.
MAIN FEATURES
Construction: Terminal and contact support are manufactured from a single piece of metal. The contacts are
resistance-welded to the terminal for increased mechanical strength.
Rating: These switches are suitable for motor loads and power applications up to 15 A 250 VAC or 10 A 400
VACMetal or insulated lever
UL, CSA and NF-VDE (EN 61058-1) approved
44.65 €
Piece
Piece Unit price Total
25 4.96 € 124.00 €
100 4.05 € 405.00 €
250 3.60 € 900.00 €
500 3.51 € 1,755.00 €
750 3.44 € 2,580.00 €
1000 3.17 € 3,170.00 €
Property Name Property Value
SERIES 600H
NUMBER OF POLES Single Pole
ELECTRICAL FUNCTIONS MOM - ON
CONTACT For H-NH Series
ACTUATOR AND TERMINALS Metal lever, solder lug/quickconnect terminals
We'll Call You


Thank you,
We will contact you as soon as possible

Send
  • GENERAL SPECIFICATION
    • Torque: 1.50 Nm (1.10 Ft.lb) max. applied to nut
    • Panel thickness: 4.5 mm (.177) max. between 2 nuts

    ENVIRONMENTAL SPECIFICATIONS
    • Operating temperature : -20 °C to +55 °C (-20 °F to 131 °F)

    ELECTRICAL SPECIFICATIONS
    • Max. current/voltage ratings: see full data sheet
    • Peak current: 30 A max. during 1/2 sine, 250 VAC
    • Initial contact resistance: 10 m? max.
    • Insulation resistance: 1,000 M? min. at 500 VDC
    • Dielectric strength:
    2,000 Vrms 50 Hz min. between terminals
    2,500 Vrms 50 Hz min. between terminals and frame
    • Electrical life: 10,000 cycles at full load

    MATERIALS
    • Case: polyester UL94-V0
    • Actuator :
    - 600H: brass, nickel plated
    - 600NH: black polyamide
    • Bushing: brass, nickel plated
    • Contacts: silver/nickel alloy

    APPROVALS
    CSA NF UL VDE
