6421A038K

Name: 6421A038K
Brand: APEM
Price: 60877 € EUR
Availability: InStock
Rating: 0 (0 reviews)

Print this page

Description

Brand APEM
Product Code6421A038K
Stock Status7
Stock7

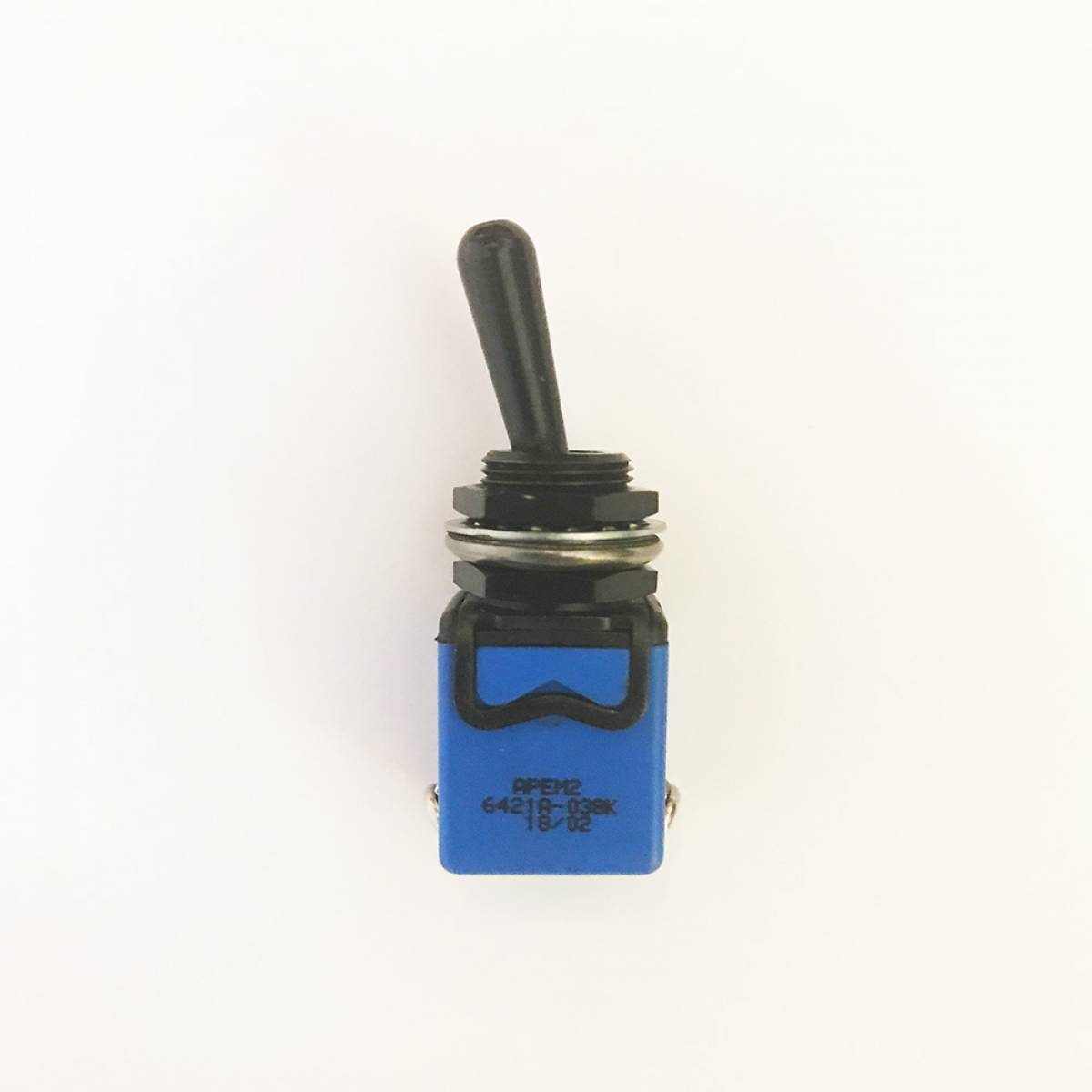

APEM 6000 Series ONOFF Toggle Switch

Industrial toggle switches for military applications available with 1, 2, 3 and 4 poles.
6000 series comes with neoprene protection caps and sealing / locking lever options.

MAIN FEATURES
screw, solder lug or quick connect terminals
silver contacts
matt black finish on actuator and bushing
sealing and locking lever options
neoprene protection caps
rated for up to 7 amps with resistive loads

6421A038K 3D Drawing

6000 Series Datasheet

SERIES

608.77 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total
10	67.64 €	676.40 €
100	55.26 €	5,526.00 €
250	49.04 €	12,260.00 €
500	47.87 €	23,935.00 €
750	46.89 €	35,167.50 €
1000	43.16 €	43,160.00 €

Property Name	Property Value
SERIES	6000
CASE	For single pole (screw terminals compulsory)
NUMBER OF POLES	Single Pole
ELECTRICAL FUNCTIONS	ON - OFF (SP ONLY)
FINISH	Black lever with fluorescent tip
SEALING	Front panel sealing by one O-ring and sealing washer
TERMINALS	Screw

We'll Call You

Tags: apem 6421A038K 6000 series toggle switch

Description

GENERAL SPECIFICATION
• Torque: 1.50 Nm (1.10 Ft.lb) max. applied to nut
• Panel thickness: 5 mm (.196) max.
ENVIRONMENTAL SPECIFICATIONS
• Operating temperature : -40 °C to +85 °C (-40 °F to 185 °F)
ELECTRICAL SPECIFICATIONS
• Initial contact resistance: 10 m? max.
• Insulation resistance: 1,000 M? min. at 500 VDC
• Dielectric strength:
2,000 Vrms 50 Hz min. between terminals
3,000 Vrms 50 Hz min. between terminals and frame
• Electrical life: 10,000 cycles at full load
MATERIALS
• Case: diallylphthalate (DAP)
• Actuator: brass, chrome plated, black
• Bushing: brass, chrome plated, black
• Contacts: A : silver
