664103LM

Name: 664103LM
Brand: APEM
Price: 34227 € EUR
Availability: OutOfStock
Rating: 0 (0 reviews)

Print this page

Description

Brand APEM
Product Code664103LM
Stock StatusPre-order
Stock0

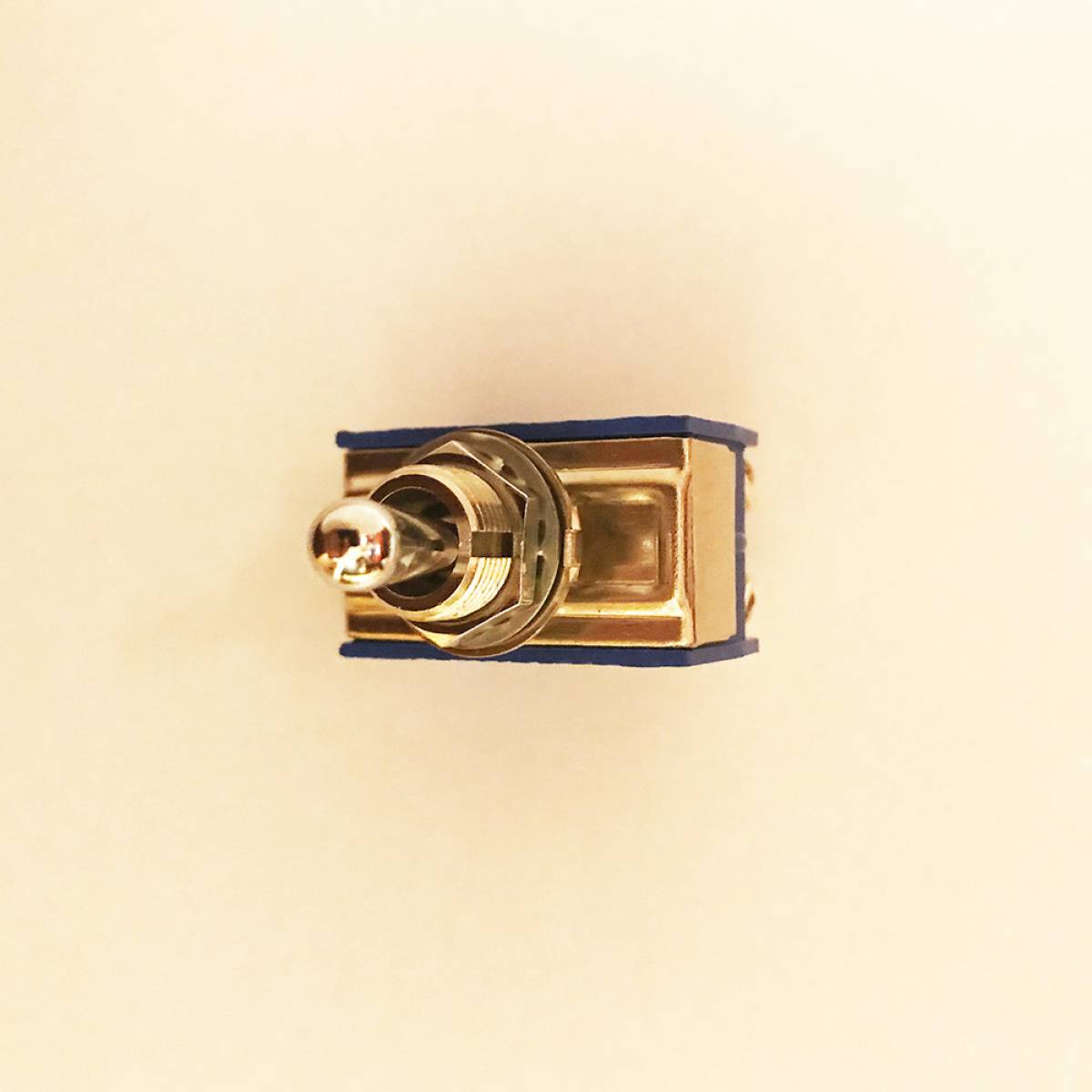

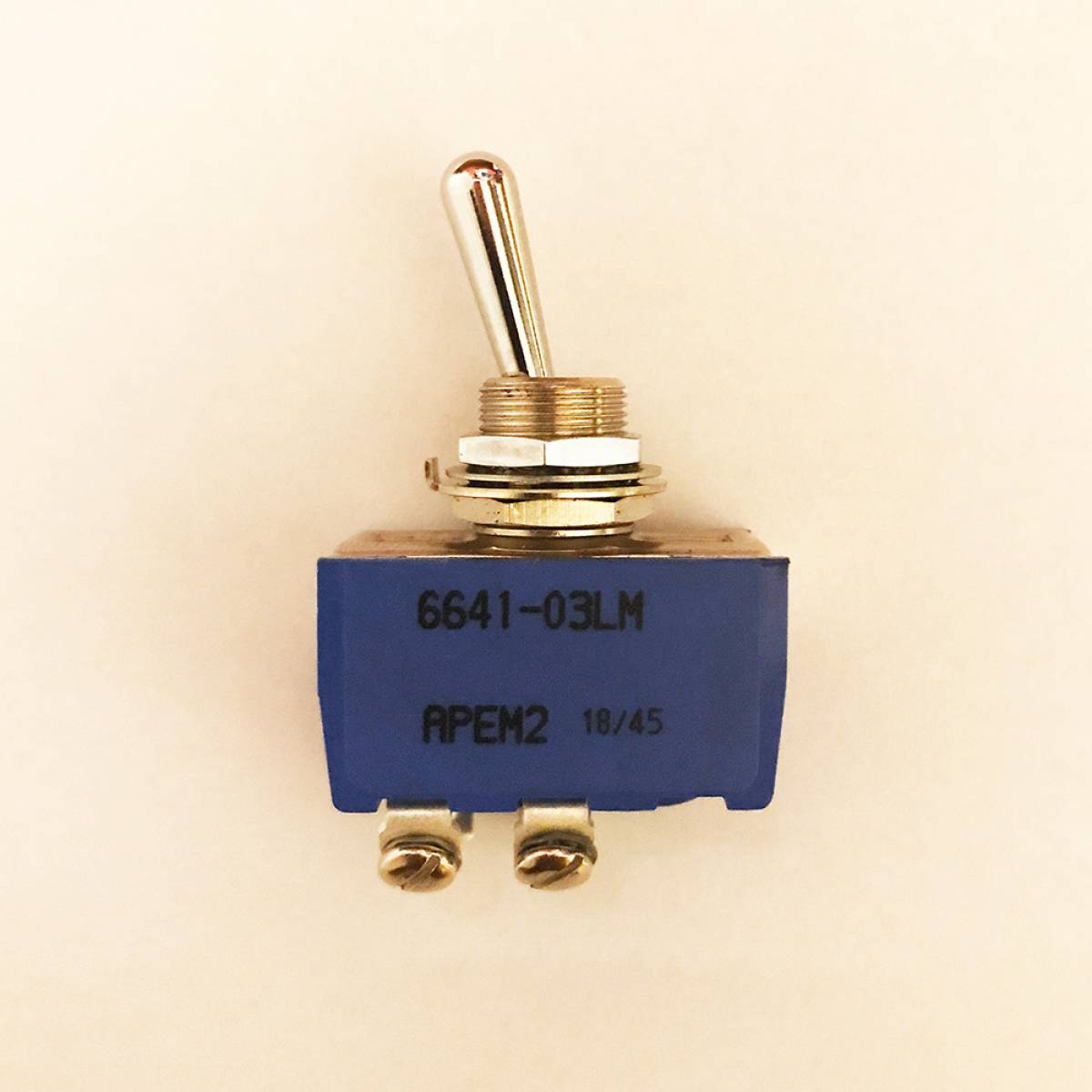

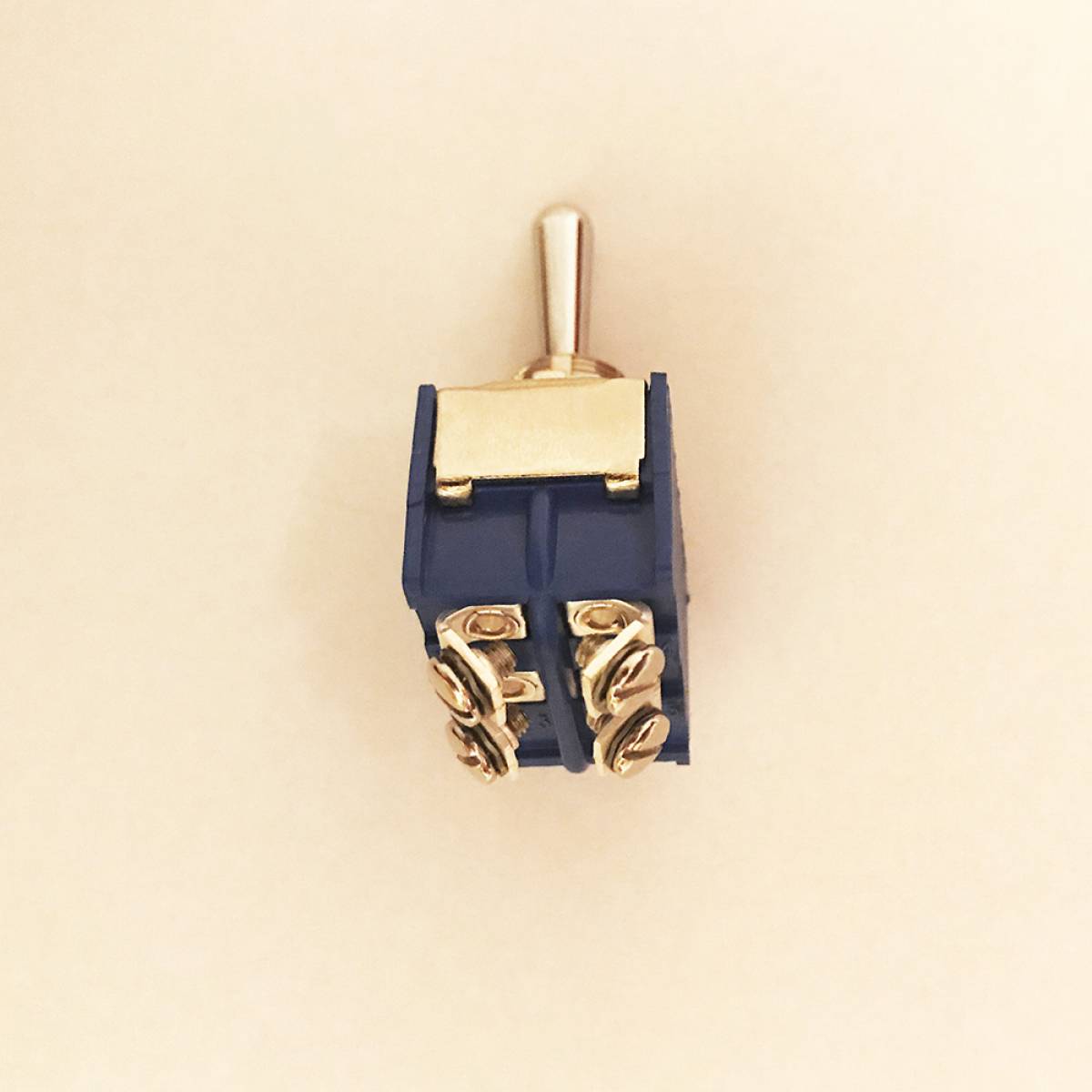

APEM 6000 Series Single Pole ONOFF Toggle Switch

Industrial toggle switches for military applications available with 1, 2, 3 and 4 poles.
6000 series comes with neoprene protection caps and sealing / locking lever options.

MAIN FEATURES
screw, solder lug or quick connect terminals
silver contacts
matt black finish on actuator and bushing
sealing and locking lever options
neoprene protection caps
rated for up to 7 amps with resistive loads

6000 Series Datasheet

342.27 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total
10	38.03 €	380.30 €
100	31.07 €	3,107.00 €
250	27.57 €	6,892.50 €
500	26.91 €	13,455.00 €
750	26.36 €	19,770.00 €
1000	24.26 €	24,260.00 €

Property Name	Property Value
SERIES	6000
CASE	For other models
NUMBER OF POLES	Double Pole
ELECTRICAL FUNCTIONS	ON - OFF
FINISH	Nickel plated bushing - lever and upper nut bright chrome plated
TERMINALS	Screw

We'll Call You

Tags: apem 664103LM 6000 series toggle switch

Description

GENERAL SPECIFICATION
• Torque: 1.50 Nm (1.10 Ft.lb) max. applied to nut
• Panel thickness: 5 mm (.196) max.
ENVIRONMENTAL SPECIFICATIONS
• Operating temperature : -40 °C to +85 °C (-40 °F to 185 °F)
ELECTRICAL SPECIFICATIONS
• Initial contact resistance: 10 m? max.
• Insulation resistance: 1,000 M? min. at 500 VDC
• Dielectric strength:
2,000 Vrms 50 Hz min. between terminals
3,000 Vrms 50 Hz min. between terminals and frame
• Electrical life: 10,000 cycles at full load
MATERIALS
• Case: diallylphthalate (DAP)
• Actuator: brass, chrome plated, black
• Bushing: brass, chrome plated, black
• Contacts: A : silver
