Brand KLIXON
Product Code7277220
Stock Status8
Stock8

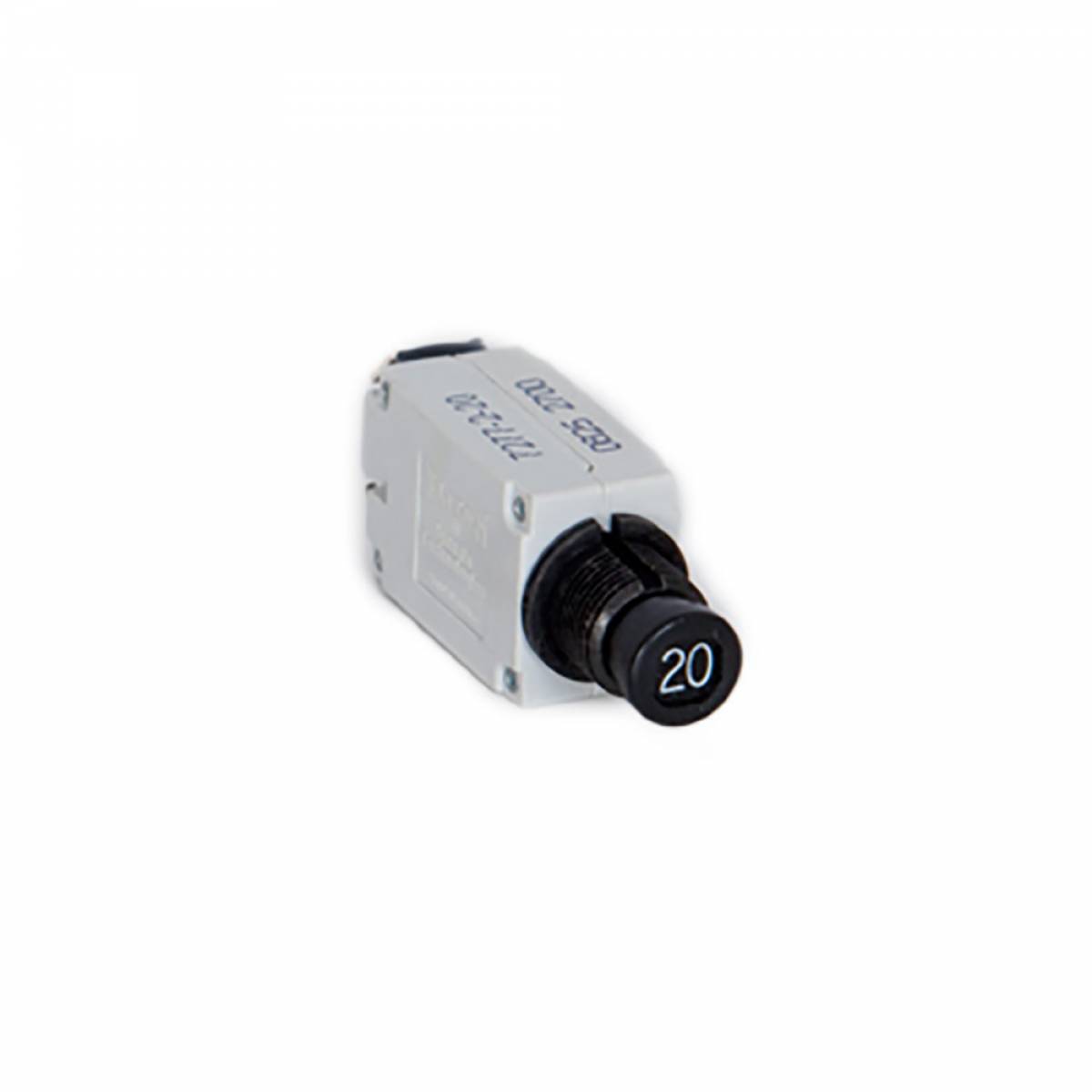

Klixon 7277 Series 20 Amp Circuit Breaker

The military grade version of this circuit breaker is the Klixon® 7274-2 series.
The 7277 and 7274-2 series circuit breakers are physicallyand electrically identical, with the exception that the 7277 has widercalibration limits.

Features
• Miniature size
• Light weight
• Trip–free design
• Current rating: 0.5 to 20 amps
• High vibration resistance
• Options include: dust boot (part #14500-1 fits 15/32 bushing, part
#14500-5 fits 7/16 bushing), auxiliary switch, terminal hardware,
longer push button

7277 Series Datasheet

30.00 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total

Property Name	Property Value

We'll Call You

Description

Vibrations 10G minimum, 50–500 Hz (other vibration levels available)

Mechanical Shock 35G

Acceleration 10G

Weight 28 grams maximum

Interrupt Current

0.50–5 amps: unlimited at 28 VDC

7.50–15 amps: 2,000 amps at 28 VDC

0.50–1.50 amps: unlimited at 120 VAC, 400 Hz

2–5 amps: 800 amps at 120 VAC

400 Hz 7.50–20 amps: 500 amps at 120 VAC, 400 Hz

Endurance 2,500 cycles: 120 VAC, 400 Hz inductive

2,500 cycles: 30 VDC inductive

5,000 cycles: 120 VAC, 400 Hz resistive

5,000 cycles: 30 VDC resistive 10,000 cycles: Mechanical, no load
