Description
  • Brand APEM
  • Product CodeAV9SLD9781002K
  • Stock Status7
  • Stock7

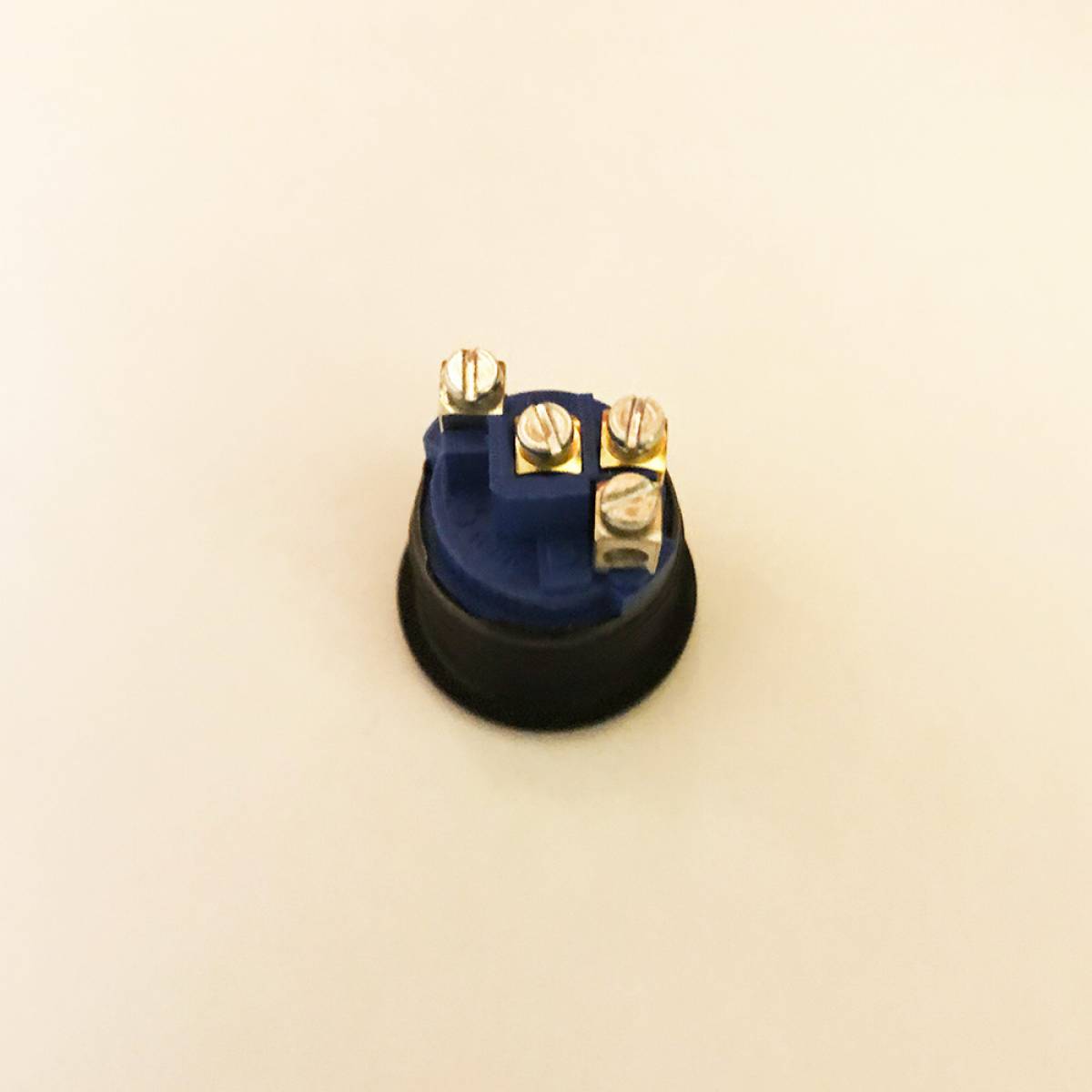

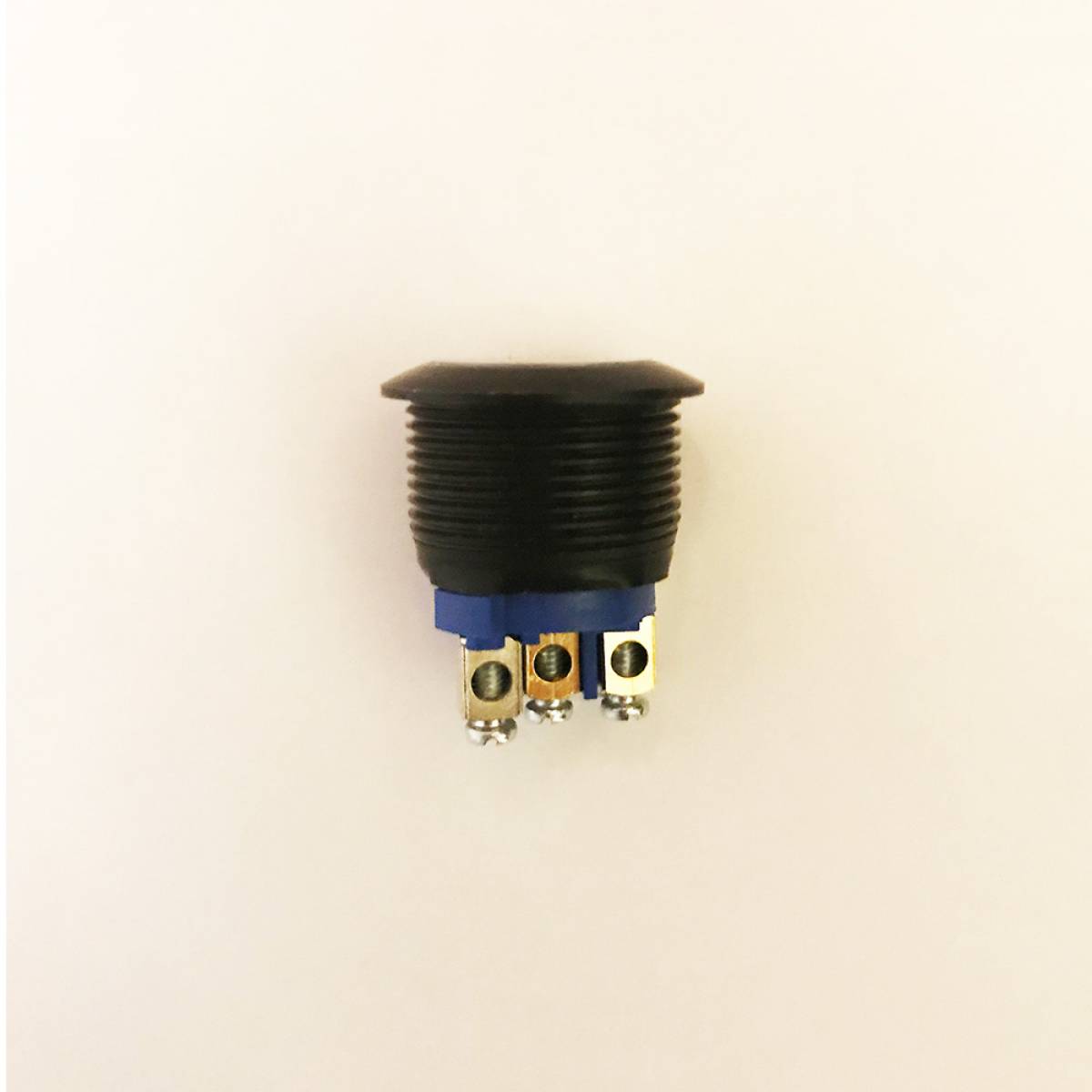

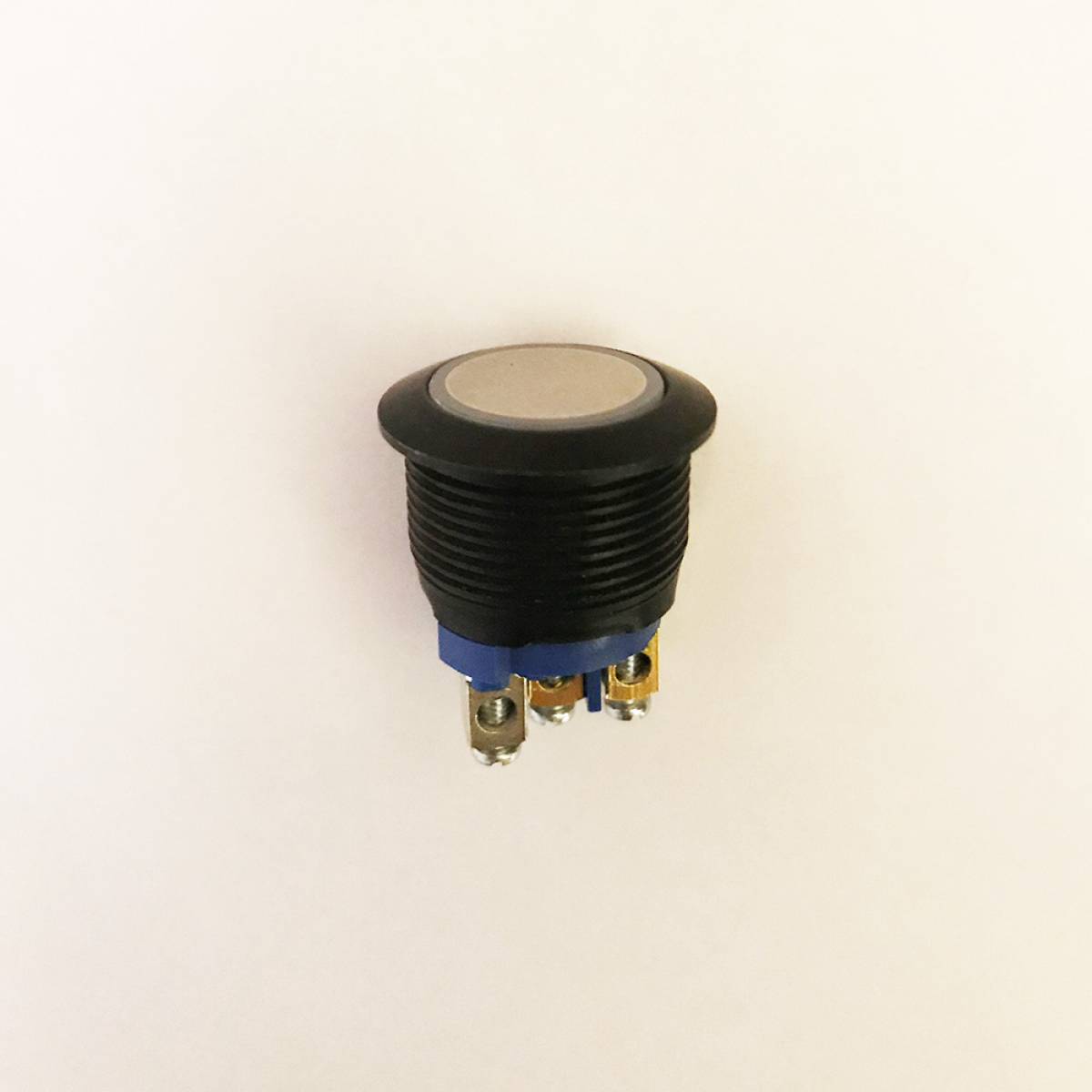

APEM AV Series 19mm Pushbutton with Blue LED

The AV Series pushbuttons offer attractive, robust and durable switches,
available with different bushing diameters, actuator shapes, bushing and actuator materials.
Anti-vandal or security models.

MAIN FEATURES
Security pushbutton switches
Momentary (NO)
Models with flat or curved actuator
Marking available
Optionally sealed to IP65
122.69 €
Piece
Piece Unit price Total
Property Name Property Value
SERIES AV
CONTACTS Silver
BUSHING/ACTUATOR MATERIALS Nickel plated brass / Nickel plated brass
SEALING No sealing
We'll Call You


Thank you,
We will contact you as soon as possible

Send
  • GENERAL SPECIFICATION
    • Travel : 1.60 mm (.063) ± 0.3 mm (.011)
    • Torque : 5 Nm min.- 14 Nm max. applied to nut
    • Panel thickness : 1 (.039) to 6 mm (.236) max.
    • Low level or mechanical life : 1,000,000 cycles
    • Panel cut-out : Ø 16.2 mm (.637)
    • Min. pitch for matrix mounting : 24 mm x 24 mm (.944 x .944) (AV6P & AV6B : 20 mm x 20 mm)

    ENVIRONMENTAL SPECIFICATIONS
    • Operating temperature : -30 °C to +70 °C

    ELECTRICAL SPECIFICATIONS
    • Max. current/voltage rating with resistive load : 200 mA 48 VDC - 100 mA 48 VDC
    • Initial contact resistance : 50 m? max.
    • Insulation resistance : 1,000 M? min. at 500 VDC
    • Dielectric strength : 2,000 Vrms 50 Hz min. between terminals and frame
    • Electrical life :
    50,000 cycles at 200 mA 48 VDC
    100,000 cycles at 100 mA 48 VDC

    MATERIALS
    • Case : PBT
    • Contacts : brass, silver plated (C)
