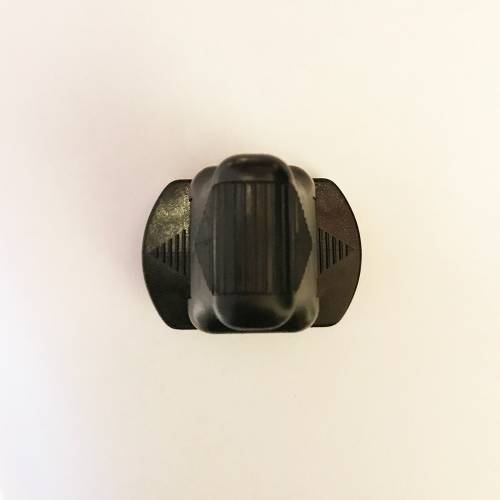

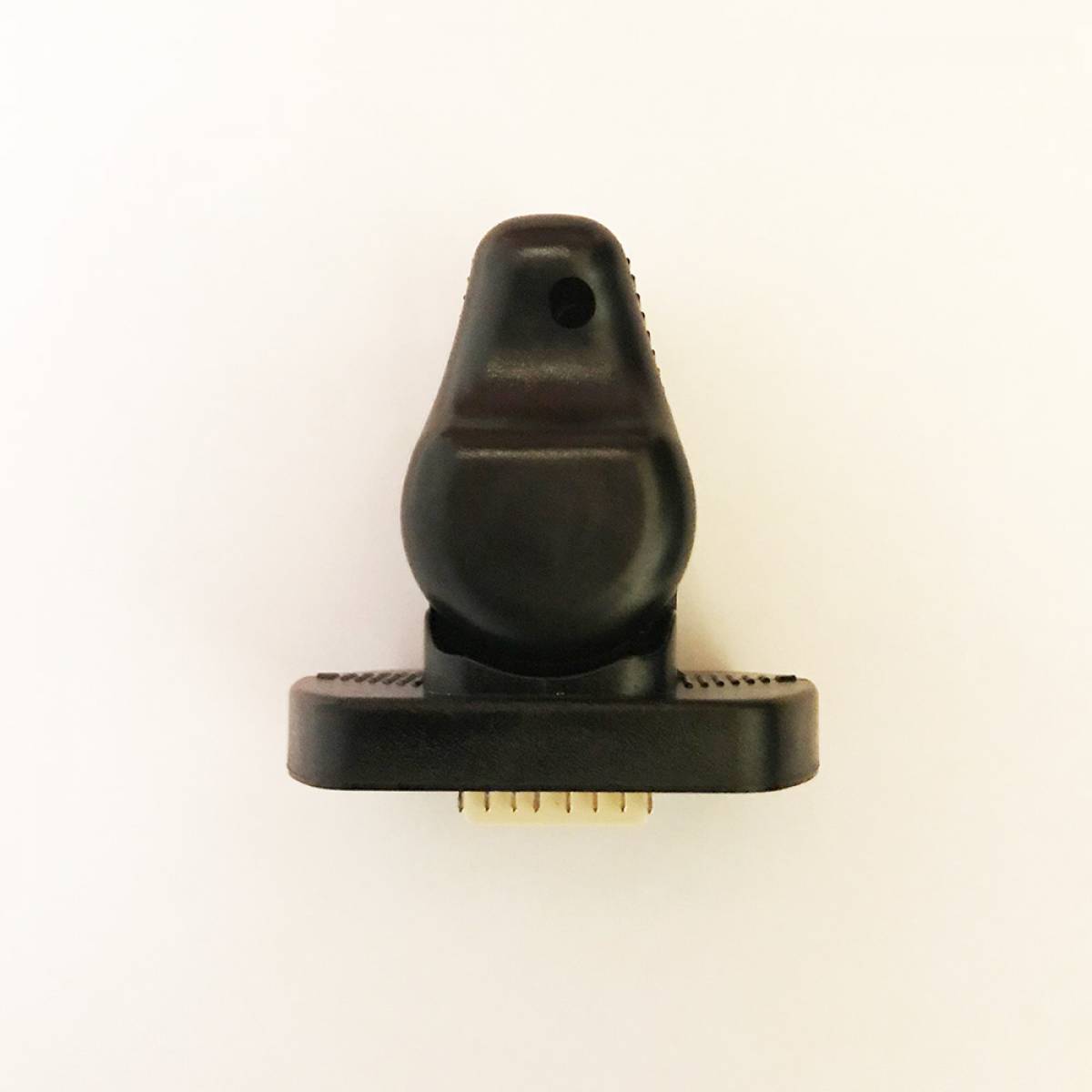

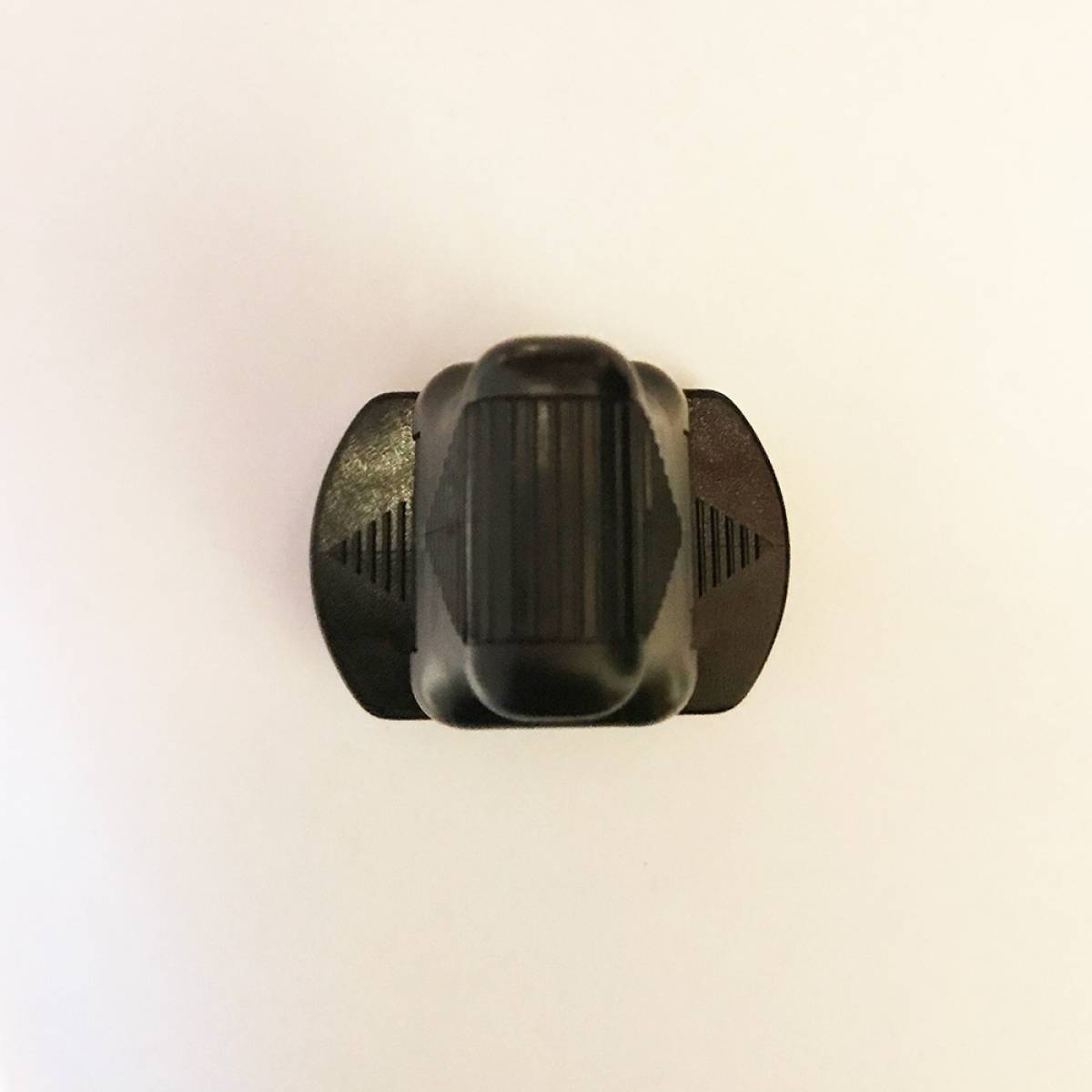

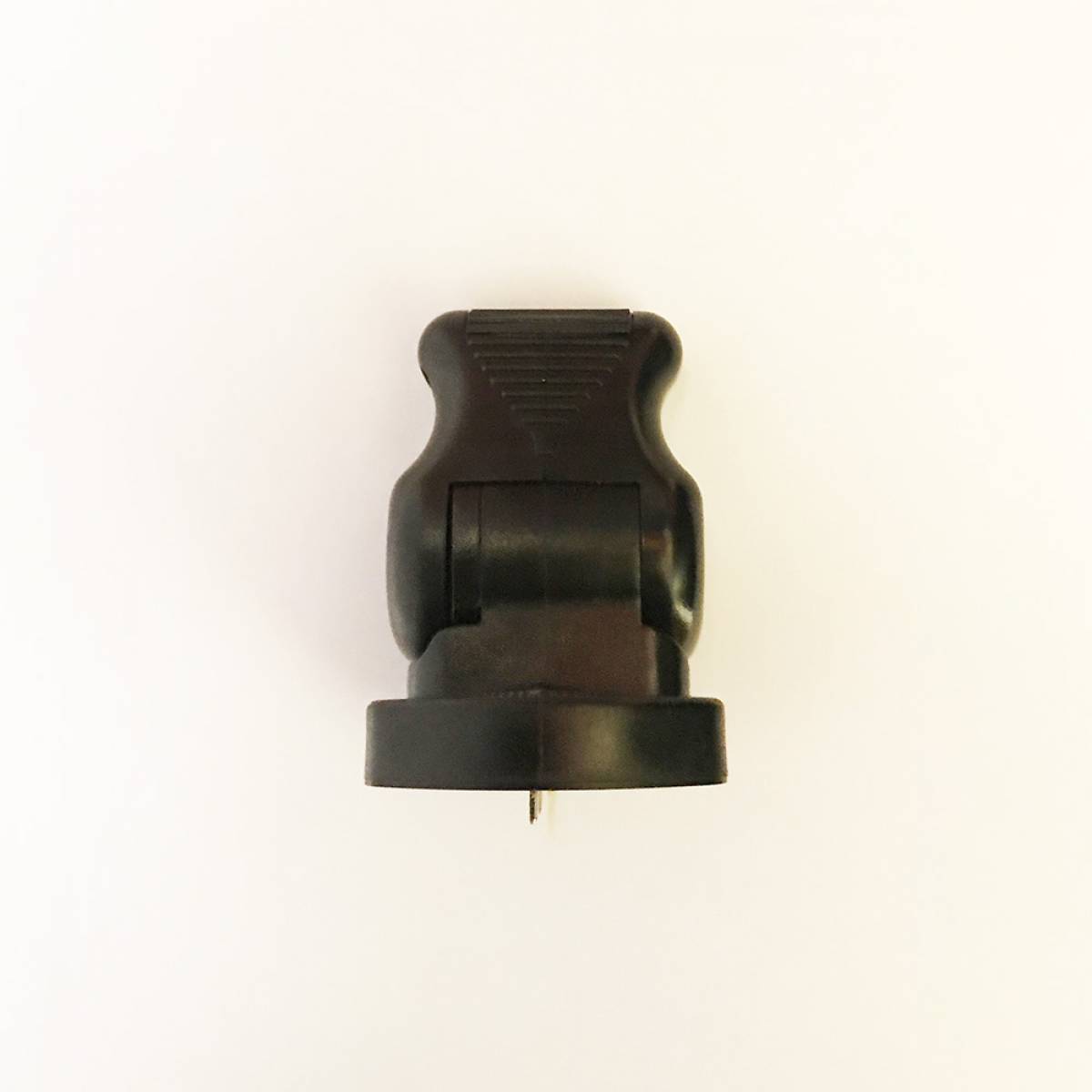

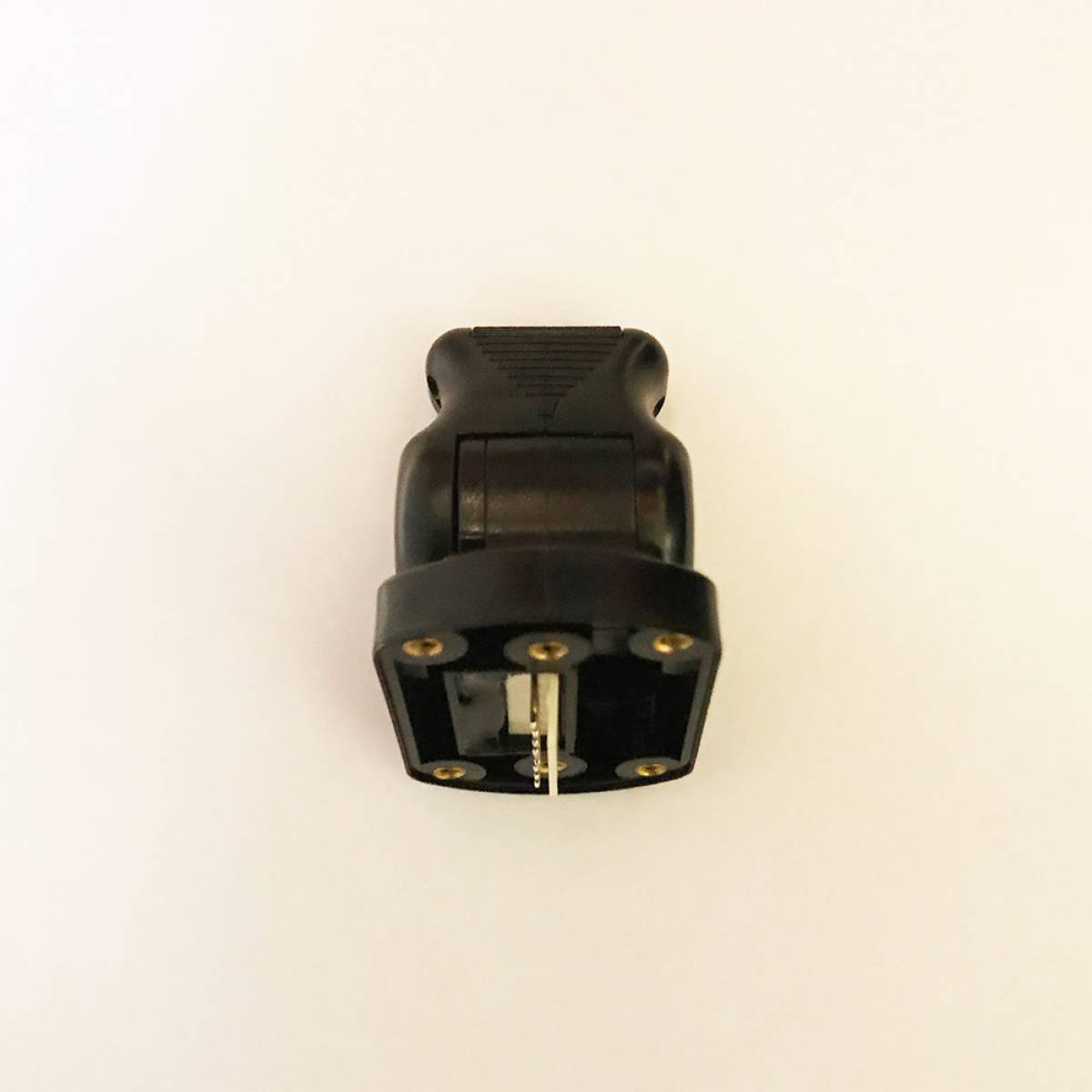

APEM BD Series Single Axis Joystick

The BF / BD Series Paddles are the very latest generation
in high precision contactless controls. It combines the features
of a contactless single axis joystick and a switch, in one controller.
Long trouble-free life is assured with the latest Hall effect technology,
providing a range of analog, switched or custom PWM output options.
The all new design with its innovative mechanism and ergonomic styling
is specifically designed for robustness, strength and performance.
84.00 €
Piece
Piece Unit price Total
Property Name Property Value
SERIES BD
CONFIGURATION Standard Dual Outputs
GAIN ±40%xV
LEVER OPERATION Center Detent
INSERT COLOR Black
SWITCHING POINTS No Switches
MODIFIER None
We'll Call You


Thank you,
We will contact you as soon as possible

Send
  • GENERAL SPECIFICATION
    • Storage: -40°C to 70°C (-40°F to 158°F)
    • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
    • Seal Above Panel: IP67 (Gasket fitted as standard)

    ENVIRONMENTAL SPECIFICATIONS
    • EMC Emissions: Complies with EN 61000-6-3:2001
    CISPR 22:2005 Class B 30MHz - 11GHz
    • Life Cycles: 5 million cycles sprung version only.
    Detents rated to 2 million cycles
    • ESD: Complies with EN61000-4-2 (extended)
    ±8KV (20 contacts) & +/-15KV (20 air discharges)
    • EMC Immunity: 100V/m, 80MHz-2.7GHz,
    1KHz 80% sine wave modulation,
    EN 61000-4-3 (extended)
    • Vibration: 100Hz - 200Hz @ 0.13g²/Hz, total 3.6gRMS
    (1 Hour in each of the three mutually perpendicular axis

    ELECTRICAL SPECIFICATIONS
    • Gain (Output Voltage Span): ±10% x V to ±50% x V
    • Output at Center: V/2 ± (5% x Gain)
    • Power Supply: 5V ±0.5V Transient free
    • Switch Outputs: Open Drain, pulled high within control via 1K5 to 5V, and smoothed to 0V with 100nF
    • Sensor Type: Hall effect
    • Current Consumption: <20mA
    • Loads: Minimum 10K, preferred 100K+

    MATERIALS
    • Materials: Polyetherimide, Polycarbonate,
    Stainless Steel

    MECHANICAL SPECIFICATIONS
    • Weight: 50g
    • Mechanical Operating Angle: ± 25 Degrees
    • Max Load to Mechanism: Vertical: IK08 (BSEN62262:2002); Horizontal: 75N (16.86lbf)
