Description
  • Brand APEM
  • Product CodeCWA0GY1A00A0
  • Stock StatusPre-order
  • Stock0

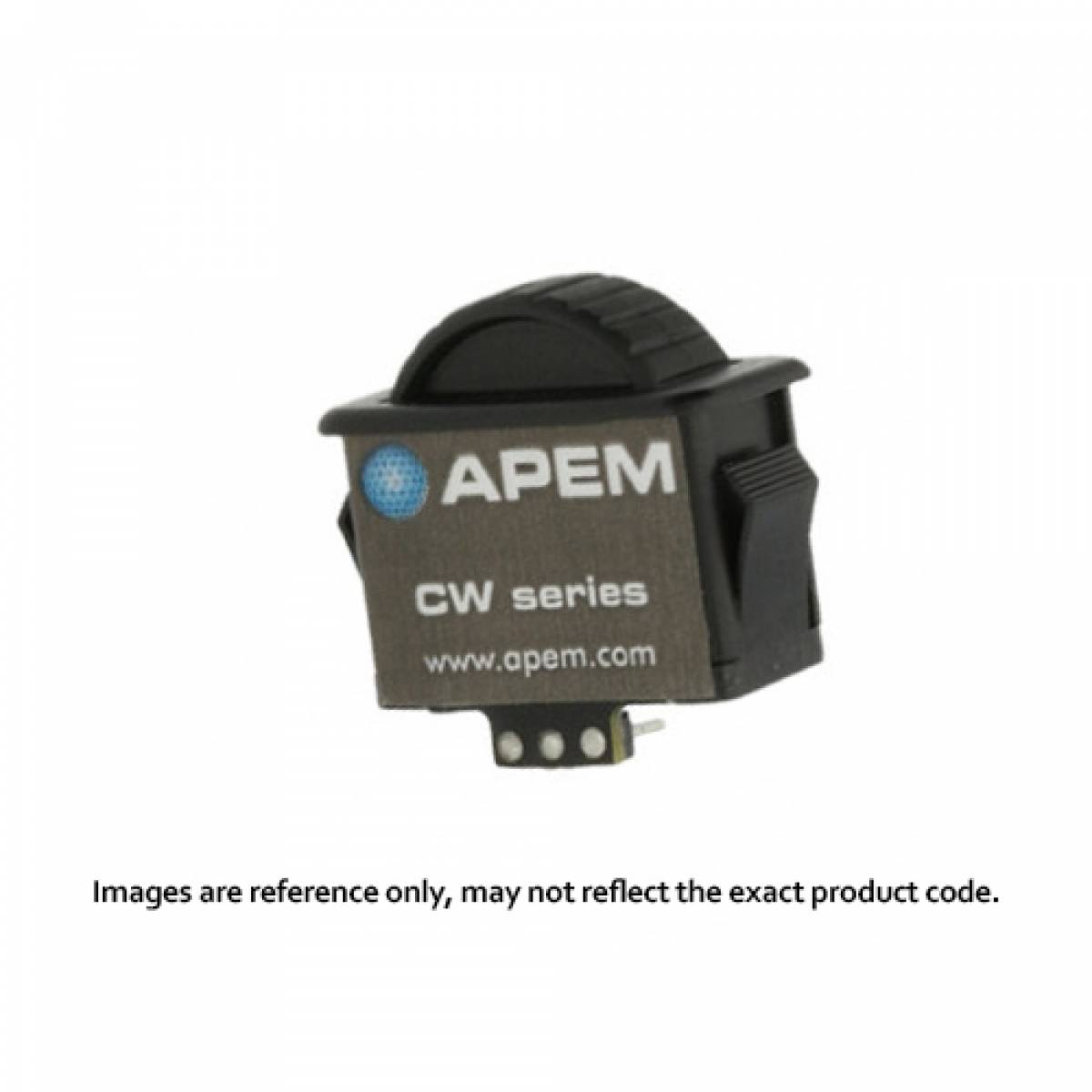

APEM CW Series Mini Hall Effect Joystick

The CW Series is a revolutionary Hall effect control wheel
providing proportional control in one miniature axis.
A spring return device, the CW is available with your choice of
linear output options and wheel colors. Ideal applications include joystick,
"gamepad", armrest and panel mount integration.


MAIN FEATURES

Miniature design
Designed for joysticks, armrest and panel mounting
Proportional output
Self-centering, single axis actuator
Snap-in mounting
72.00 €
Piece
Piece Unit price Total
Property Name Property Value
We'll Call You


Thank you,
We will contact you as soon as possible

Send
  • GENERAL SPECIFICATION
    • Miniature design
    • Designed for joysticks, armrest and panel mounting
    • Proportional output
    • Self-centering, single axis actuator
    • Snap-in mounting


    ENVIRONMENTAL SPECIFICATIONS
    • Operating Temperature: -40°C to +85°C (-40°F to +185°F)
    • Storage Temperature: -40°C to +85°C (-40°F to +185°F)
    • EMC Immunity Level: EN61000-4-3
    • EMC Emissions Level: EN61000-6-3:2001
    • ESD: EN61000-4-2


    ELECTRICAL SPECIFICATIONS
    • Resolution: 1.22mV
    • Supply Voltage Range: 5.00V± 0.250V
    • Reverse Polarity Max: -10V
    • Overvoltage Max: 20V
    • Output Impedance: 2?
    • Return to Center Voltage Tolerance: ± 200mV initial


    MATERIALS
    • Handle/Actuator: Glass filled nylon
    • Body: Glass filled nylon


    MECHANICAL SPECIFICATIONS
    • Mechanical Angle of Movement: ±45°
    • Expected Life: 3 million cycles
    • Mass / weight: 18.25g ± 5.0g (0.64oz ± 0.18oz)
    • Lever Action (centering): Spring centering
    • Actuation Force: .151bf.
