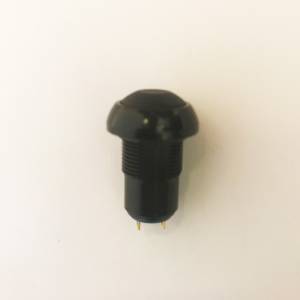

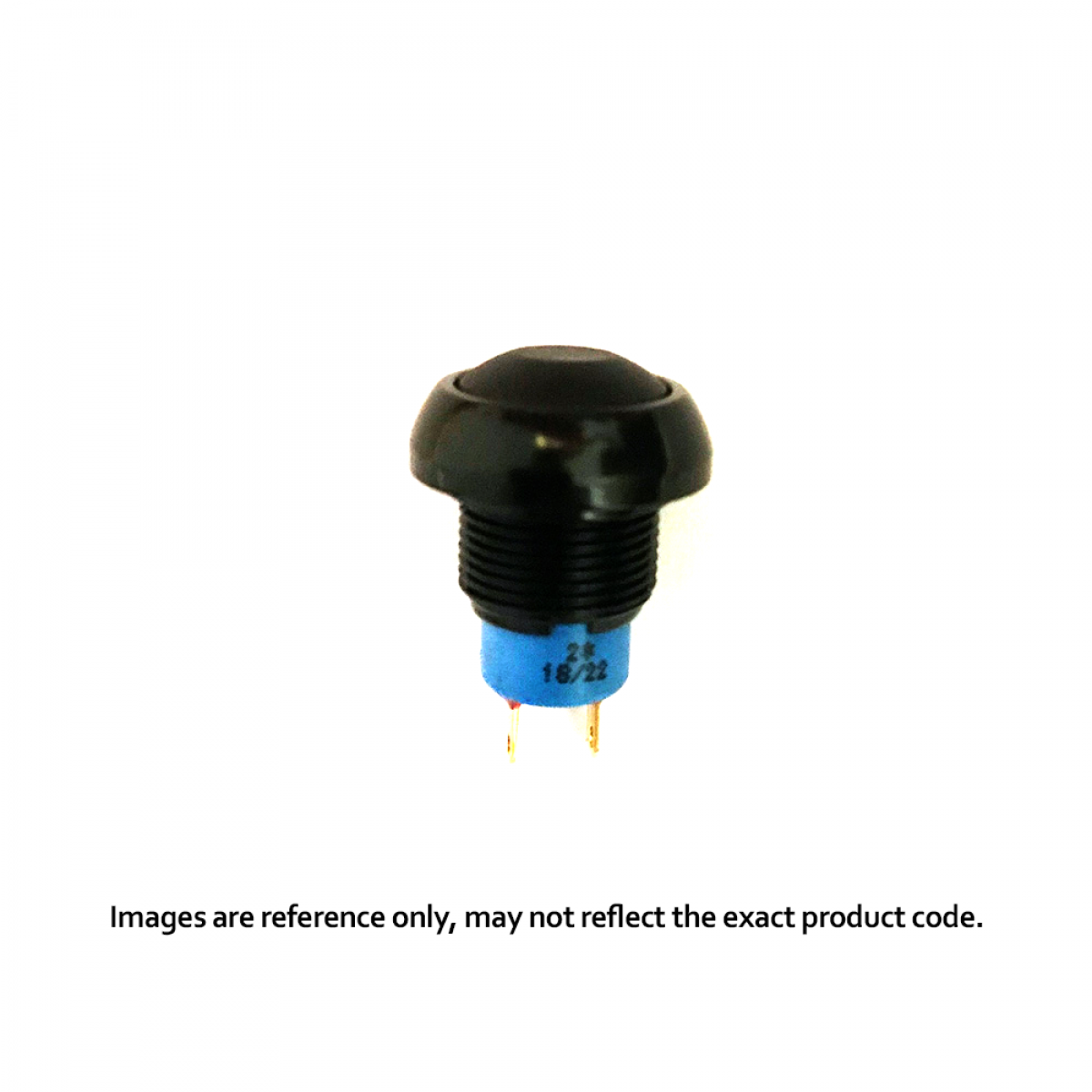

APEM IP Series Round Curved NO Pushbutton

Illuminated or non-illuminated latching action pushbuttons for harsh environments,
sealed to IP67 and IP69K (non-illuminated models). Round or square actuator,
available in many different colors. Numerous terminal options, gold plated silver contacts.
MAIN FEATURES
Latching action: actuator remains in the low position when ON
Illuminated and non-illuminated
Flat round actuator for optional marking
Compact: behind-panel depth less than 20 mm (.787)
High brightness illumination
Four LED colors
Tin plated LED terminals
96.64 €
Piece
Piece Unit price Total
50 10.74 € 537.00 €
100 8.69 € 869.00 €
250 7.60 € 1,900.00 €
500 6.84 € 3,420.00 €
750 6.13 € 4,597.50 €
Property Name Property Value
SERIES IP
ACTUATOR SHAPES Round, curved
ELECTRICAL FUNCTIONS Normally open (NO)
TERMINALS Solder lug
CONTACTS Silver, gold plated
ACTUATOR COLOR Green
LED COLOR Non-illuminated
We'll Call You


Thank you,
We will contact you as soon as possible

Send
  • GENERAL SPECIFICATION
    • Panel thickness: 1.5 mm (.059) min. 5.5 mm (.217) max.
    • Total travel: 2.5 mm (.098) +/- 0.3 mm
    • Typical operating force: 10 N
    • Low level/mechanical life : 200,000 cycles
    • Torque : 1.5 Nm max. applied to nut
    • Soldering : 320°C max. for 3 sec.

    ENVIRONMENTAL SPECIFICATIONS
    • Front panel sealing: IP67 according to IEC 60529
    • Shock resistance: 100 g according to IEC 512-4, test 6c
    • Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d
    • Salt spray: IEC 512-6, test 11f
    • Robustness (non-illuminated): IK06 according to EN 50102 (1 joule)
    • Operating temperature: -40°C to +85°C (-40°F to 185°F)

    ELECTRICAL SPECIFICATIONS
    • Max. current/voltage rating with resistive load:
    4A 12VDC, 200,000 cycles
    1A 48VDC, 200,000 cycles
    2A 48VDC, 100,000 cycles
    3A 48VDC, 75,000 cycles
    1A 72VDC, 15,000 cycles
    • Initial contact resistance: 100 m? max.
    • Insulation resistance: 1 G? min. at 500VDC
    • Dielectric strength: 1.500 Vrms between terminals - 1.000 Vrms between terminals and frame

    MATERIALS
    • Case: thermoplastic, UL 94-V0
    • Actuator: polyamide 6/6
    • Bushing/bezel: zinc die-cast (zamak), black painted
    • Contacts: silver, gold plated
    • Output wires (flying lead terminals):
    F version: AWG20, section 0.6 mm2
    W version: AWG24, section 0.23 mm2
    • LED wires:
    F version: AWG26, section 0.12 mm2
    W version: AWG24, section 0.23 mm2
    • Lens: polycarbonate
    • Terminal seal: epoxy

    APPROVALS
    UL
