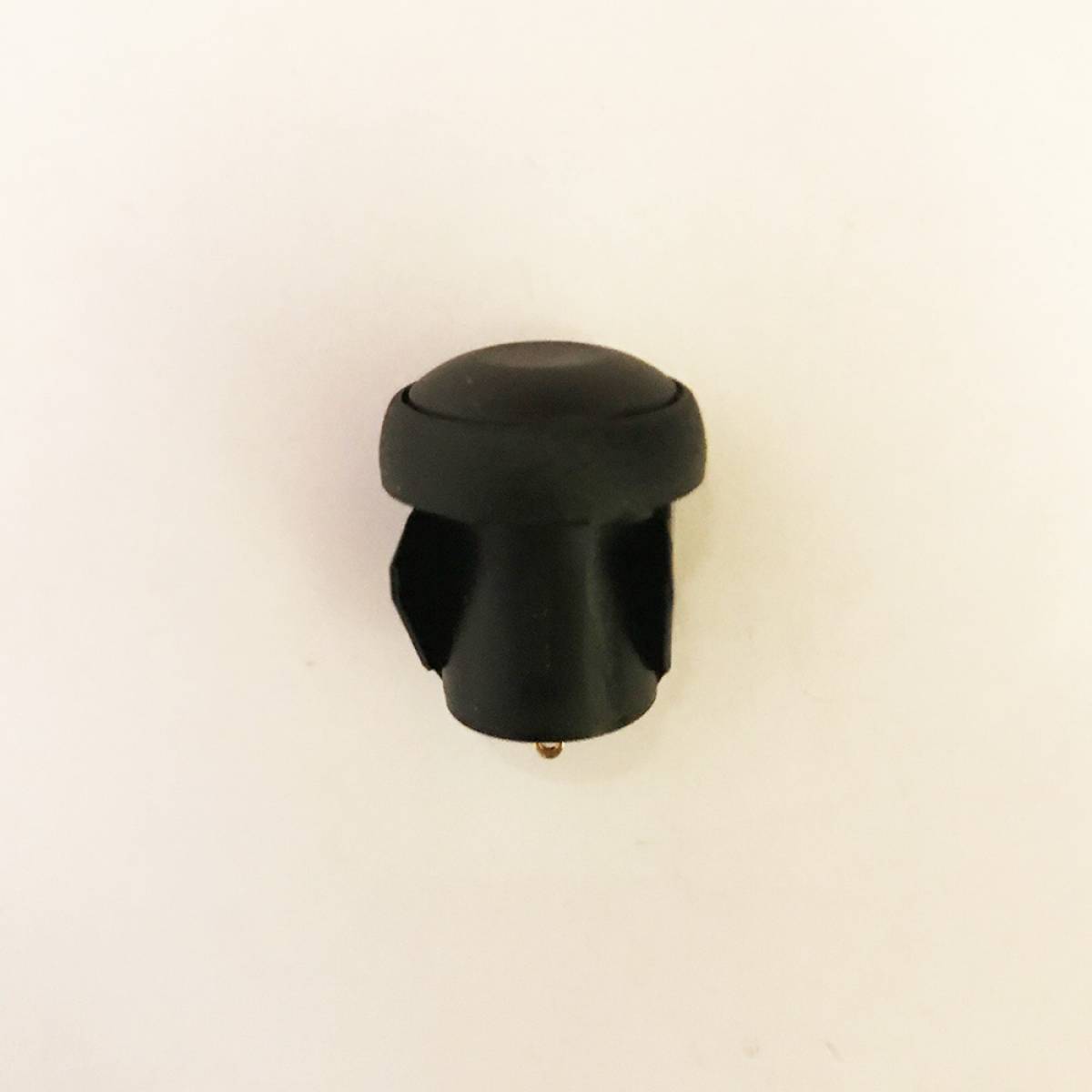

APEM IQ Series 16mm Pushbutton

The IQ series is a range of sealed pushbutton switches featuring snap-in
mounting for easier and faster installation. Faster installation = time and cost savings.

MAIN FEATURES
Snap-in mounting for easy installation
Dia.16 mm bushing
Tactile feedback
Illuminated or non-illuminated
Wide choice of actuator and illumination colors
Flat round actuator for optional marking
Five terminal options, including screw terminals
Silver contacts for screw terminal types, gold plated contacts for other types
Sealed to IP54
17.00 €
Piece
Piece Unit price Total
10 15.00 € 150.00 €
40 12.78 € 511.20 €
120 10.35 € 1,242.00 €
280 9.04 € 2,531.20 €
520 8.14 € 4,232.80 €
1000 5.00 € 5,000.00 €
Property Name Property Value
SERIES IQ
ACTUATOR SHAPES Round, curved
ELECTRICAL FUNCTIONS Normally open (NO)
TERMINALS Solder lug
CONTACTS Silver, gold plated (100 mA 24 VDC)
ACTUATOR COLOR Black
BUSHING AND BEZEL Black (std)
LED COLOR Non-illum.
We'll Call You


Thank you,
We will contact you as soon as possible

Send
  • GENERAL SPECIFICATION
    • Panel thickness:
    with flat seal : 2.20 mm (.088) max.
    without flat seal: 3 mm (.118) max.
    • Total travel: 1.6 mm (.062) +/- 0.3 mm
    • Typical operating force: 4N +/- 2N
    • Low level or mechanical life: 1,000,000 cycles
    • Soldering: 320 °C max. for 3 sec.

    ENVIRONMENTAL SPECIFICATIONS
    • Front panel sealing: IP54 according to IEC 60529
    • Shock resistance: 100 g according to IEC 512-4, test 6c
    • Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d
    • Salt spray: IEC 512-6, test 11f
    • Operating temperature: -40 °C to +85 °C (-40 °F to 185 °F)

    ELECTRICAL SPECIFICATIONS
    • Max. current/voltage rating with resistive load:
    - Gold plated contacts:
    Code 4: 200 mA 48 VDC, 500,000 cycles
    Code 7: 5 A 28 VDC, 70,000 cycles
    - Silver contacts:
    Code 2: screw terminals: 4 A 48 VDC, 500,000 cycles
    • Initial contact resistance: 100 m? max.
    • Insulation resistance: 1 G? min. at 500 VDC
    • Dielectric strength: 1,500 Vrm

    MATERIALS
    • Case: thermoplastic UL94-V0
    • Actuator: polyamide 6/6
    • Bushing/bezel : polyamide 6/6
    • Contacts: 4 and 7: silver, gold plated 2: silver (screw terminals)
    • Multi-wire lead AWG20, section 0.6 mm2
    • LED wire: AWG26, section 0.12 mm2
    • Lens: polycarbonate
    • Terminal seal: epoxy
