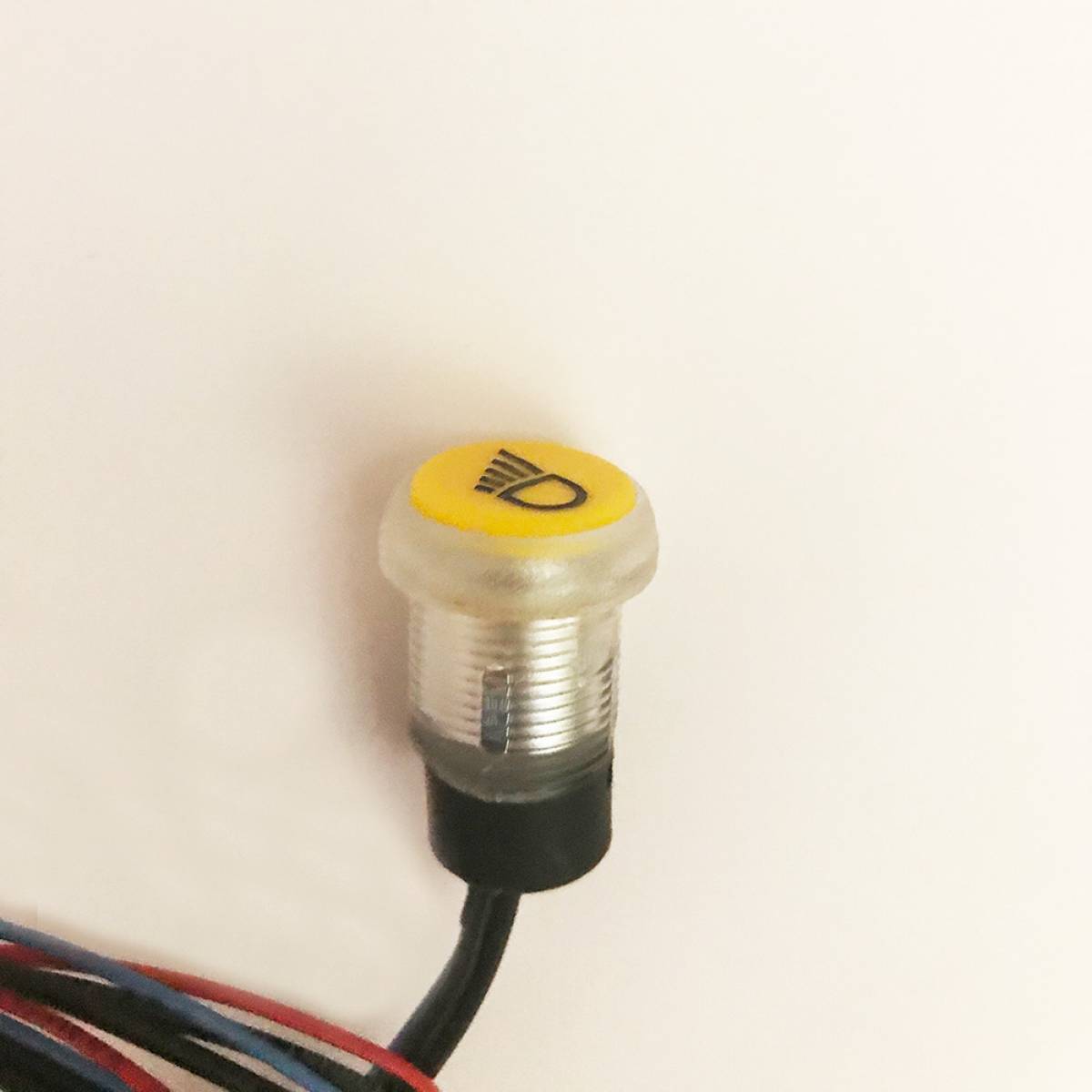

APEM IR Series 16mm Lamp Button

The IR series of sealed pushbutton switches is divided into
2 families: standard models and microswitch technology models.
The standard models include numerous terminal options: solder,
flying lead, straight PC, quick-connect, but also screw.

The screw terminal version, unique on the market for this type of product,
withstands up to 4 amps. Moreover, the behind-panel depth of the
flying lead version is the shortest on the market.

MAIN FEATURES
Sealed to IP67
Illuminated or non-illuminated
Tactile feedback
Square or round actuator
Wide choice of actuator colors
Wide choice of illumination colors
Easily customized
Optional marking (actuator marking is available on request for models with flat round actuator)Integrated resistor
On flying lead illuminated versions, the LED resistor can be integrated into the product by APEM upon request
29.26 €
Piece
Piece Unit price Total
Property Name Property Value
SERIES IR
ACTUATOR SHAPES Round, flat
ELECTRICAL FUNCTIONS OFF - ON
TERMINALS Flying leads
CONTACTS Silver, gold plated (100 mA 24 VDC)
ACTUATOR COLOR Yellow
BUSHING AND BEZEL Transparent (round bezel only)
ILLUMINATION Non-illuminated
LED COLOR Non-illuminated
We'll Call You


Thank you,
We will contact you as soon as possible

Send
  • GENERAL SPECIFICATION
    • Panel thickness: 8 mm (.314) max.
    • Total travel: 2.5 mm (.098) +/- 0,3 mm
    • Typical operating force: 5 N +/- 2 N
    • Low level or mechanical life: 200,000 cycles
    • Torque: 0.8 Nm max. applied to nut
    • Soldering: 320 °C max. for 3 sec.

    ENVIRONMENTAL SPECIFICATIONS
    • Front panel sealing: IP67 according to IEC 60529
    • Shock resistance: 100 g according to IEC 512-4, test 6c
    • Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d
    • Salt spray: IEC 512-6, test 11f
    • Operating temperature: -40 °C to +85 °C
    (-40 °F to 185 °F)

    ELECTRICAL SPECIFICATIONS
    • Max. current/voltage rating with resistive load (gold plated contacts):
    - Code 4: 100 mA 24 VDC, 200,000 cycles
    - Code 7: 4 A 12VDC, 200,000 cycles
    1 A 48 VDC, 200,000 cycles
    3 A 48 VDC, 75,000 cycles
    • Initial contact resistance: 100 m? max.
    • Insulation resistance: 1 G? min. at 500 VDC
    • Dielectric strength: 1,500 Vrms between terminals

    MATERIALS
    • Case: thermoplastic UL94-V0
    • Plunger: polyamide
    • Bushing/bezel: polyamide
    • Contacts: silver, gold plated (codes 4 and 7)
    • Multi-wire lead AWG20, section 0.6 mm2
    • LED wire: AWG26, section 0.12 mm2
    • Lens: polycarbonate
    • Terminal seal: epoxy
