Description
  • Brand APEM
  • Product CodeIT1102W9FL160G
  • Stock Status20000
  • Stock20000

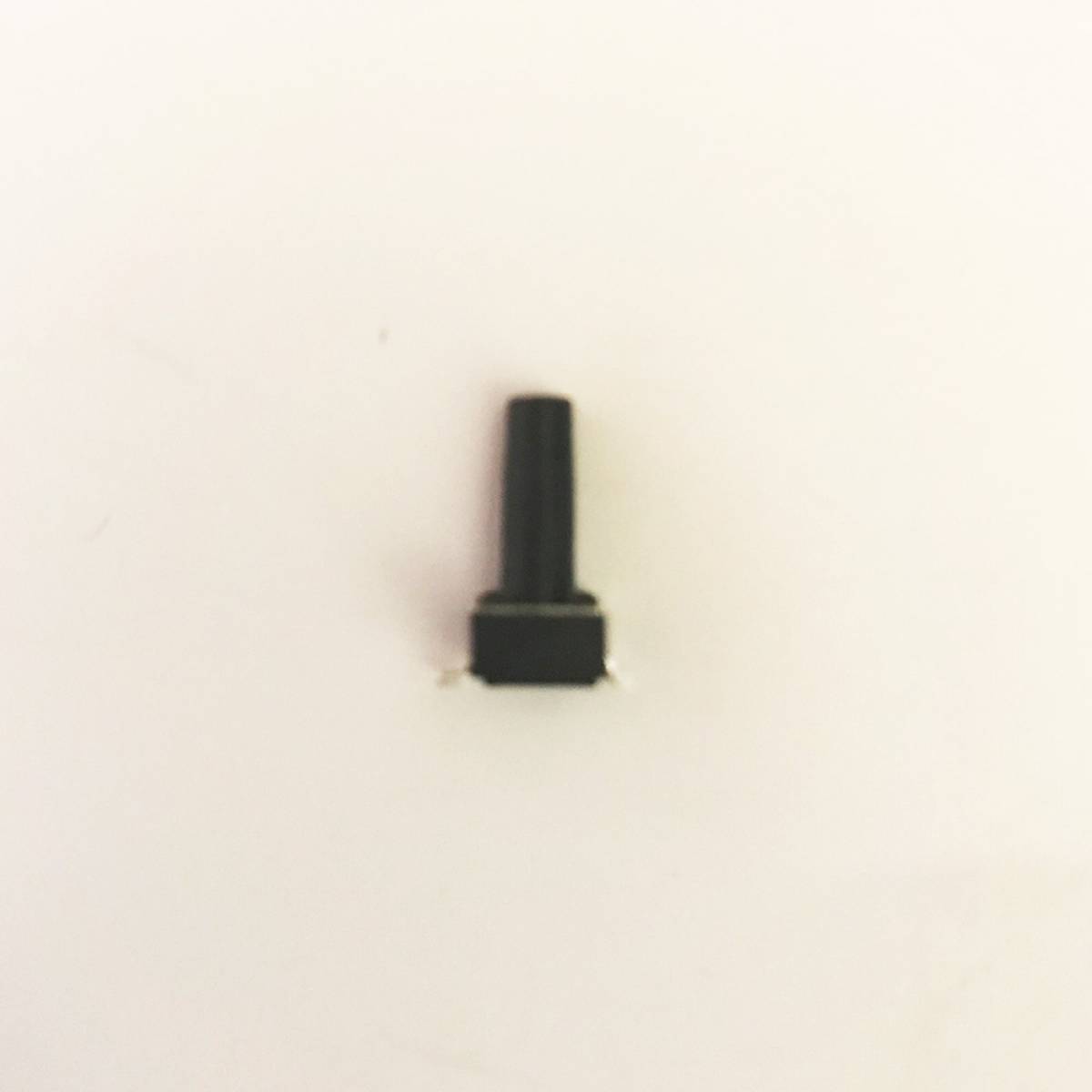

APEM Tact Switch 13mm with Button

Printed circuit mount, latch down mechanism pushbuttons with highest dielectric 6 KV rating and long life cycles.
Double pole configuration, case and cover is polyester UL-VO.
8 mm total plunger travel.

MAIN FEATURES
Mains pushbutton switches for PC boards
Highest dielectric 6 KV
Latchdown mechanism
6.00 €
Piece
Piece Unit price Total
Property Name Property Value
We'll Call You


Thank you,
We will contact you as soon as possible

Send
  • GENERAL SPECIFICATION
    • Low level or mechanical life : 50.000 cycles min.
    • Total travel : 8 mm (.314)

    ENVIRONMENTAL SPECIFICATIONS
    • Operating temperature : -10°C to +85°C
    • Storage temperature : -30°C to +85°C

    ELECTRICAL SPECIFICATIONS
    • Max. current/voltage rating with resistive load : see table below
    • Insulation resistance : 10.000 M? min. at 500VDC
    • Dielectric strength : 6.000 Vrms 50 Hz min. (other components to be kept
    outside protection area A to preserve 6KV on PCB)
    • Electrical life at full load : 20.000 cycles

    MATERIALS
    • Case and cover : polyester UL VO
    • Plunger : polyamide 6-6
    • Contacts : silver/nickel alloy (Ag/Ni)
    • Other molded parts in UL approved materials
