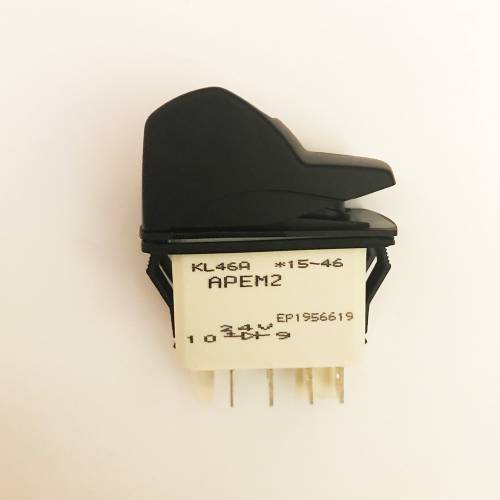

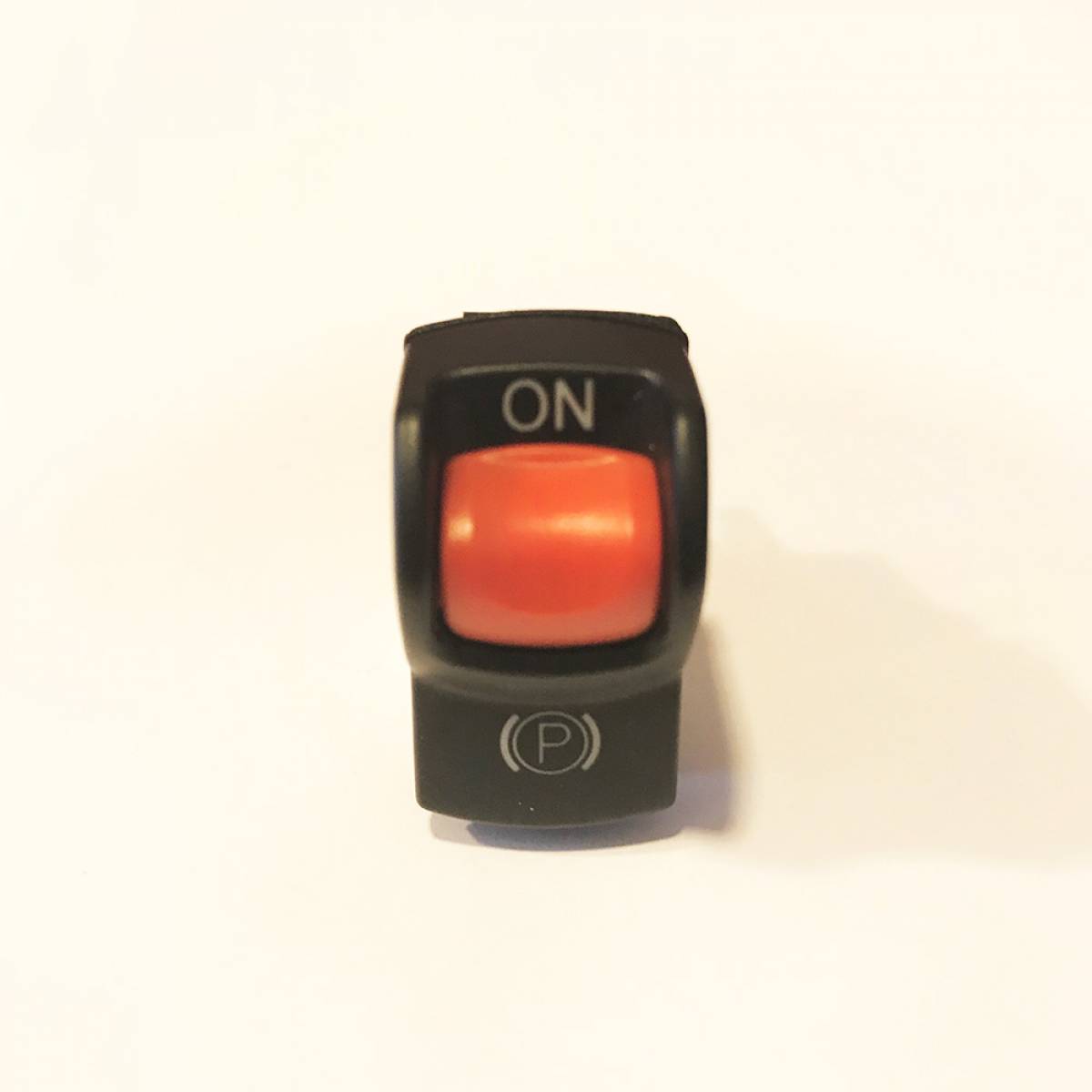

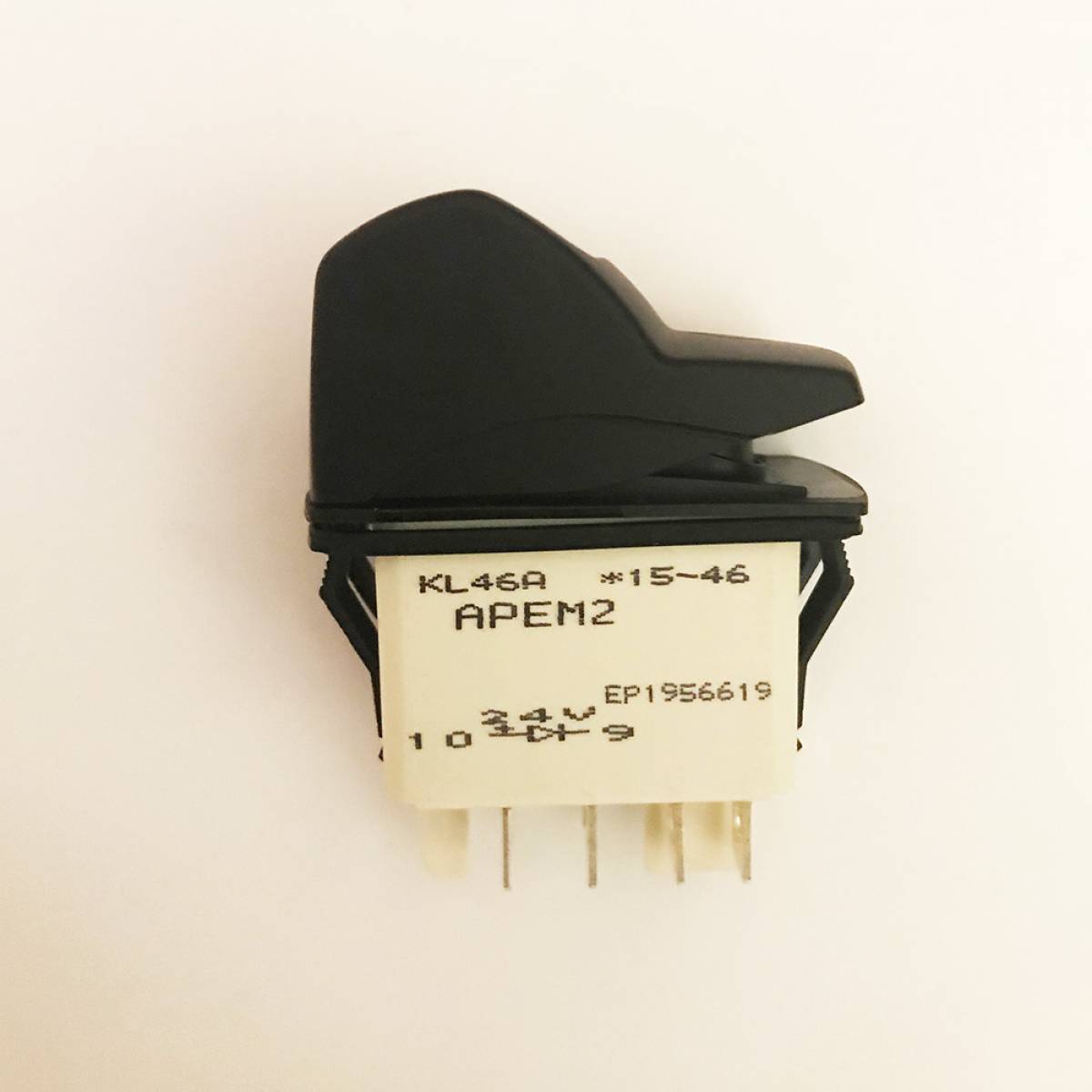

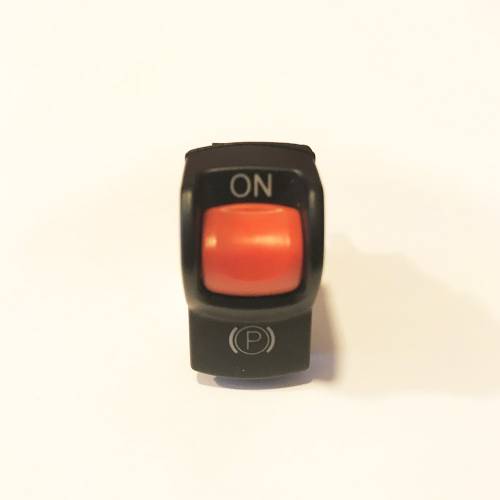

APEM KL Serisi Kilitli Rocker Switch

Power rocker switches available with 2 or 3 positions, with one locked position.
Actuator must be pressed to activate the protected function of the rocker.
Two frames protect the unlocking actuator from untimely activation.
Patented intuitive ergonomics.

MAIN FEATURES
Wide choice of colours
Laser eched symbols
Illuminated or non-illuminated
20 Amp version
Elastomer membrane
IP69K panel sealing

KL46CAKJG226N01A6 3D Drawing

KL Series Datasheet

SERIES

245.58 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total
40	27.29 €	1,091.60 €
120	24.91 €	2,989.20 €
520	22.73 €	11,819.60 €
1000	21.66 €	21,660.00 €

Property Name	Property Value
SERIES	KL
NUMBER OF POLES	Double Pole
ELECTRICAL FUNCTIONS	ON - ON
TERMINALS	Solder lug/quick-connect(10 terminals for use with connector U2292)
CONTACTS	Silver
SEALING	IP68
LEDS (Side B)	LED 24 V red
WIRING	G type
TYPE	For illuminated application
ROCKER COLOURS	Black
UNLOCKING ACTUATOR COLOR	Red
MARKING ORIENTATION	Vertical
SYMBOLS (Area A)	See Symbols File
SYMBOLS (Area B)	See Symbols File
MARKING COLOR	White (illuminated models)

We'll Call You

Description

GENERAL SPECIFICATION

• Mechanical life : 150,000 cycles min.

• Panel thickness : 0.8 mm to 4.6 mm

• Recommended panel thickness : between 2 mm and 3.5 mm

ENVIRONMENTAL SPECIFICATIONS

• Sealing options :

K : IP68 to front panel components of switch only according to IEC 60529

Z : IP69K panel sealing according to DIN 40050-9

• Salt spray resistance : 96 hours according to IEC 512-6, test 11f

• Operating temperature :-40 °C to +85 °C (-40 °F to +185 °F)

ELECTRICAL SPECIFICATIONS

• Currrent/voltage rating with resistive load :

- Silver plated contacts :

A : 5 A 24 VDC, 100,000 cycles - 10 A 24 VDC, 10,000 cycles (terminals 6.35 x 0.8 only)

S : 20 A 12 VDC, 10,000 cycles

- Gold plated contacts (D) : 20 mA 12 V, 150,000 cycles

• Initial contact resistance : 10 m? max.

• Insulation resistance : 1,000 M? min. at 500 VDC

• Dielectric strength : 2,000 Vrms 50 Hz min. between terminals

MATERIALS

• Case : PA 6-6

• Actuator and unlocking actuator : ABS or elastomeric membrane

• Bezel : PA 6-6

• Contacts & terminals : brass, solid silver grain, silver plated (A) or brass, solid silver grain, gold plated (D)

• Contact roller : brass, nickel plated
