NDS02T

Print this page
Description
  • Brand APEM
  • Product CodeNDS02T
  • Stock Status560
  • Stock560

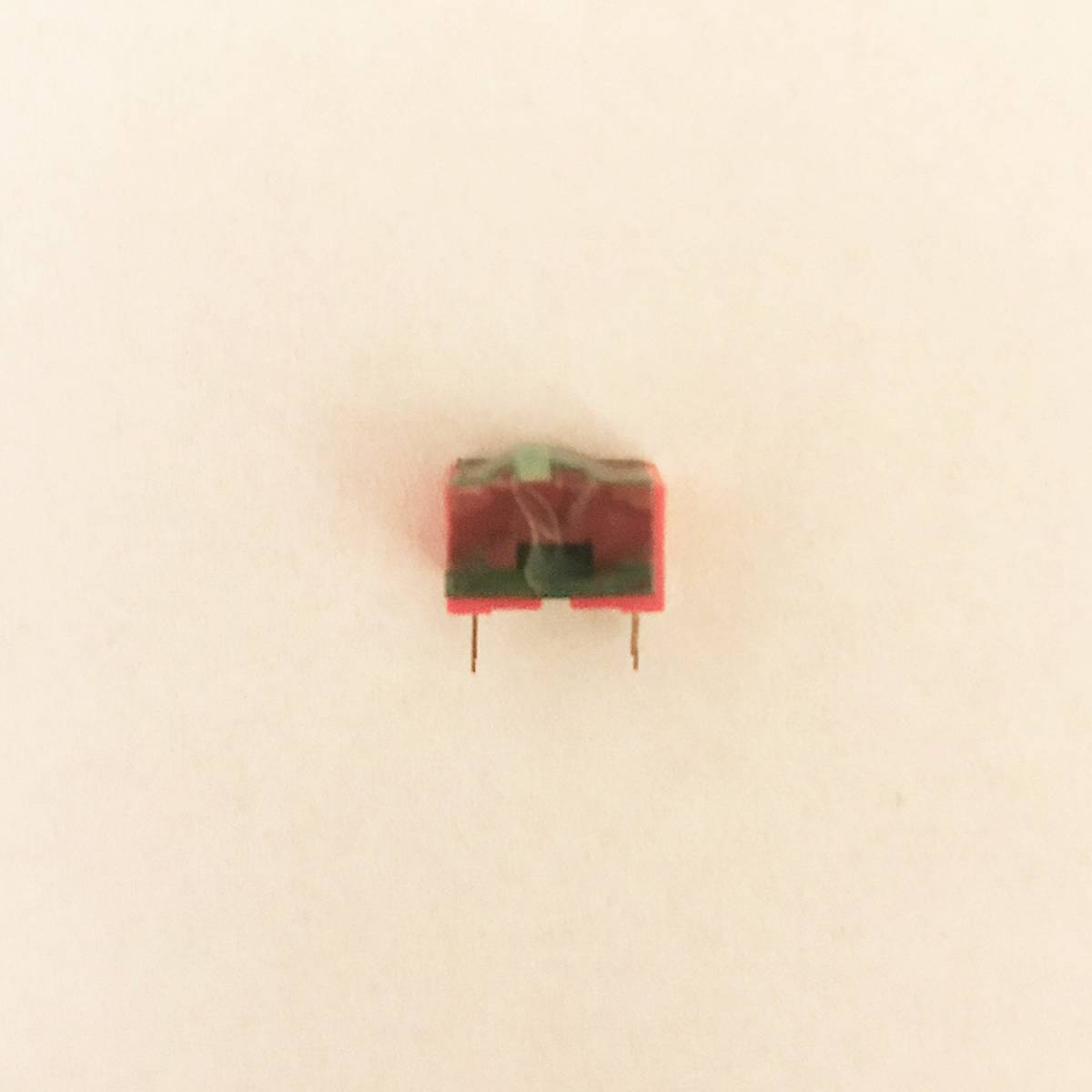

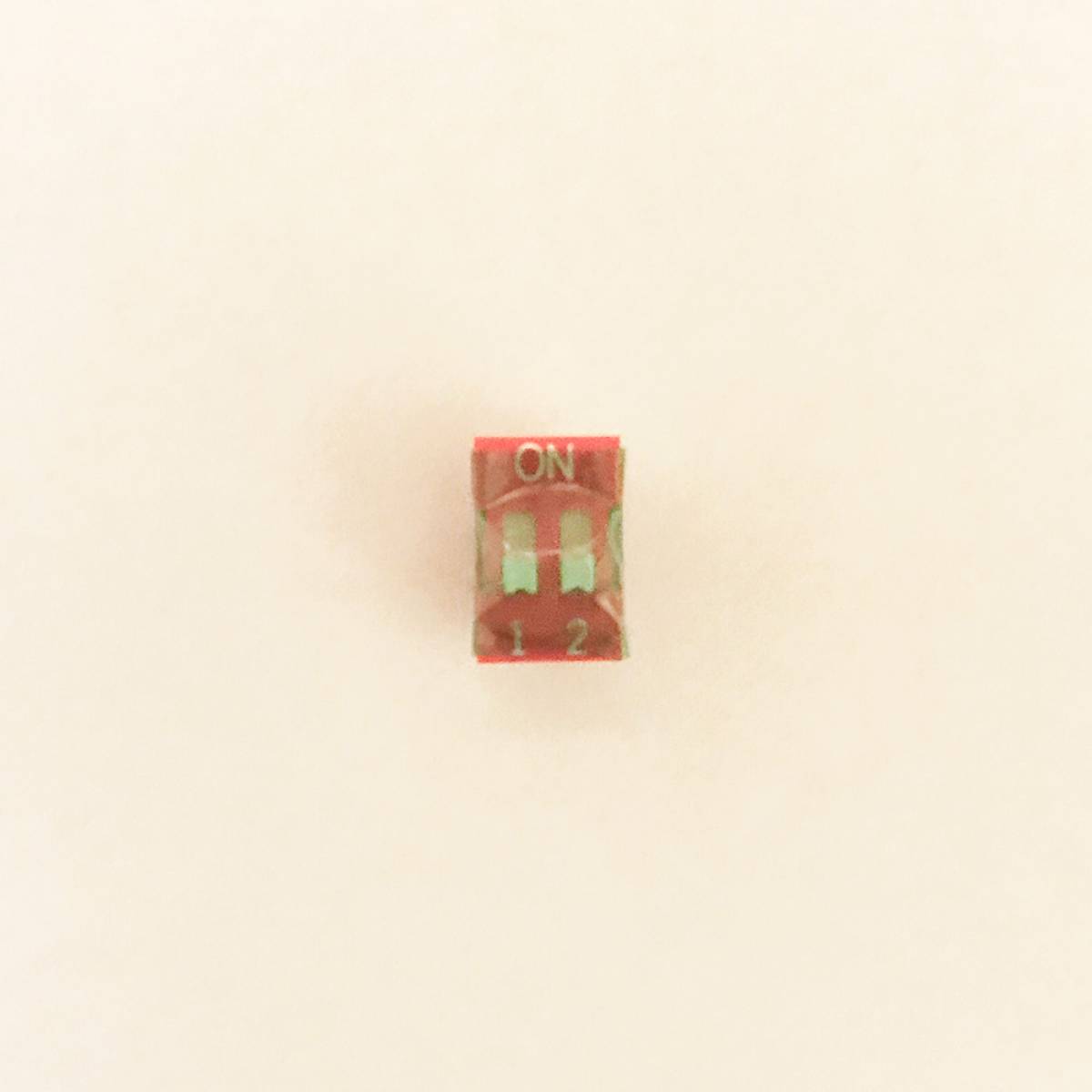

The standard profile NDS DIP switch is designed for reliable operation with positive detent action. Available 1 to 12 poles, through hole mounting.MAIN FEATURES2 to 12 wayWashable with tape sealSelf-cleaning wiping contactsGold plated terminals
1.20 €
Piece
Piece Unit price Total
Property Name Property Value
SERIES NDS
ACTUATOR Raised
TAPE SEAL No tape seal
We'll Call You


Thank you,
We will contact you as soon as possible

Send
  • FEATURES
    GENERAL SPECIFICATION
    • Available 1 to 12 poles, through hole mounting
    ENVIRONMENTAL SPECIFICATIONS
    • Operating temperature: -40 °C to +85 °C
    • Storage temperature: -40 °C to +85 °C

    ELECTRICAL SPECIFICATIONS
    • Max. current/voltage rating: 25 mA 24 VDC
    • Contact rating: 100 mA 50 VDC
    • Initial contact resistance: 50 m max
    • Insulation resistance: 100 M min. at 500 VDC
    • Dielectric strength: 500 VAC.
    • Electrical life: 2,000 cycles

    MATERIALS
    • Case: PBT
    • Base: PA66
    • Actuator: PBT
    • Contact: Gold plated
    • Terminal: Gold plated brass
    • Protection tape: Katpon

    MECHANICAL SPECIFICATIONS
    • Actuation force: 1000gf (9.8N) Max
