Q14F5CXXHR24E

Print this page

Description

Brand APEM
Product CodeQ14F5CXXHR24E
Stock Status175
Stock175

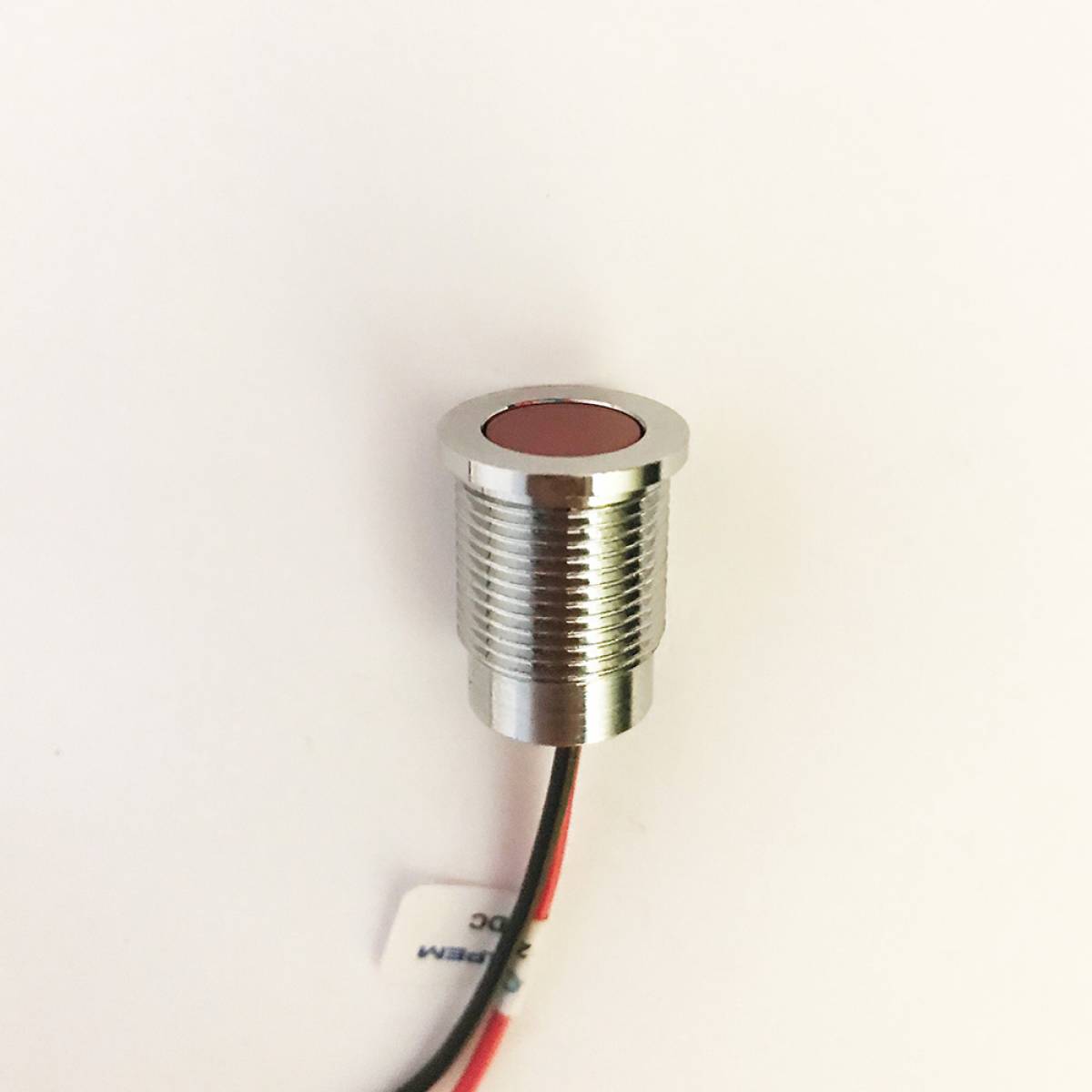

APEM Q Series 14mm Hyper Red 24V LED

Panel mount LED indicators with 10 mm colored diffused
epoxy lens or 10 mm water clear super bright LEDs.

MAIN FEATURES
Bright chrome, black chrome or satin grey bezel finish
Prominent and flush bezel styles
Voltage: 2 VDC - 220 VAC
Terminals: 2.8 x 0.8 solder lug/fastons, pins or 200 mm long wires
IP67 sealing option (EN 60529)
Supplied with fixing nut and spring washer

TYPICAL APPLICATIONS
Process Controls
Professional Electrical Appliances
Communications, Radar
Civil engineering vehicles, trucks, diggers, crane
Automotive
Aftermarket
HVAC, Energy Management
Lifts
Machine Tools

Q14F5CXXHR24E 3D Drawing

Q Series Datasheet

SERIES

99.42 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total
25	11.05 €	276.25 €
100	9.19 €	919.00 €
500	8.34 €	4,170.00 €
1000	7.67 €	7,670.00 €

Property Name	Property Value
SERIES	Q
MOUNTING HOLE	Ø14 mm
BEZEL STYLE	Flush(Metal)
TERMINALS	Rear epoxy Wires
BEZEL FINISH	Bright Chrome(Metal)
TYPE OF ILLUMINATION	Fixed Light
LED COLOR	Hyper Bright Red
VOLTAGE	24 VDC
SEALING	Sealed
OPTIONS	None

We'll Call You

Description

GENERAL SPECIFICATION

• Max Reverse Voltage: 5 V

• Viewing Angle: 30–100° *

• Life Expectancy: 100,000 hours

• Torque: 75 cNm

ENVIRONMENTAL SPECIFICATIONS

• Panel sealed up to IP67 according to EN 60529

• Temperature Range: –40 to +85 °C *

* Dependant on Model

ELECTRICAL SPECIFICATIONS

• 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max

• 6 VDC 5.4 to 6.6 VDC 20 mA

• 12 VDC 10.8 to 13.2 VDC 20 mA

• 24 VDC 21.6 to 26.4 VDC 20 mA

• 28 VDC 25.2 to 30.8 VDC 20 mA

• 110 VAC 99 to 121 VAC 6 mA

• 220 VAC 207 to 235 VAC 3 mA

MATERIALS

• Plated brass bezel finished in bright chrome,

• black chrome or satin grey and moulded polycarbonate rear body

APPROVALS

UL
