Q14F7CXXY12E

Print this page
Description
  • Brand APEM
  • Product CodeQ14F7CXXY12E
  • Stock Status99
  • Stock99

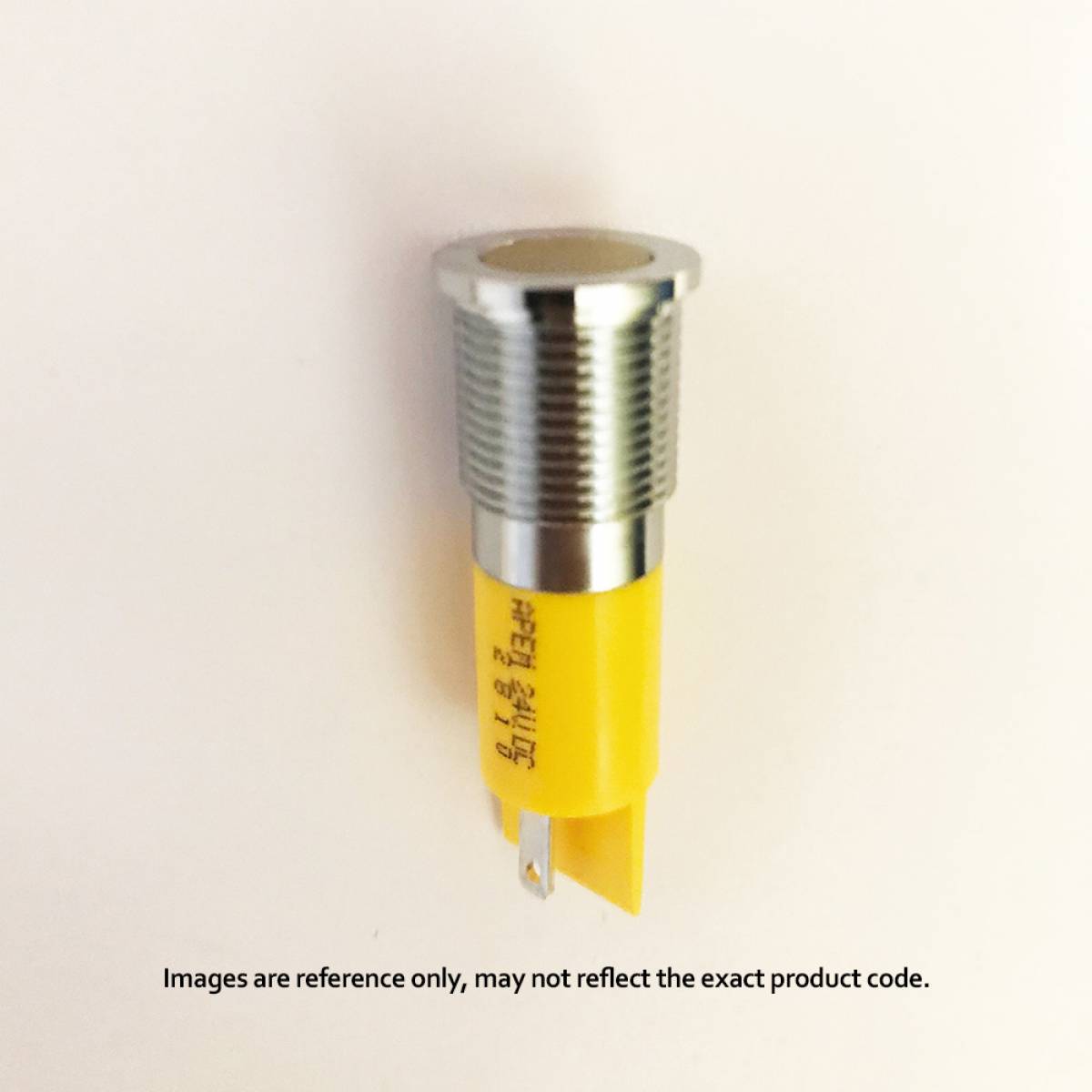

APEM Q Series 14mm Yellow 12V LED

Panel mount LED indicators with 10 mm colored diffused
epoxy lens or 10 mm water clear super bright LEDs.

MAIN FEATURES
Bright chrome, black chrome or satin grey bezel finish
Prominent and flush bezel styles
Voltage: 2 VDC - 220 VAC
Terminals: 2.8 x 0.8 solder lug/fastons, pins or 200 mm long wires
IP67 sealing option (EN 60529)
Supplied with fixing nut and spring washer

TYPICAL APPLICATIONS
Process Controls
Professional Electrical Appliances
Communications, Radar
Civil engineering vehicles, trucks, diggers, crane
Automotive
Aftermarket
HVAC, Energy Management
Lifts
Machine Tools
7.20 €
Piece
Piece Unit price Total
Property Name Property Value
SERIES Q
MOUNTING HOLE Ø14 mm
BEZEL STYLE Flush(Metal)
TERMINALS Short body Wires
BEZEL FINISH Bright Chrome(Metal)
TYPE OF ILLUMINATION Fixed Light
LED COLOR Yellow
VOLTAGE 12 VDC
SEALING Sealed
OPTIONS None
We'll Call You


Thank you,
We will contact you as soon as possible

Send
  • GENERAL SPECIFICATION

    • Max Reverse Voltage: 5 V

    • Viewing Angle: 30–100° *

    • Life Expectancy: 100,000 hours

    • Torque: 75 cNm


    ENVIRONMENTAL SPECIFICATIONS

    • Panel sealed up to IP67 according to EN 60529

    • Temperature Range: –40 to +85 °C *

    * Dependant on Model


    ELECTRICAL SPECIFICATIONS

    • 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max

    • 6 VDC 5.4 to 6.6 VDC 20 mA

    • 12 VDC 10.8 to 13.2 VDC 20 mA

    • 24 VDC 21.6 to 26.4 VDC 20 mA

    • 28 VDC 25.2 to 30.8 VDC 20 mA

    • 110 VAC 99 to 121 VAC 6 mA

    • 220 VAC 207 to 235 VAC 3 mA


    MATERIALS

    • Plated brass bezel finished in bright chrome,

    • black chrome or satin grey and moulded polycarbonate rear body


    APPROVALS

    UL
