Description
  • Brand APEM
  • Product CodeQ6F3CXXG24E
  • Stock Status8
  • Stock8

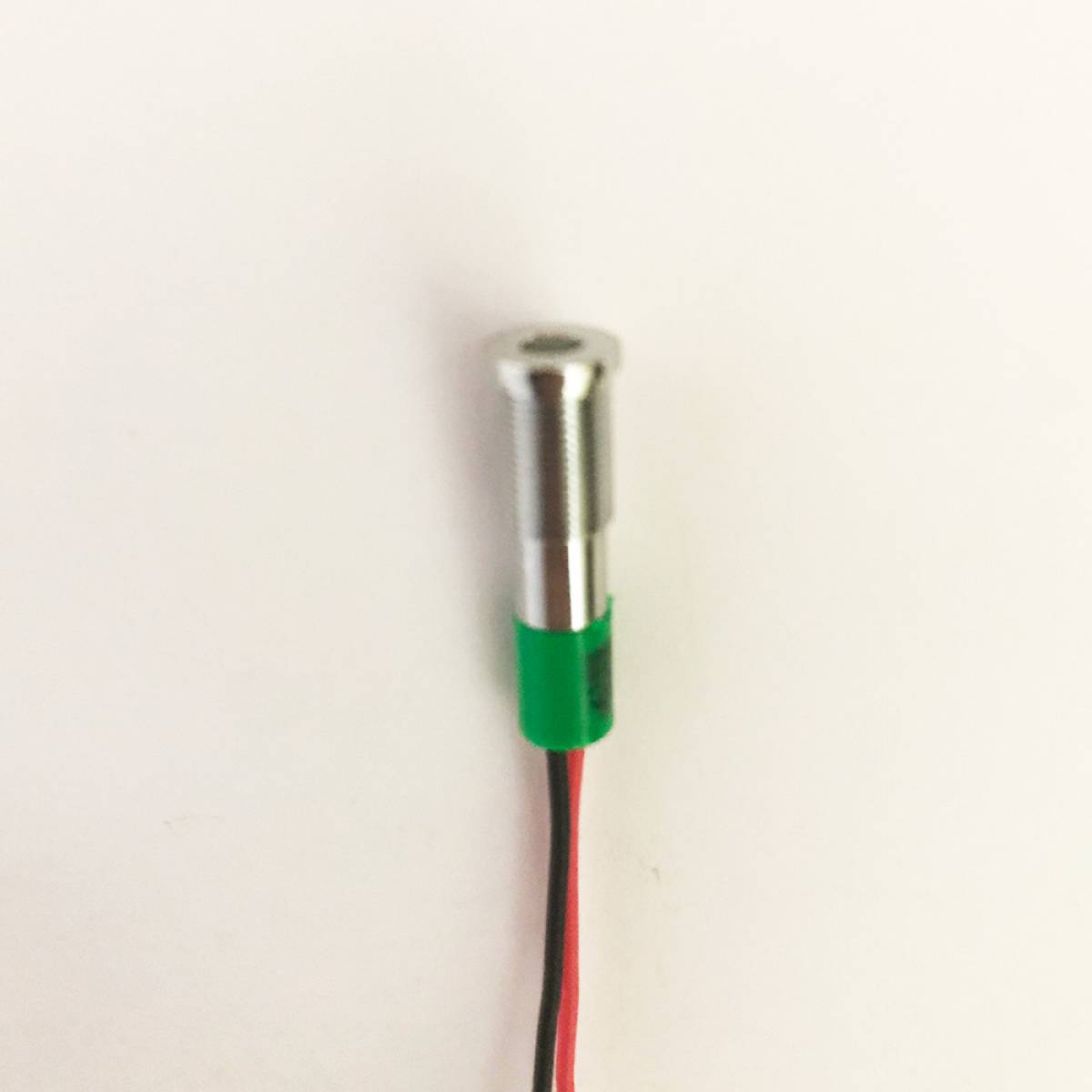

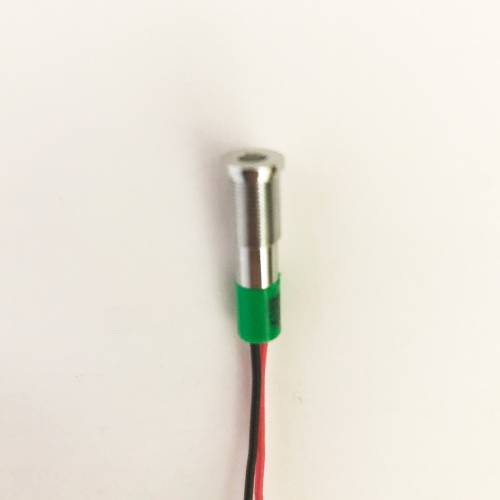

APEM Q Series Wired 6mm Green 24V LED APEM Q Series 6mm Green 24V LED

Panel mount LED indicators with 3 mm colored diffused epoxy lens or 3 mm water clear super bright LEDs.

MAIN FEATURES
Bright chrome, black chrome or satin grey bezel finish.
Prominent, recessed and flush bezel styles.
Voltage: 2 VDC - 28 VDC.
Terminals: 2.0 x 0.5 solder lug/fastons, pins or 200 mm long wires.
IP67 sealing option (EN60529).
Supplied with fixing nut and spring washer
TYPICAL APPLICATIONS
Process Controls
Professional Electrical Appliances
Communications, Radar
Civil engineering vehicles, trucks, diggers, crane
Trains
HVAC, Energy Management
Lifts
Machine Tools
7.20 €
Piece
Piece Unit price Total
Property Name Property Value
SERIES Q
MOUNTING HOLE Ø6 mm
BEZEL STYLE Flush(Metal)
TERMINALS Wires
BEZEL FINISH Bright Chrome(Metal)
TYPE OF ILLUMINATION Fixed Light
LED COLOR Green
VOLTAGE 24 VDC
SEALING Unsealed
OPTIONS None
We'll Call You


Thank you,
We will contact you as soon as possible

Send
  • GENERAL SPECIFICATION
    • Max Reverse Voltage: 5V
    • Viewing Angle: 30–100° *
    • Life Expectancy: 100,000 hours
    • Temperature Range: –40°C to +85°C *
    • Torque: 4cNm
    * Dependant on Model

    ENVIRONMENTAL SPECIFICATIONS
    • Panel sealed up to IP67 according to EN60529

    ELECTRICAL SPECIFICATIONS
    • (No Resistor) 1.8 to 3.8VDC 20mA max
    • 6VDC 5.4 to 6.6VDC 20mA
    • 12VDC 10.8 to 13.2VDC 20mA
    • 24VDC 21.6 to 26.4VDC 20mA
    • 28VDC 25.2 to 30.8VDC 20mA

    MATERIALS
    • 3mm colored diffused epoxy lens or 3mm water clear super bright LEDs
    • Plated brass bezel finished in bright chrome, black chrome or satin grey and moulded polycarbonate rear body.

    APPROVALS
    UL
