Q8F7CXXR28E

Print this page
Description
  • Brand APEM
  • Product CodeQ8F7CXXR28E
  • Stock Status582
  • Stock582

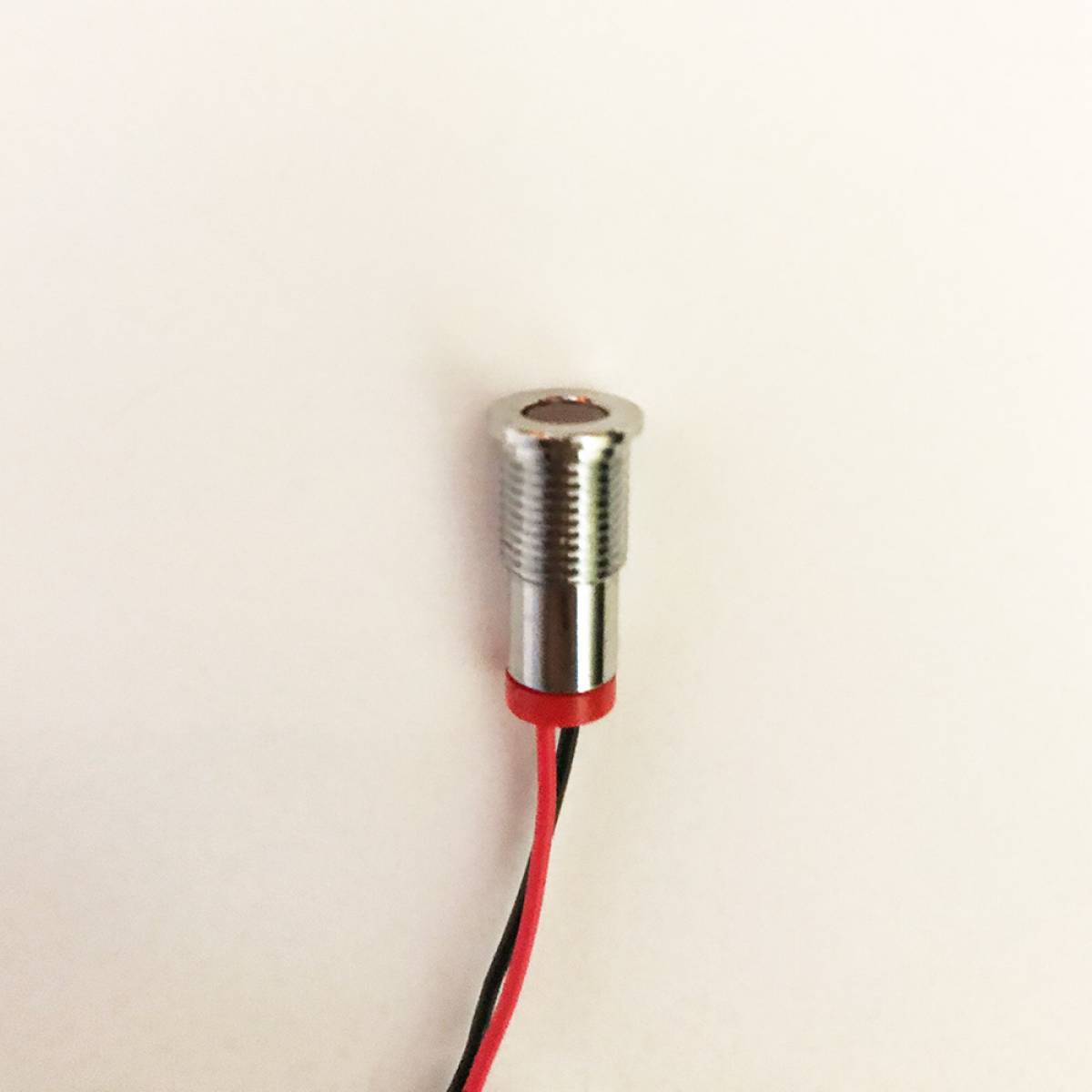

APEM Q Series Wired 8mm Red 28V LED APEM Q Series 8mm Green 220V LED

Panel mount LED indicators with 5mm colored diffused epoxy lens or 5mm water clear super bright LEDs.

MAIN FEATURES
Bright chrome, black chrome or satin grey bezel finish.
Prominent, recessed and flush bezel styles.
Voltage: 2VDC - 220VAC.
Terminals: 2.8 x 0.8 solder lug/fastons, pins or 200mm long wires.
IP67 sealing option (EN60529).
Supplied with fixing nut and spring washer.
TYPICAL APPLICATIONS

Medical
Telecommunications
Engineering
Transport Systems
Special Vehicles
Agricultural Vehicles
6.00 €
Piece
Piece Unit price Total
10 4.90 € 49.00 €
25 4.08 € 102.00 €
50 3.74 € 187.00 €
100 3.57 € 357.00 €
250 3.40 € 850.00 €
Property Name Property Value
SERIES Q
MOUNTING HOLE Ø8 mm
BEZEL STYLE Flush(Metal)
TERMINALS Short body Wires
BEZEL FINISH Bright Chrome(Metal)
TYPE OF ILLUMINATION Fixed Light
LED COLOR Red
VOLTAGE 28 VDC
SEALING Sealed
OPTIONS None
We'll Call You


Thank you,
We will contact you as soon as possible

Send
  • GENERAL SPECIFICATION
    • Max Reverse Voltage: 5 V
    • Viewing Angle: 30–100° *
    • Life Expectancy: 100,000 hours
    • Temperature Range: –40 to +85 °C *
    • Torque: 20 to 25 cNm
    * Dependant on Model

    ENVIRONMENTAL SPECIFICATIONS
    • Panel sealed up to IP67 according to EN 60529

    ELECTRICAL SPECIFICATIONS
    • 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max*
    • 6 VDC 5.4 to 6.6VDC 20 mA
    • 12 VDC 10.8 to 13.2 VDC 20 mA
    • 24 VDC 21.6 to 26.4 VDC 20 mA
    • 28 VDC 25.2 to 30.8 VDC 20 mA
    • 110 VAC 99 to 121 VAC 6 mA
    • 220 VAC 207 to 235 VAC 3 mA

    MATERIALS
    • 5 mm colored diffused epoxy lens or 5 mm water clear super bright LEDs
    • Plated brass bezel finished in bright chrome, black chrome or satin grey and moulded polycarbonate rear body

    APPROVALS
    UL
