QRM85BXXR28E

Print this page
Description
  • Brand APEM
  • Product CodeQRM85BXXR28E
  • Stock Status197
  • Stock197

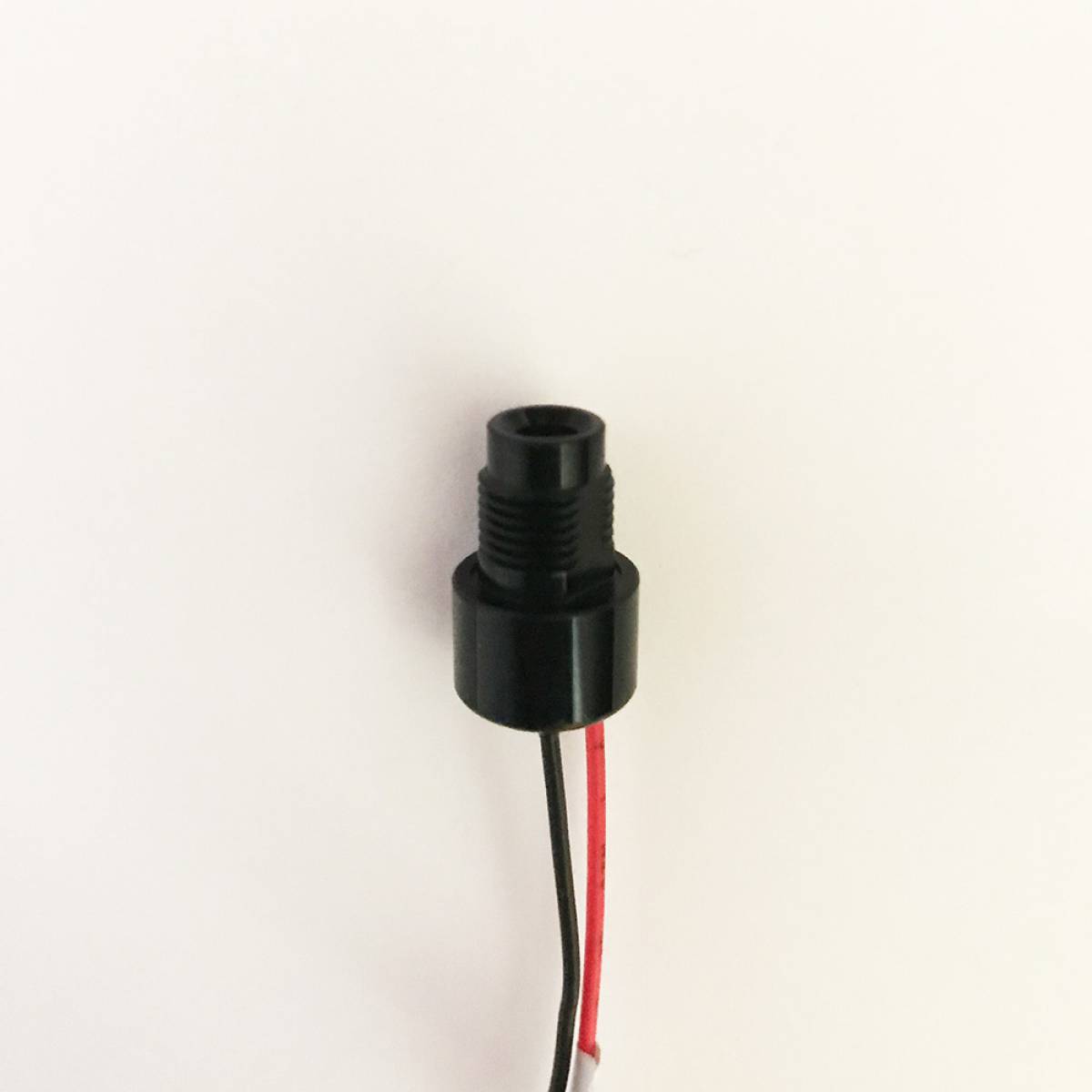

APEM QRM Series 8mm Red 28V LED

The QRM8 Series is a range of Ø8 mm diameter indicators which are rear mounted,
epoxy sealed and designed to be offered to the back of the panel for assembly.
They are available in bi-colored and tri-colored LEDs.
MAIN FEATURES
IP67 sealed to EN60529
Rear end epoxy sealed
Black chrome or anodized finish
157.37 €
Piece
Piece Unit price Total
25 17.49 € 437.25 €
100 13.67 € 1,367.00 €
500 12.02 € 6,010.00 €
1000 10.12 € 10,120.00 €
Property Name Property Value
SERIES QRM
MOUNTING HOLE Ø8 mm
TERMINALS Wires
BEZEL FINISH Black Chrome
TYPE OF ILLUMINATION Fixed Light
LED COLOR Red
VOLTAGE 28 VDC
SEALING IP67 (Standard)
We'll Call You


Thank you,
We will contact you as soon as possible

Send
  • GENERAL SPECIFICATION
    • Max Reverse Voltage: 5V
    • Viewing Angle: 60°
    • Life Expectancy: 100,000 hours
    • Max panel thickness: 3.5mm
    • Torque: 60cNm

    ENVIRONMENTAL SPECIFICATIONS
    • Operating Temperature Range: –40°C to +85°C
    • Storage Temperature Range: –55°C to +100°C
    • IP67 sealed (EN60529)

    ELECTRICAL SPECIFICATIONS
    • 02 (No Resistor) 1.8 to 3.8VDC 20mA max
    • 6VDC 5.4 to 6.6VDC 20mA
    • 12VDC 10.8 to 13.2VDC 20mA
    • 24VDC 21.6 to 26.4VDC 20mA
    • 28VDC 25.2 to 30.8VDC 20mA

    MATERIALS
    • Body: Black chrome plated brass or anodized finish
    • Nut: Black chrome plated brass or anodized finish
    • Panel seal: Nitrile O-ring
    • Lock washer: Spring steel
    • Terminal seal: Epoxy
    • Wires: 24AWG to UL1061

    APPROVALS
    UL
