| Piece |
| Piece | Unit price | Total |
|---|---|---|
| 25 | 12.69 € | 317.25 € |
| 50 | 8.46 € | 423.00 € |
| 100 | 5.28 € | 528.00 € |
| 1000 | 3.98 € | 3,980.00 € |

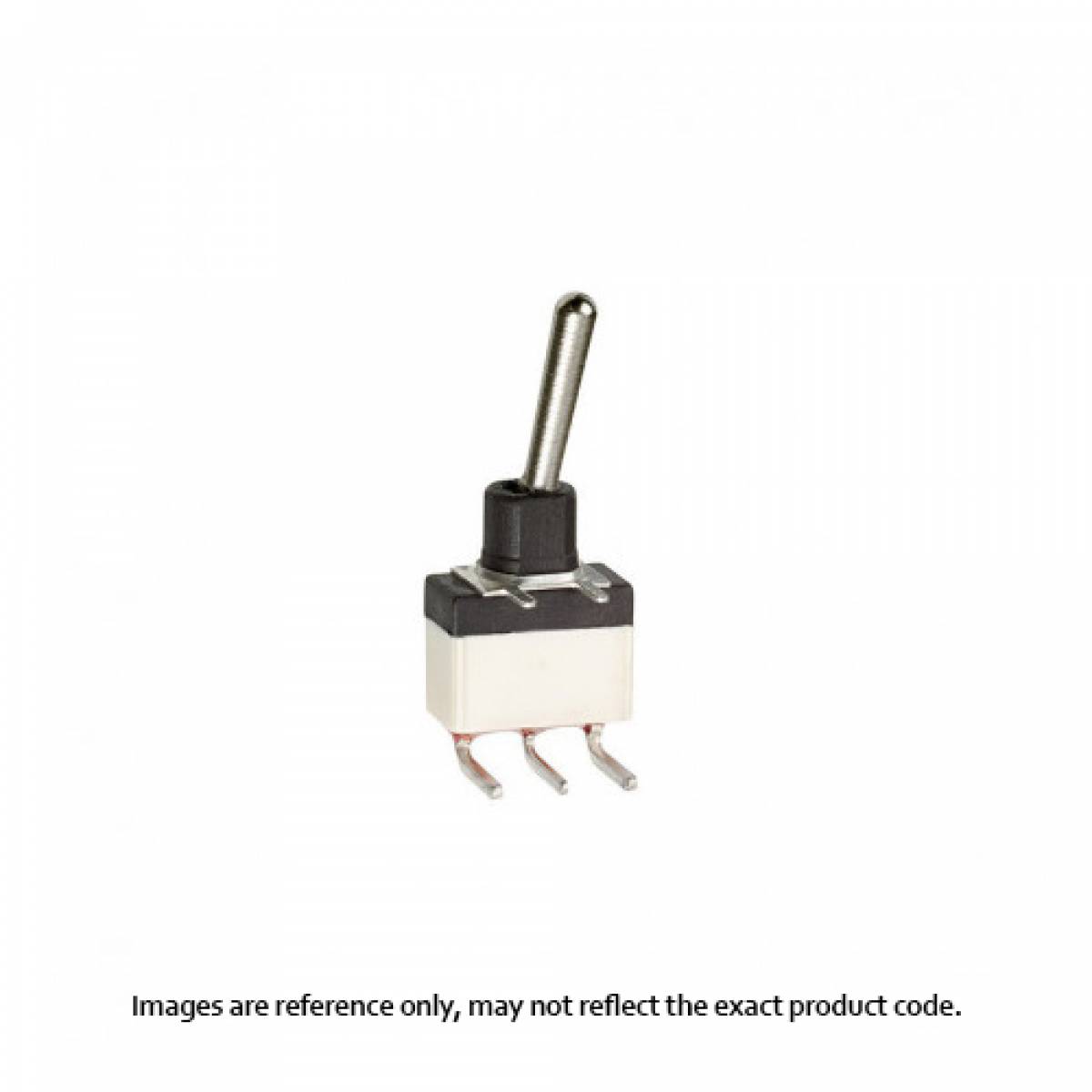

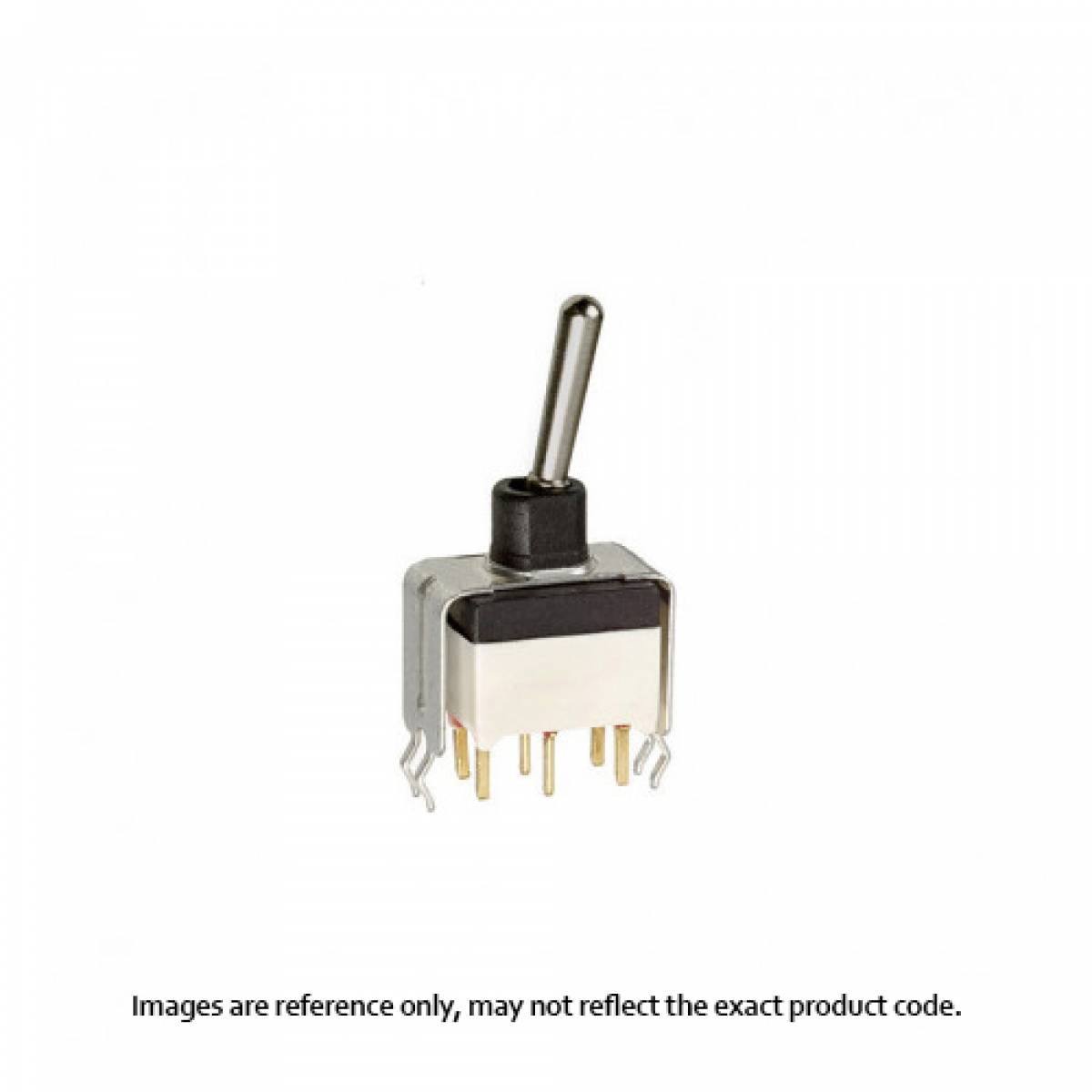

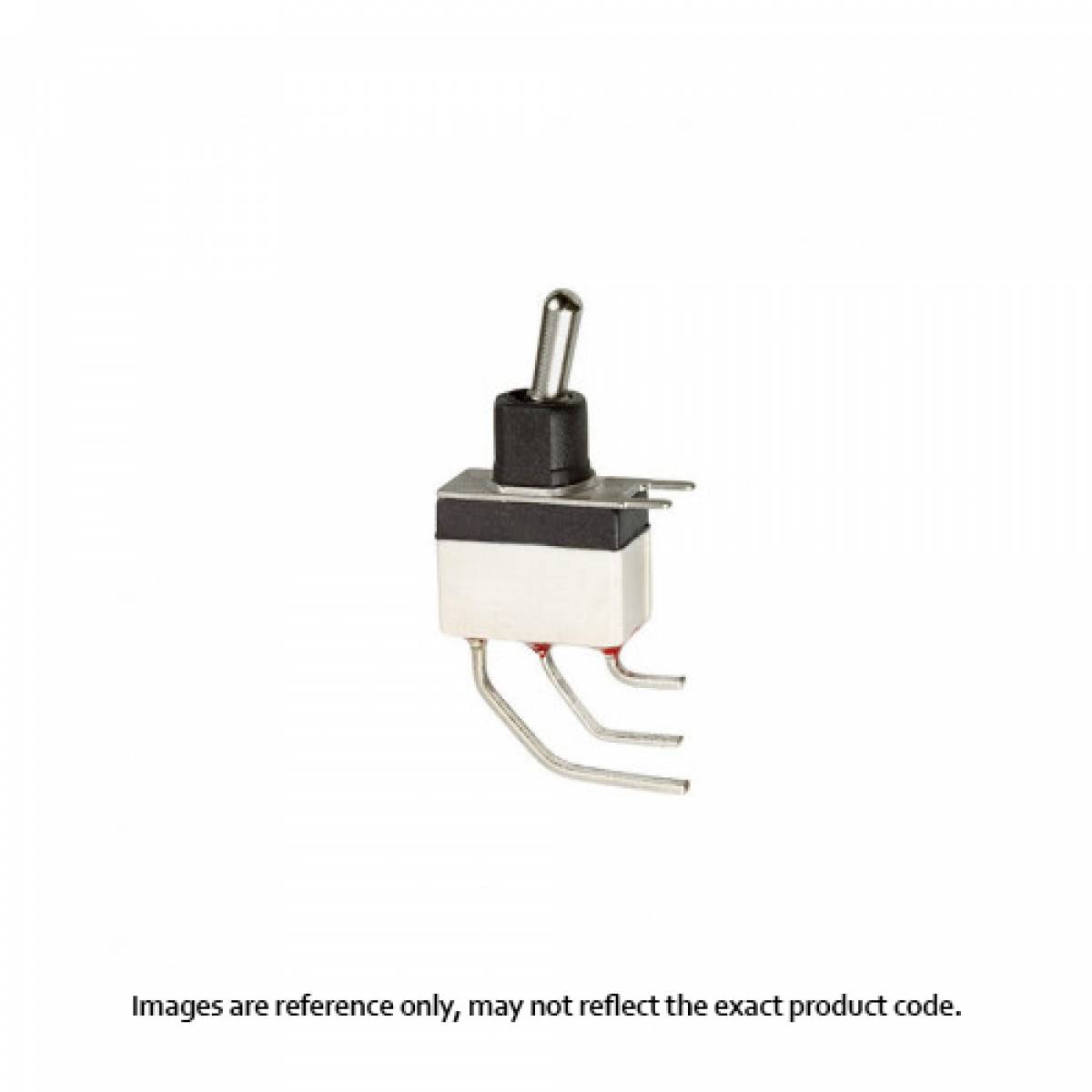

| Property Name | Property Value |
|---|---|
| SERIES | S |
| TERMINALS | Bracket mounting |
| TERMINAL SPACING | Terminal spacing 4.7 (.185) or 3.81 (.150) |
| NUMBER OF POLES | Double Pole |
| ELECTRICAL FUNCTIONS | ON OFF ON |
| CONTACT MATERIALS | Brass, gold plated |
| LEVERS | Short Standard |
GENERAL SPECIFICATION
• Mechanical strength : Terminals are strengthened by a bracket or a ground plate ensuring the rigidity of the switch on the board. Actuator strength is 10 N max.
• Soldering - thermal shock :
The switches are especially designed for flow soldering at 260 °C during 5 seconds owing to high temperature polymer parts.
• Solderability : The switches are tested at 235 °C according to IEC 68-2-20 after accelerated aging
ENVIRONMENTAL SPECIFICATIONS
• Operating temperature : -20 °C to +85 °C
• Storage temperature : -40 °C to +85 °C
• Moisture : The insulating materials employed and the complete seal permit the switches to withstand a 56 days moisture test (IEC 68-2-3).
ELECTRICAL SPECIFICATIONS
• Max. current/voltage rating with resistive load :
- silver contacts (A or 1) : 4 A 30 VDC
- gold plated brass contacts (CD or 0) : 0.4 VA 20 VAC or DC
- gold plated silver contacts (AD or 2) : 4 A 30 VDC (300 mA 30 VDC for gold plating)
• Initial contact resistance : 10 m? max.
• Insulation resistance : 1,000 M? min.
• Dielectric strength : 1,000 Vrms 50 Hz min.
MATERIALS
• Case and cover : UL94-VO, polyamide, glass filled or PES
• Actuator : brass, nickel plated
• Contacts
CD or 0 : brass, gold plated
A or 1 : silver
AD or 2 : silver, gold plated
• Terminal seal : epoxy
APPROVALS
CECC UL
