ZL39S000100

Print this page
Description
  • Brand APEM
  • Product CodeZL39S000100
  • Stock StatusPre-order
  • Stock0

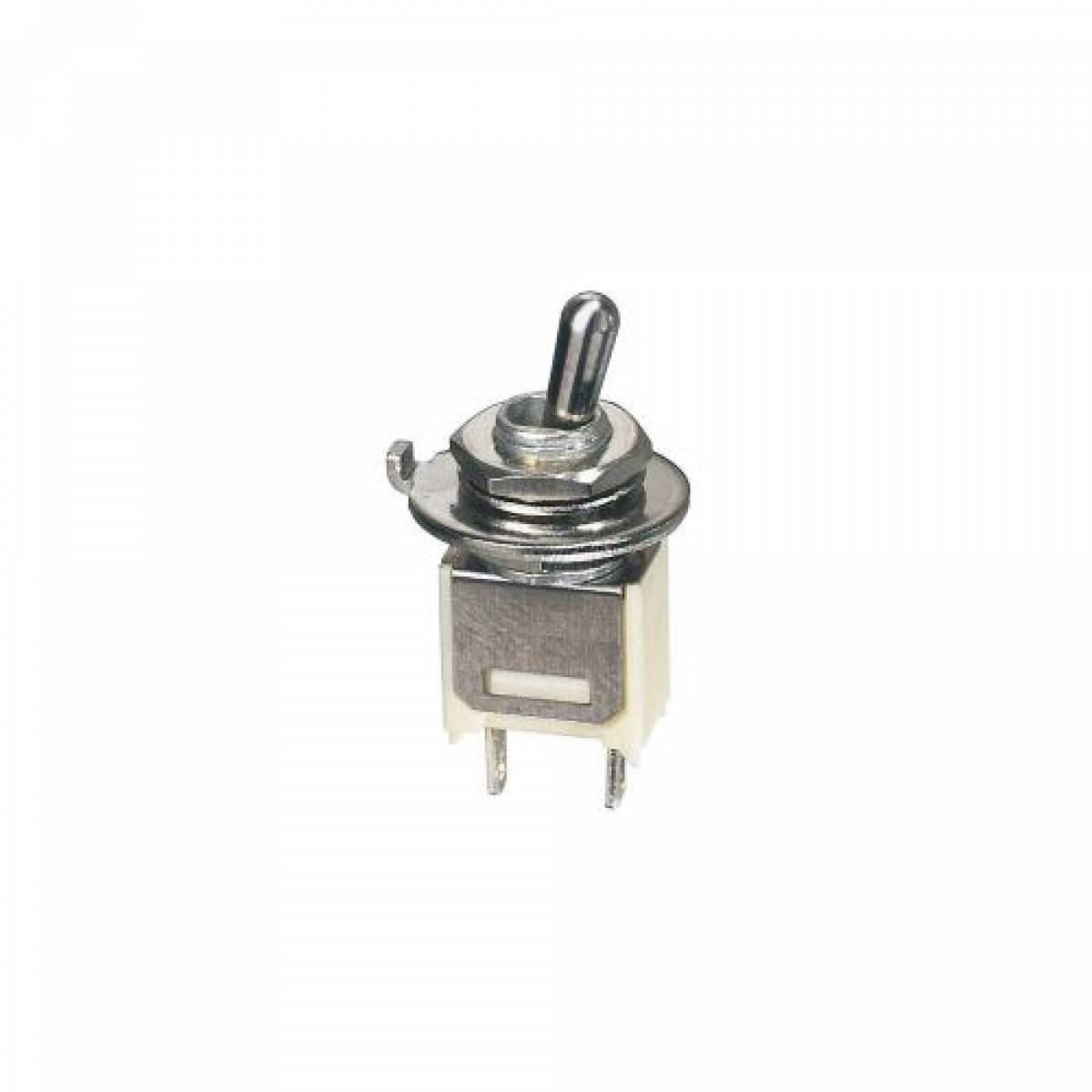

Sub-miniature toggle switches with metal bushing available in single pole configurations,
with ø4.83 mm threaded bushing.
Gold plated or silver plated contacts & solder lug or straight PC terminals.
25.19 €
Piece
Piece Unit price Total
100 2.80 € 280.00 €
1000 2.11 € 2,110.00 €
Property Name Property Value
SERIES ZL
NUMBER OF POLES Single Pole
ELECTRICAL FUNCTIONS ON OFF ON
TERMINALS Solder lug
CONTACT AND TERMINAL Brass, gold plated (std)
MODELS Standard model
We'll Call You


Thank you,
We will contact you as soon as possible

Send
  • GENERAL SPECIFICATION
    • Strength of terminals: pull-out force 10 N max.
    • Torque: 1 Nm max. applied between the 2 nuts
    • Max. panel thickness: 1.5 mm (.059) with 2 nuts
    • Hand soldering: 280 °C (536 °F) max. for 5 seconds max.
    • Wave soldering: 260 °C (536 °F) max. for 5 seconds max.


    ENVIRONMENTAL SPECIFICATIONS
    • Operating temperature: -30 °C to +85 °C (-30 °F to +85 °F)
    • Moisture: 21 days 95% (NFC 20-603 - IEC 8-2-3)


    ELECTRICAL SPECIFICATIONS
    • Max. current/voltage rating with resistive load:
    - gold plated contacts: 0.4 VA 20 V max. AC or DC
    - silver plated contacts: 0.5 A 48 V max. AC or DC
    • Minimum load: 10 mA 50 mV - 10 µA 5 VDC
    • Contact resistance: 20 mΩ max.
    • Insulation resistance: 1,000 MΩ min. at 500 VDC
    • Dielectric strength: 1,000 Vrms 50 Hz min. between terminals and frame, 500 Vrms 50 Hz min. between terminals


    MATERIALS
    • Case: thermoplastic UL94-V0
    • Actuator: brass, nickel plated
    • Bushing: zamak, tin plated
    • Contacts and terminals:
    0: brass, gold plated (standard)
    1: brass, silver plated
    3: brass, gold plated
    (1.27 micron gold)
    • Terminal seal: epoxy
