100550BLKRF

Print this page

Description

Brand APEM
Product Code100550BLKRF
Stock Status35
Stock35

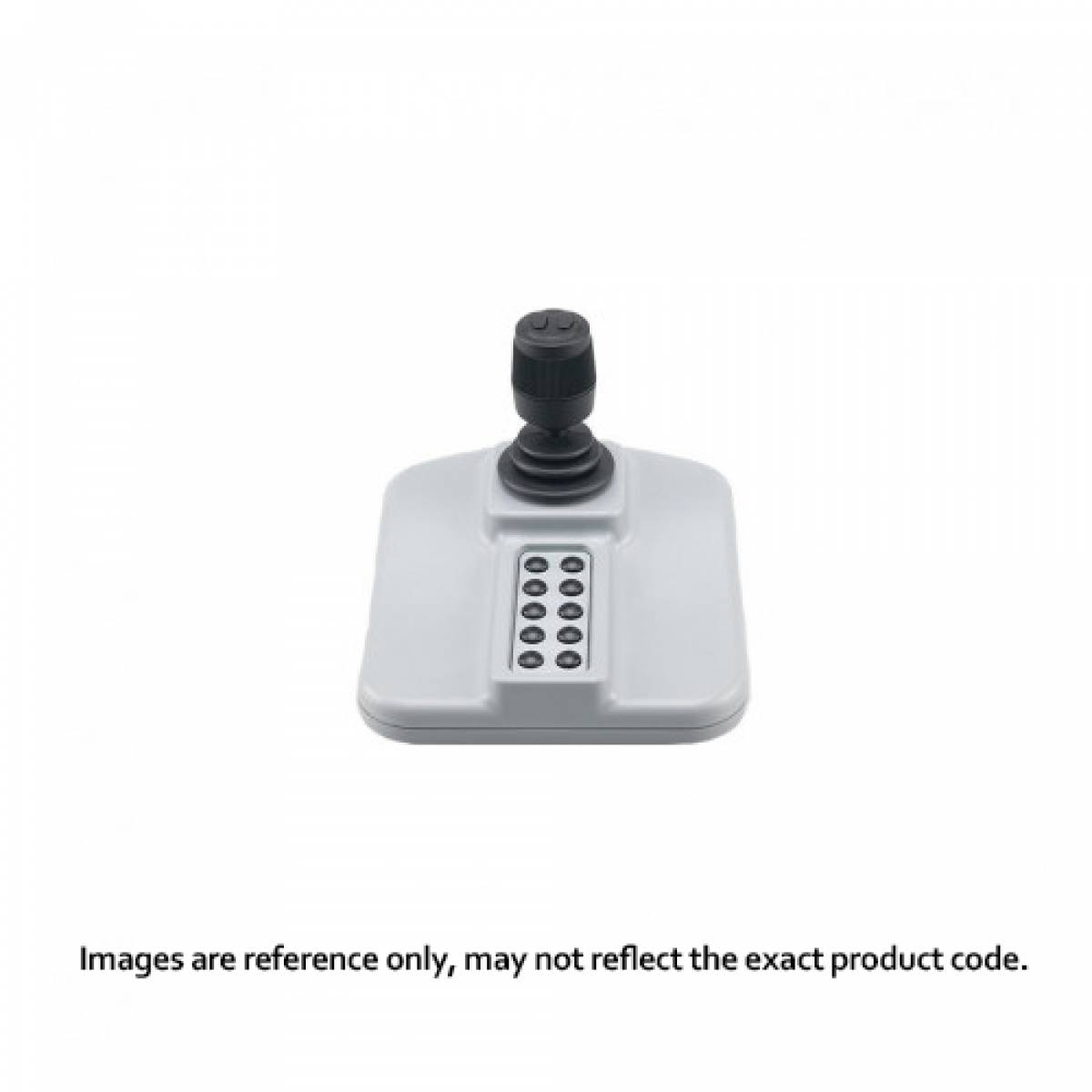

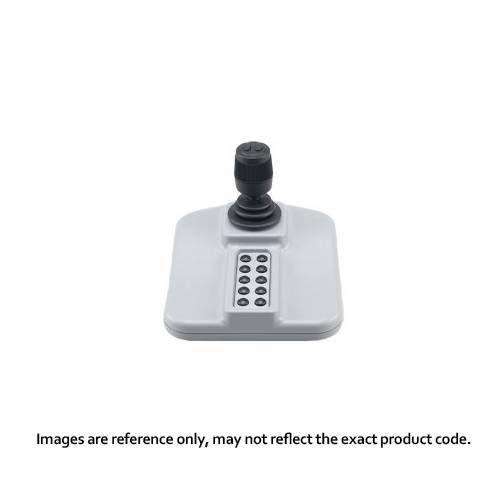

APEM IP Desktop Joystick

The network surveillance industry's #1 selling USB joystick,
the IP Desktop features a two button, three axis Hall effect joystick,
10 tactile pushbuttons and USB 1.1 interface. Recommended and used by
the most innovative companies in network surveillance,
the IP Desktop has become the industry standard for security professionals.

MAIN FEATURES

3 axis joysticks for pan / tilt / zoom (P/T/Z) control
Programmable pushbutton switches
USB 1.1 HID compliant "game controller"
Easy to use and operate

100550BLKRF IP DESKTOP Datasheet

400.00 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total

Property Name	Property Value

We'll Call You

Tags: apem ip desktop joystick 100550BLKRF

Description

GENERAL SPECIFICATION
• Systems support integration: Windows 7, 8, 10 & OSX
• Supported protocols: USB HID 1.1 game controller; Direct X (Gaming Control); Joystick: three HID axis; Pushbuttons: 12 HID buttons; Uses standard DirectX HID drivers; Connects directly to workstation PC

ENVIRONMENTAL SPECIFICATIONS
• Operating conditions: -25°C to +85°C (-13°F to +185°F)
• Approvals EN 55024:1998, EN 55022, CE
• FCC Part 15 Subpart B Class B
• RoHs compliant

Environmental: For indoor use only

ELECTRICAL SPECIFICATIONS
• Power: USB interface (5V DC)
• Consumption 32mA

MATERIALS
• Joystick shaft: Stainless steel
• Joystick boot: Neoprene
• Joystick handle: Glass filled nylon
• Desktop: High impact ABS housing

MECHANICAL SPECIFICATIONS
• Joystick performance: • Hall effect three axis joystick
• X/Y/Z for positioning control
• Joystick travel: • 36° for X and Y axis, 60° f or Z axis
• Centering: Single spring, omni-directional
• Pushbutton performance:
• 10 tactile pushbuttons on housing
• Two tactile pushbuttons on joystick
• 3,000,000 cycles
