100590

GENERAL SPECIFICATION

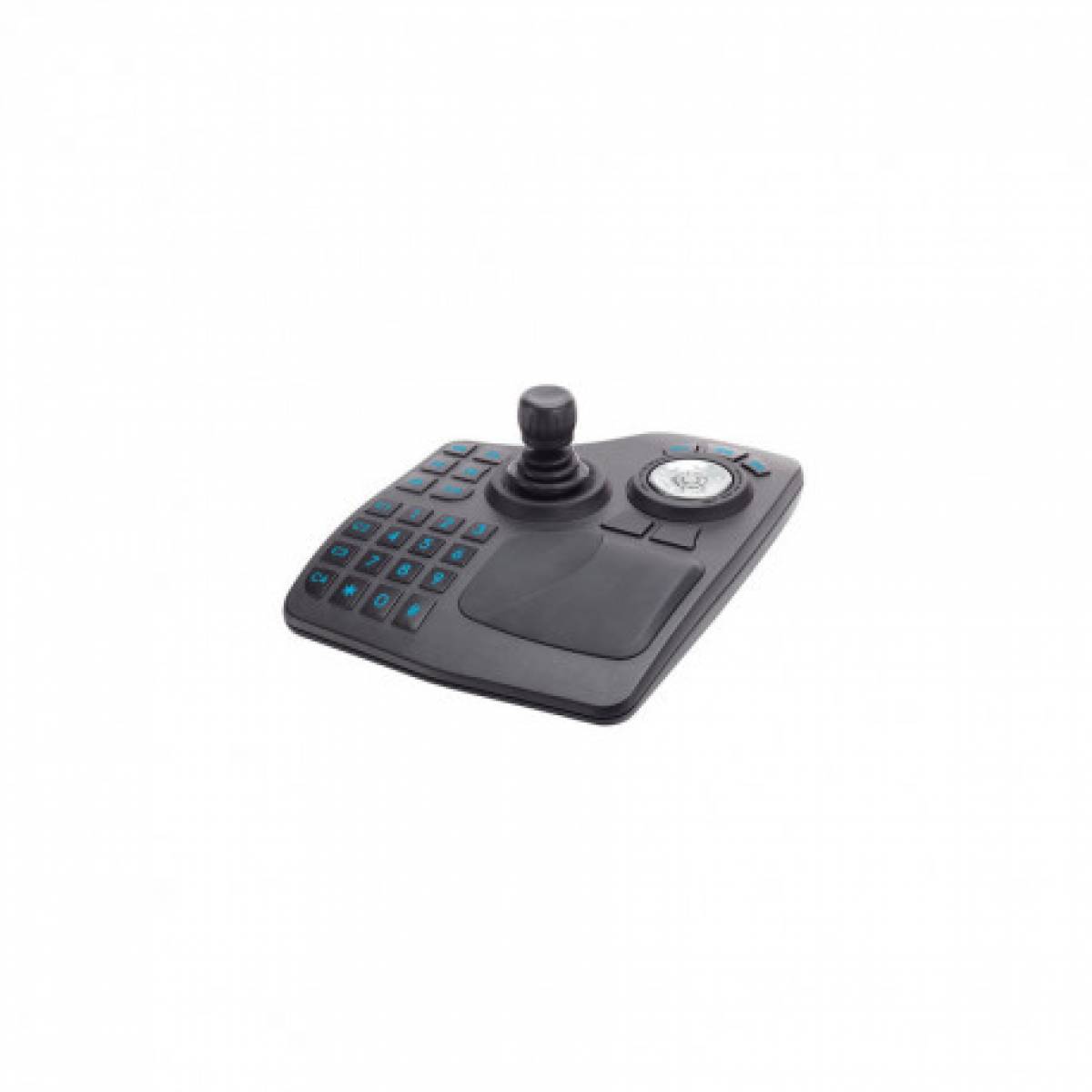

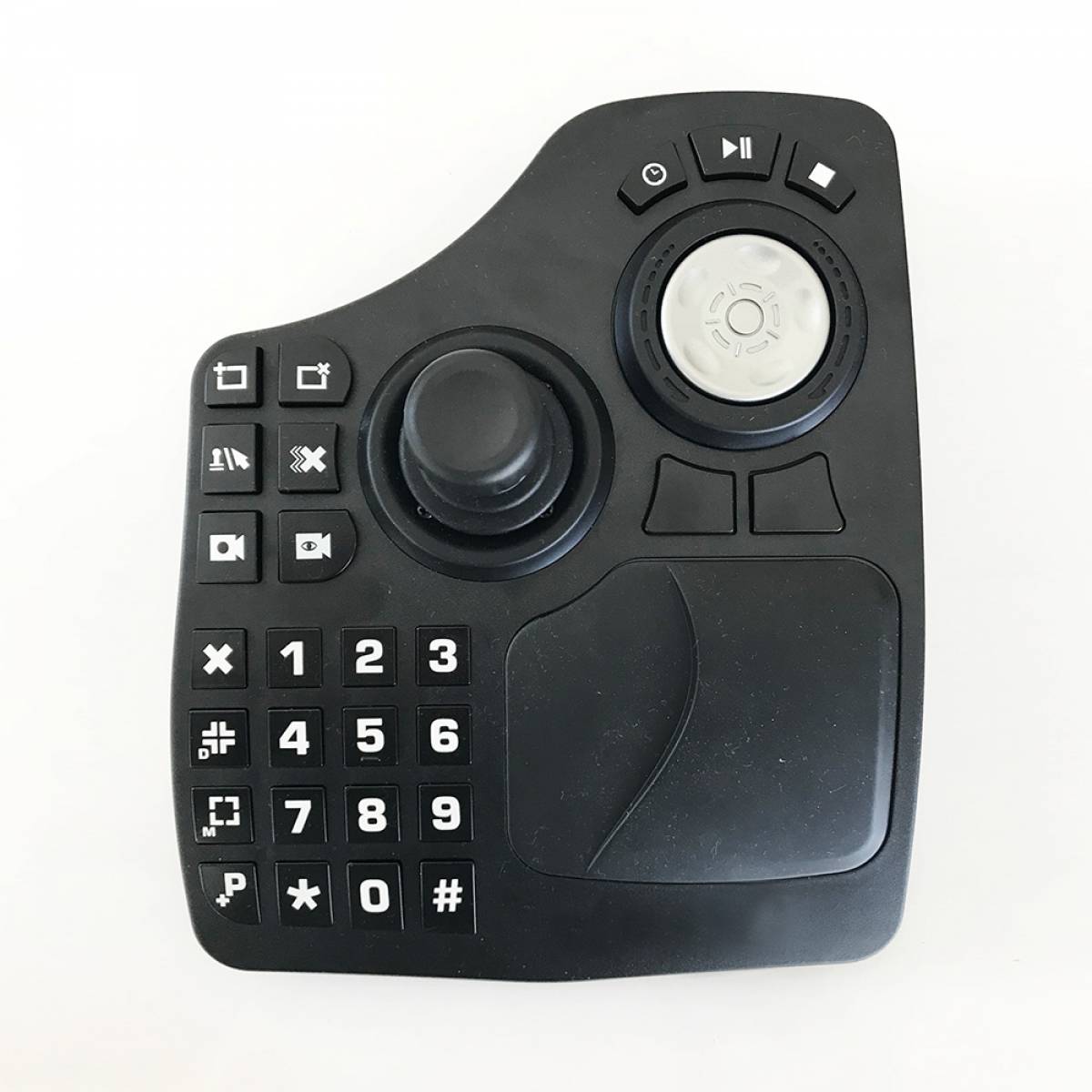

• 3 axis joystick for pan / tilt / zoom (P/T/Z) control
• 27 programmable pushbuttons
• Jog / shuttle dial
• USB 1.1 HID compliant "game controller"
• Easy to use and operate
• Functions determined by controlled application

ENVIRONMENTAL SPECIFICATIONS
• Operating conditions: -25°C to +85°C (-13°F to +185°F)
• Approvals: EN 55024:1998, EN 55022,
• FCC Part 15 Subpart B Class B
• RoHs compliant
For indoor use only

ELECTRICAL SPECIFICATIONS
• Power: USB interface (5V DC)
• Consumption 1A

MATERIALS
• Desktop housing: High impact ABS
• Joystick shaft: Stainless steel
• Joystick boot: Neoprene
• Joystick handle: Glass filled nylon
• Jog/shuttle performance: Spring loaded shuttle ring travel ±40°; Smooth action knob rotates 360°

MECHANICAL SPECIFICATIONS
• Joystick performance: • Hall effect three axis joystick • X/Y/Z for positioning control
• Joystick travel: • 36° for X and Y axis • 60° for Z axis
• Centering: Single spring, omni-directional
• Pushbutton performance: 27 programmable pushbuttons rated for 500,000 life cycles
• Lighting: high efficiency LED
• Pushbutton material: silicon
• “Mouse” pushbuttons are rated for 10 million life cycles
