Description

Brand APEM
Product CodeTW11BLK13
Stock Status200
Stock200

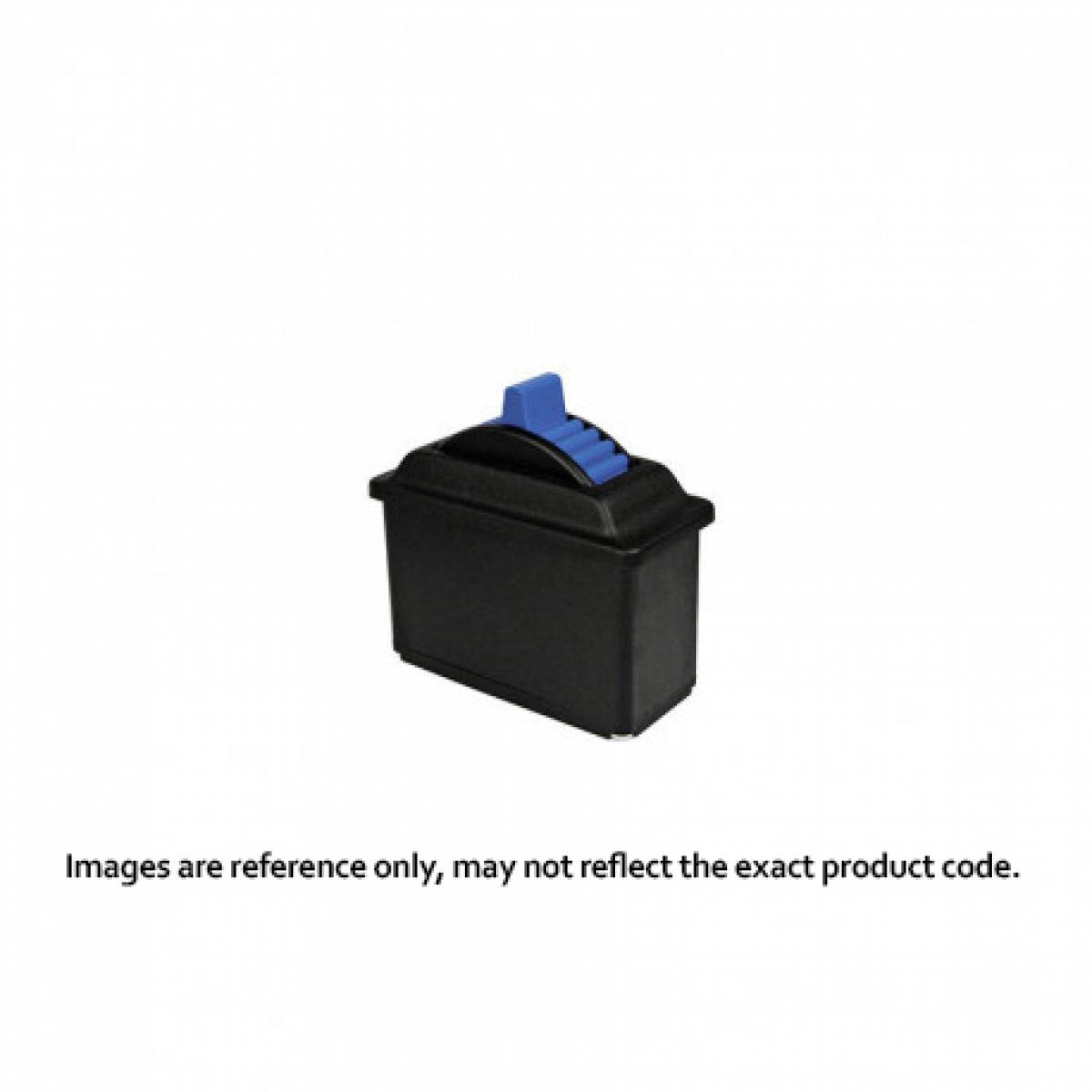

APEM TW Serisi Mini Parmak Joystick

The TW Series Thumbwheel is a minimum width,
low profile joystick that provides smooth,
precise fingertip control in one axis.
Featuring non-contacting Hall effect technology for long life performance,
the TW series offers excellent proportional control, stable output,
long life and is designed for panel mount applications and joystick integration.
The TW series includes a wide range of configuration options
including voltage output range, wheel color and style.

MAIN FEATURES
Analog outputs
Spring return to center
Non-contact Hall effect technology
Electronics sealed up to IP67
5 million lifecycles
Choice of 4 wheel colors

TW Series Datasheet

SERIES

120.00 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total

Property Name	Property Value
SERIES	TW
MODEL	With Tab
OUTPUT OPTIONS	0V to 5V
SPRING TENSION	Standard

We'll Call You

Tags: apem tw fingertip joystick TW11BLK13

Description

GENERAL SPECIFICATION
• Hall effect technology
• Proportional control
• Break Out Force: 0.7N (0.15lbf)
• Mechanical Angle of Movement: 80º (±40º from center)
• Expected Life: 5 million cycles
• Lever Action (centering): Spring centering

ENVIRONMENTAL SPECIFICATIONS
Operating Temperature: -40ºC to +85ºC (-40ºF to +185ºF)
• Storage Temperature: -40ºC to +85ºC (-40ºF to +185ºF)
• Sealing: IP67*
• EMC Immunity Level: EN61000-4-3 (extended)
• EMC Emissions Level: EN61000-6-3:2001
• ESD: EN61000-4-2 (extended)

ELECTRICAL SPECIFICATIONS
• Sensor: Hall effect
• Resolution: 1.22mV
• Supply Voltage Range: 5V ± .250V
• Reverse Polarity Max: -10V
• Overvoltage Max: 20V
• Output Impedance: 2?
• Return to Center Voltage (No Load): ±200mV
• Error Signal: 1.0%

MATERIALS
• Glass filled nylon

MECHANICAL SPECIFICATIONS
• Break Out Force: 0.7N (0.15lbf)
• Mechanical Angle of Movement: 80º (±40º from center)
• Expected Life: 5 million cycles
• Lever Action (Centering): Spring centering
