12156A2V

Print this page

Description

Brand APEM
Product Code12156A2V
Stock Status1
Stock1

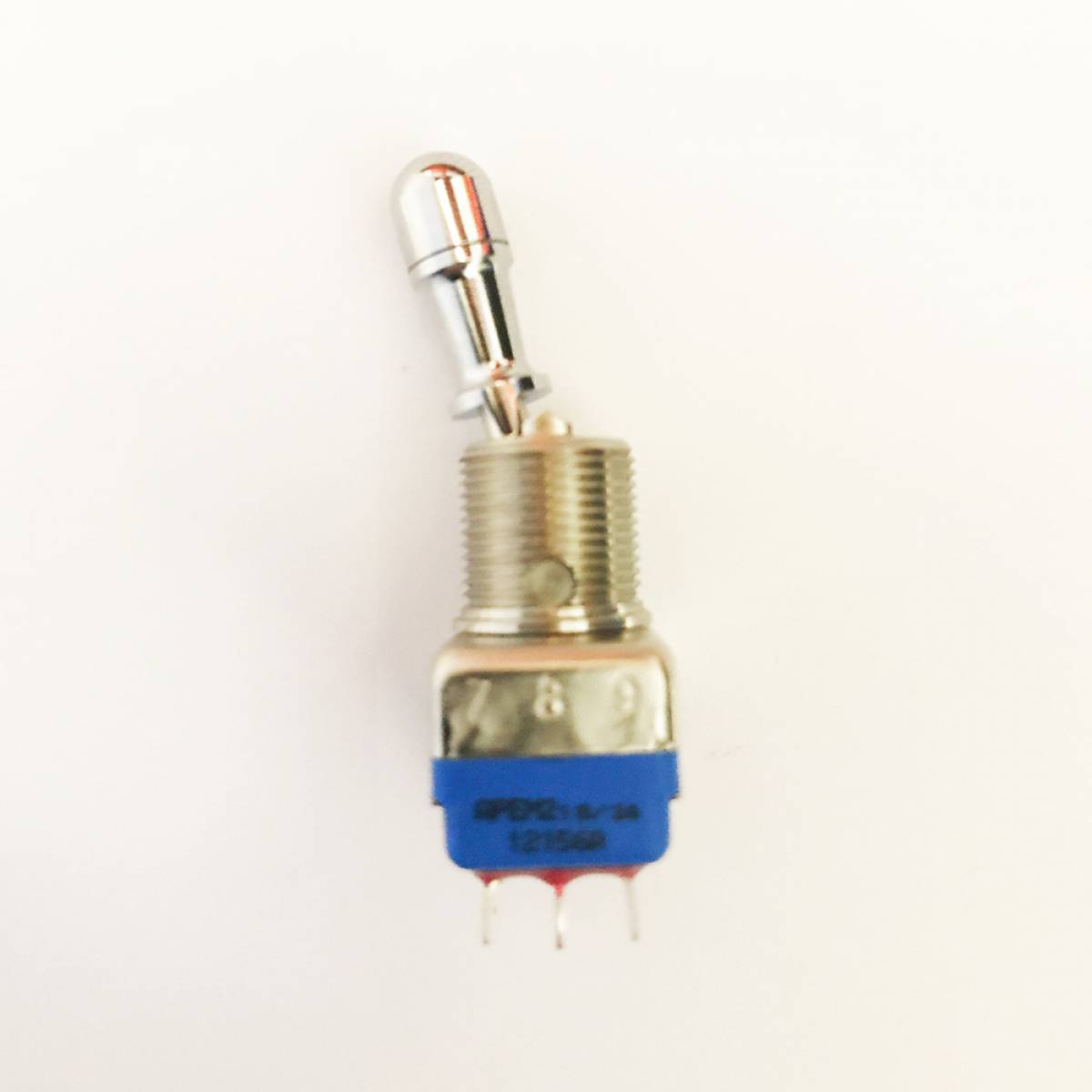

APEM 12000 Series Four Pole ONON Toggle Switch

Toggle switches specially manufactured for defense, telecommunications and other industrial applications.
1, 2, 3 and 4 pole configurations, silver, gold-plated silver or solid gold rivet contacts.
Several front panel sealing options. Bright chrome, satin chrome or matt black finish. CECC approved.
Several locking lever options.

12000 Series Datasheet

12156A2V 3D Drawing

SERIES

590.69 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total
10	65.63 €	656.30 €
40	62.51 €	2,500.40 €
60	52.19 €	3,131.40 €

Property Name	Property Value
SERIES	12000
TERMINALS AND BUSHINGS	Solder lug terminals
NUMBER OF POLES	Three Pole
ELECTRICAL FUNCTIONS	ON - ON
MOMENTARY FOR FUNCTION 4	Other Options(see sheet)
CONTACT MATERIALS	Silver
FINISH	Nickel plated
SEALING	Epoxy sealed terminals standard
FLUORESCENT TIP	None
LEVERS	2 locked position

We'll Call You

Description

GENERAL SPECIFICATION

• Torque:1.50 Nm (1.10 Ft.lb) max. applied between the 2 nuts

• Standard panel thickness: 4.5 mm (.177) max.

ENVIRONMENTAL SPECIFICATIONS

• Operating temperature : -40 °C to +85 °C (-40 °F to 185 °F)

ELECTRICAL SPECIFICATIONS

• Max. current/voltage rating with resistive load:

- silver contacts (A-AD2-X780): 4 A 30 VDC

- gold contacts (D): 100 mA 30 VDC

• Minimum load: AD2-X780-D contacts: 10 mA 50 mV, 10 µA 5 V min.

• Initial contact resistance: 10 m? max.

• Insulation resistance: 1.000 M? min. at 500 VDC

• Dielectric strength:

1,000 Vrms 50 Hz min. between terminals

2,000 Vrms 50 Hz min. between poles and between terminals and frame

• Contact bounce: 2 ms max.

MATERIALS

• Case: diallylphthalate (DAP)

• Actuator: brass, chrome plated

• Bushing: brass, nickel plated

• Housing: brass, nickel plated

• Contacts

A: silver

AD2: gold plated silver (2 microns gold)

X780: solid rivet - gold plated silver/nickel alloy

D: solid gold rivet

X910: silver/nickel alloy

• Terminal seal: epoxy

• AD2 and X780 contacts can be used for high-level applications. In this case, the gold layer is considered only as a protection against oxidation during storage.
