1706

Print this page
Description
  • Brand APEM
  • Product Code1706
  • Stock StatusPre-order
  • Stock0

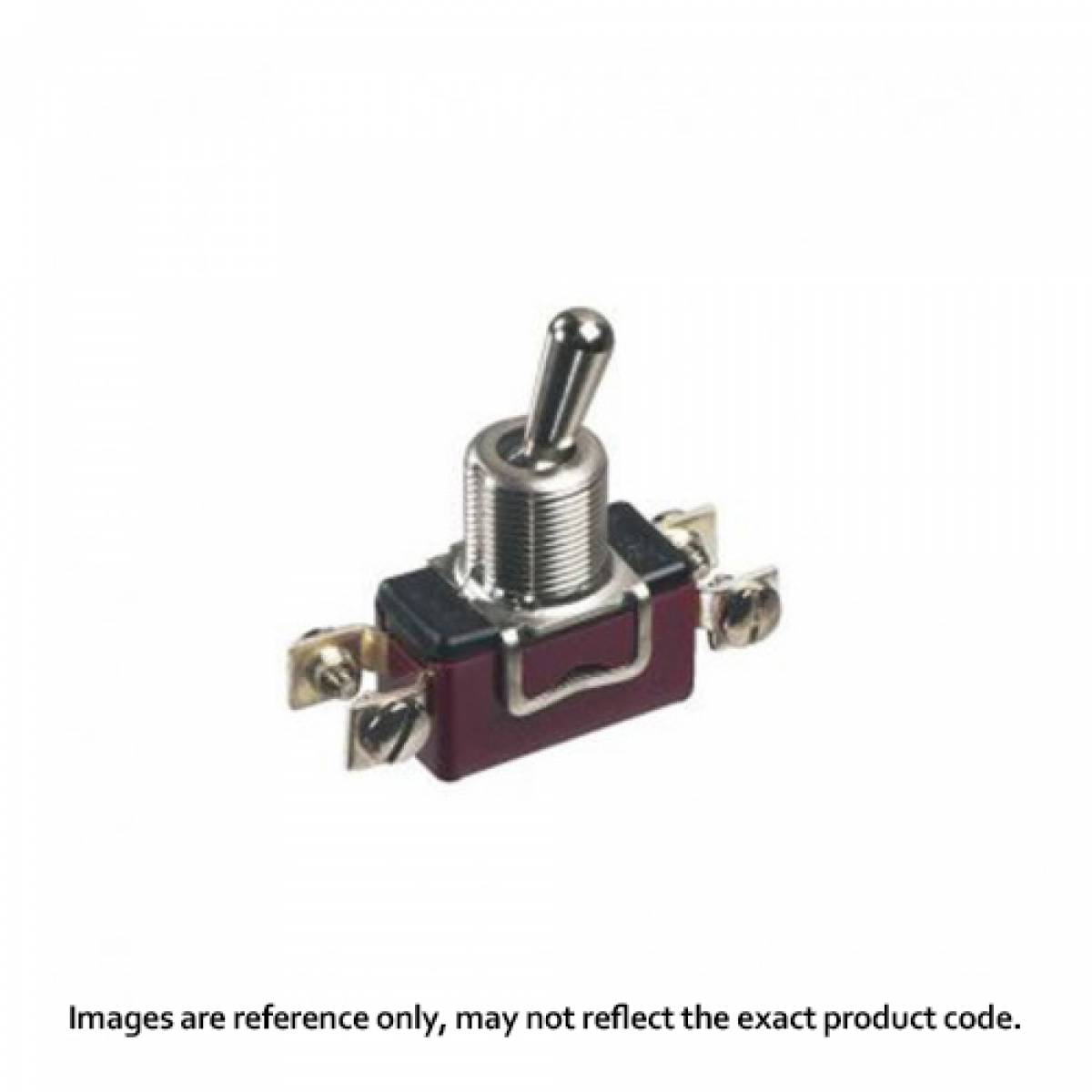

APEM 1700 Series Black Lever ONON Toggle Switch

Single pole 1600-1700 series toggle switches with brass nickel plated lever.

MAIN FEATURES
Variety of actuator styles and colors
Solder lug or quick connect terminals
2 and 3 maintained positions.
6.00 €
Piece
Piece Unit price Total
Property Name Property Value
We'll Call You


Thank you,
We will contact you as soon as possible

Send
  • GENERAL SPECIFICATION
    • Torque: 1.50 Nm (1.10 Ft.lb) max. applied to nut
    • Panel thickness: 5 mm (.196) max.


    ENVIRONMENTAL SPECIFICATIONS
    • Operating temperature : -20 °C to +55 °C (-20 °F to 131 °F)


    ELECTRICAL SPECIFICATIONS
    • Max. current/voltage rating with resistive load: 4 A 30 VDC
    • Initial contact resistance: 10 m? max.
    • Insulation resistance: 1,000 M? min. at 500 VDC
    • Dielectric strength:
    2,000 Vrms 50 Hz min. between terminals
    2,000 Vrms 50 Hz min. between poles and between terminals and lever
    • Electrical life: 10,000 cycles at full load


    MATERIALS
    • Case: phenolic resin
    • Actuator:
    1600 models: brass nickel plated
    1700 models: polyamide
    • Bushing: brass, nickel plated
    • Contacts: phosphor bronze and brass, silver plated
