18535A

Print this page
Description
  • Brand APEM
  • Product Code18535A
  • Stock Status1044
  • Stock1044

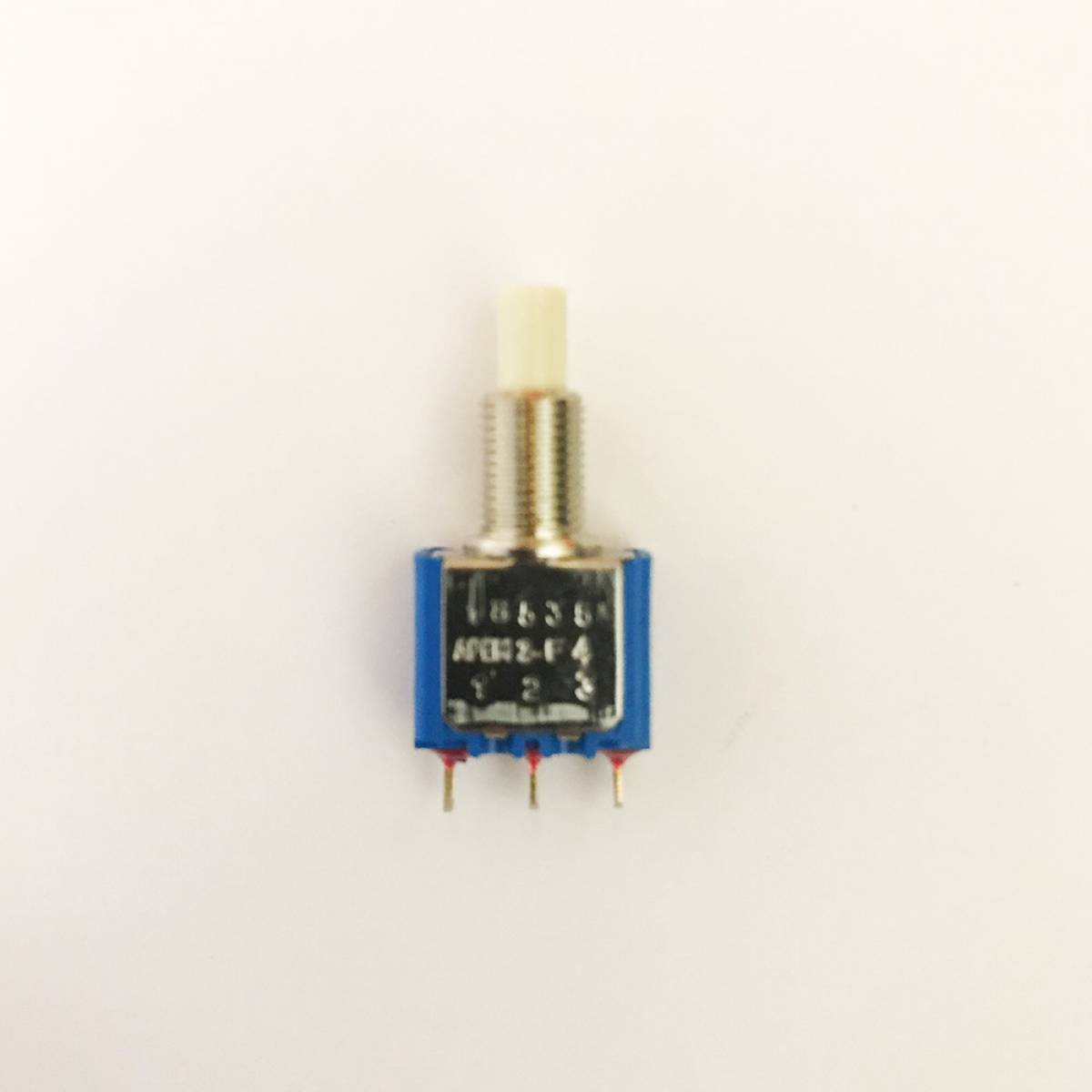

APEM 18000 Series PushButton

Snap-action momentary pushbutton switches with many terminal, mounting, and special option selections.
56.53 €
Piece
Piece Unit price Total
50 6.28 € 314.00 €
100 3.92 € 392.00 €
1000 2.96 € 2,960.00 €
Property Name Property Value
SERIES 18000
TERMINALS AND BUSHINGS Solder lug terminals with dia. 6.35 (1/4) threaded bushing
NUMBER OF POLES Single Pole
ELECTRICAL FUNCTIONS ON - MOM
TERMINALS Solder lugs or straight PC depending on model
CONTACT MATERIALS Silver
PLUNGERS Ø 4 (.157), long
We'll Call You


Thank you,
We will contact you as soon as possible

Send
  • GENERAL SPECIFICATION
    • Total travel : 0.5 mm (.019)
    • Torque : 1.25 Nm (.922 Ft.lb) max. applied to nut
    • Soldering : 300 °C, 3 sec. max.

    ENVIRONMENTAL SPECIFICATIONS
    • Operating temperature : -30 °C to +65 °C

    ELECTRICAL SPECIFICATIONS
    • Max. current/voltage rating with resistive load :
    - gold plated brass contacts : 100 mA - 30 VDC
    - gold plated silver contacts : 1 A 30 VDC
    • Initial contact resistance : 50 m? max.
    • Insulation resistance : 1,000 M? min.
    • Dielectric strength : 1,000 Vrms 50 Hz min.
    • Electrical life : 60,000 cycles at full load

    MATERIALS
    • Case : PBT
    • Actuator : polyamide, glass filled
    • Bushing : brass, nickel plated
    • Housing : stainless steel
    • Bracket : tin plated steel
    • Contacts
    AD : silver, gold plated
    CD : brass, gold plated
    • Terminal seal : epoxy
