AV09C7L3D2403E

Name: AV09C7L3D2403E
Brand: APEM
Price: 93811 € EUR
Availability: InStock
Rating: 0 (0 reviews)

Print this page

Description

Brand APEM
Product CodeAV09C7L3D2403E
Stock Status79
Stock79

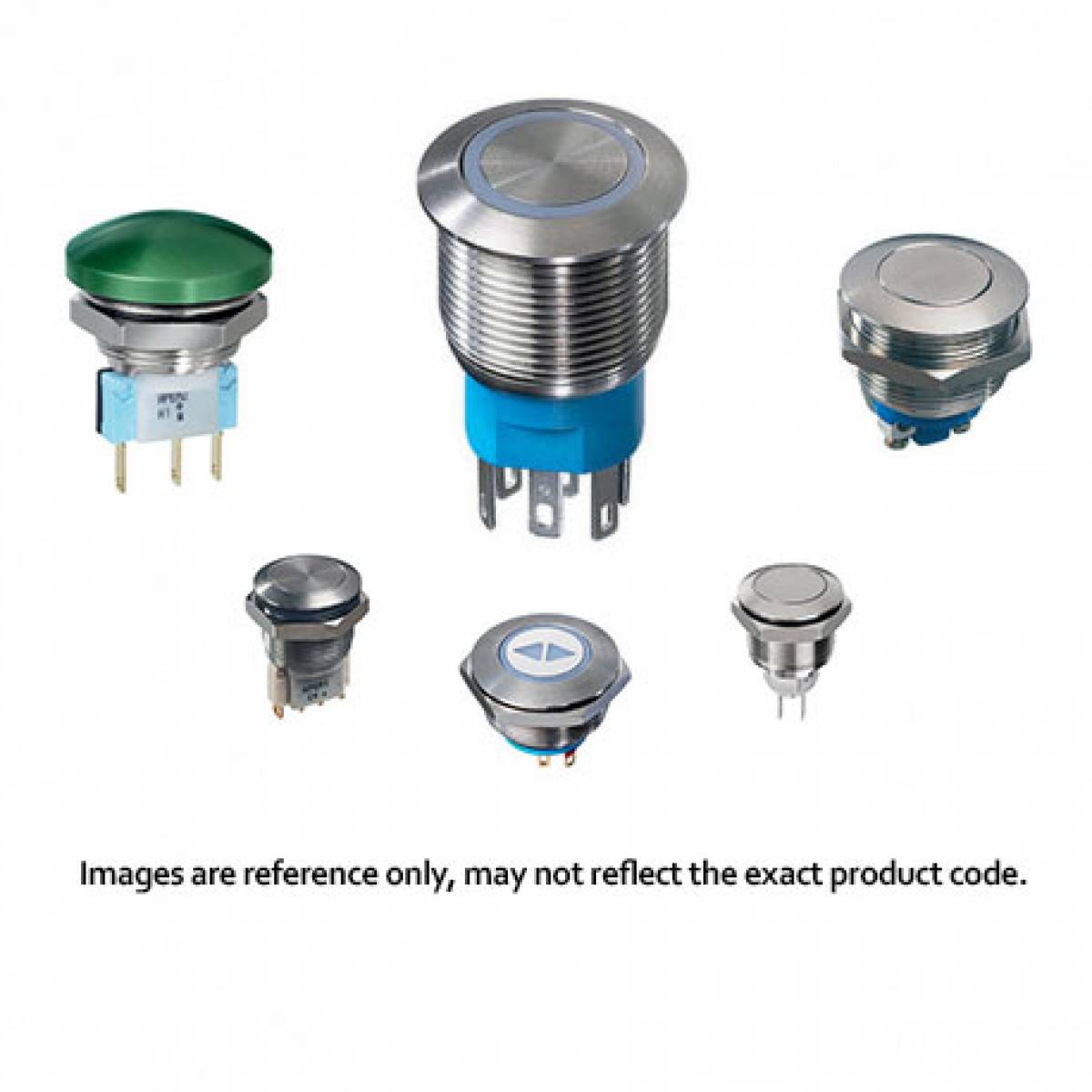

APEM AV Series NO Pushbutton Switch

The AV Series pushbuttons offer attractive, robust and durable switches,
available with different bushing diameters, actuator shapes, bushing and actuator materials.
Anti-vandal or security models.

MAIN FEATURES
Security pushbutton switches
Momentary (NO)
Models with flat or curved actuator
Marking available
Optionally sealed to IP65

SERIES

938.11 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total
20	104.23 €	2,084.60 €
40	86.25 €	3,450.00 €
60	56.93 €	3,415.80 €
100	43.97 €	4,397.00 €
500	37.10 €	18,550.00 €
1000	32.26 €	32,260.00 €

Property Name	Property Value
SERIES	AV
CONTACTS	Silver
BUSHING/ACTUATOR MATERIALS	Nickel plated brass / Nickel plated brass
SEALING	No sealing

We'll Call You

Tags: apem AV09C7L3D2403E AV series pushbutton switch emergency stop

Description

GENERAL SPECIFICATION
• Travel : 1.60 mm (.063) ± 0.3 mm (.011)
• Torque : 5 Nm min.- 14 Nm max. applied to nut
• Panel thickness : 1 (.039) to 6 mm (.236) max.
• Low level or mechanical life : 1,000,000 cycles
• Panel cut-out : Ø 16.2 mm (.637)
• Min. pitch for matrix mounting : 24 mm x 24 mm (.944 x .944) (AV6P & AV6B : 20 mm x 20 mm)
ENVIRONMENTAL SPECIFICATIONS
• Operating temperature : -30 °C to +70 °C
ELECTRICAL SPECIFICATIONS
• Max. current/voltage rating with resistive load : 200 mA 48 VDC - 100 mA 48 VDC
• Initial contact resistance : 50 m? max.
• Insulation resistance : 1,000 M? min. at 500 VDC
• Dielectric strength : 2,000 Vrms 50 Hz min. between terminals and frame
• Electrical life :
50,000 cycles at 200 mA 48 VDC
100,000 cycles at 100 mA 48 VDC
MATERIALS
• Case : PBT
• Contacts : brass, silver plated (C)
