4833C03

Print this page

Description

Brand APEM
Product Code4833C03
Stock StatusPre-order
Stock0

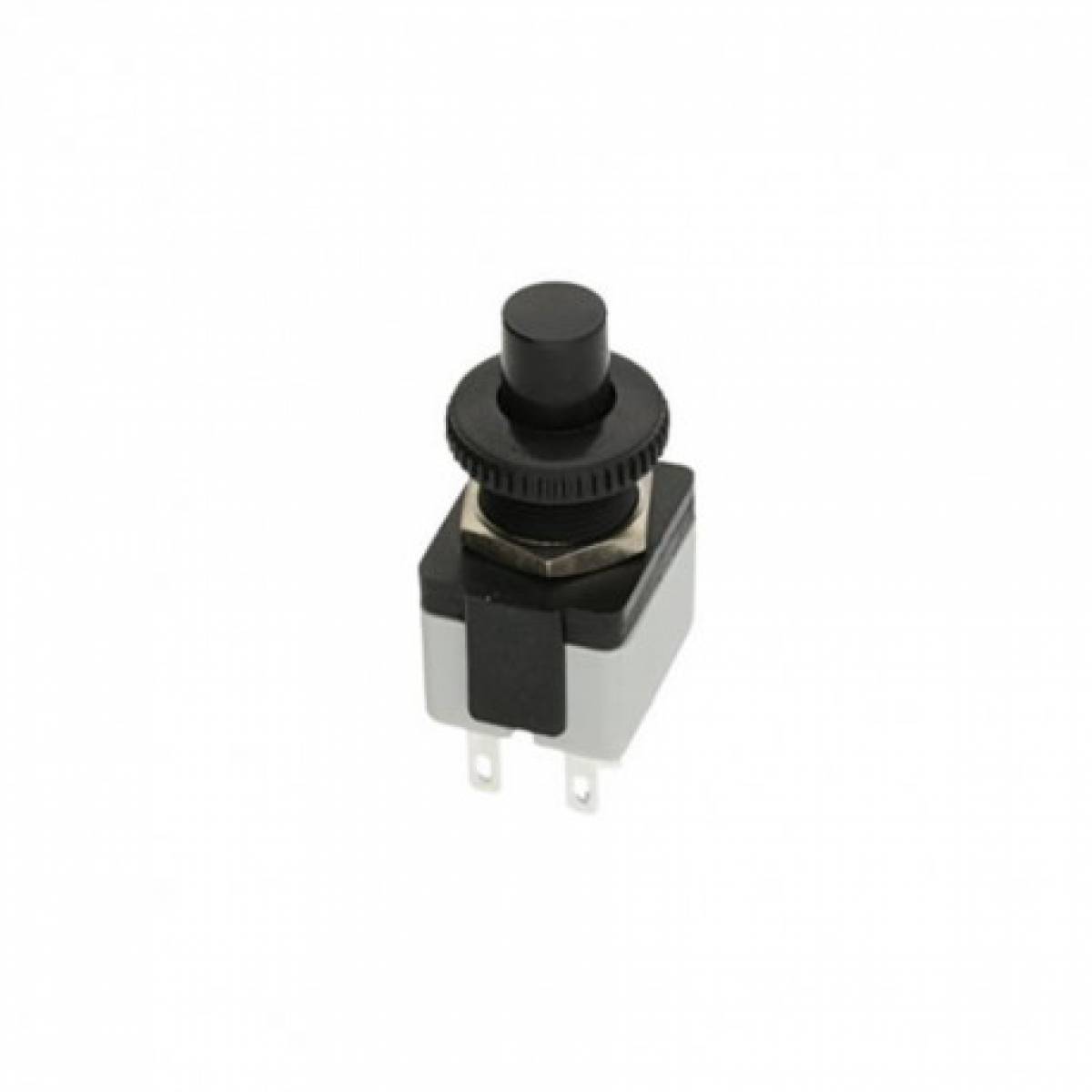

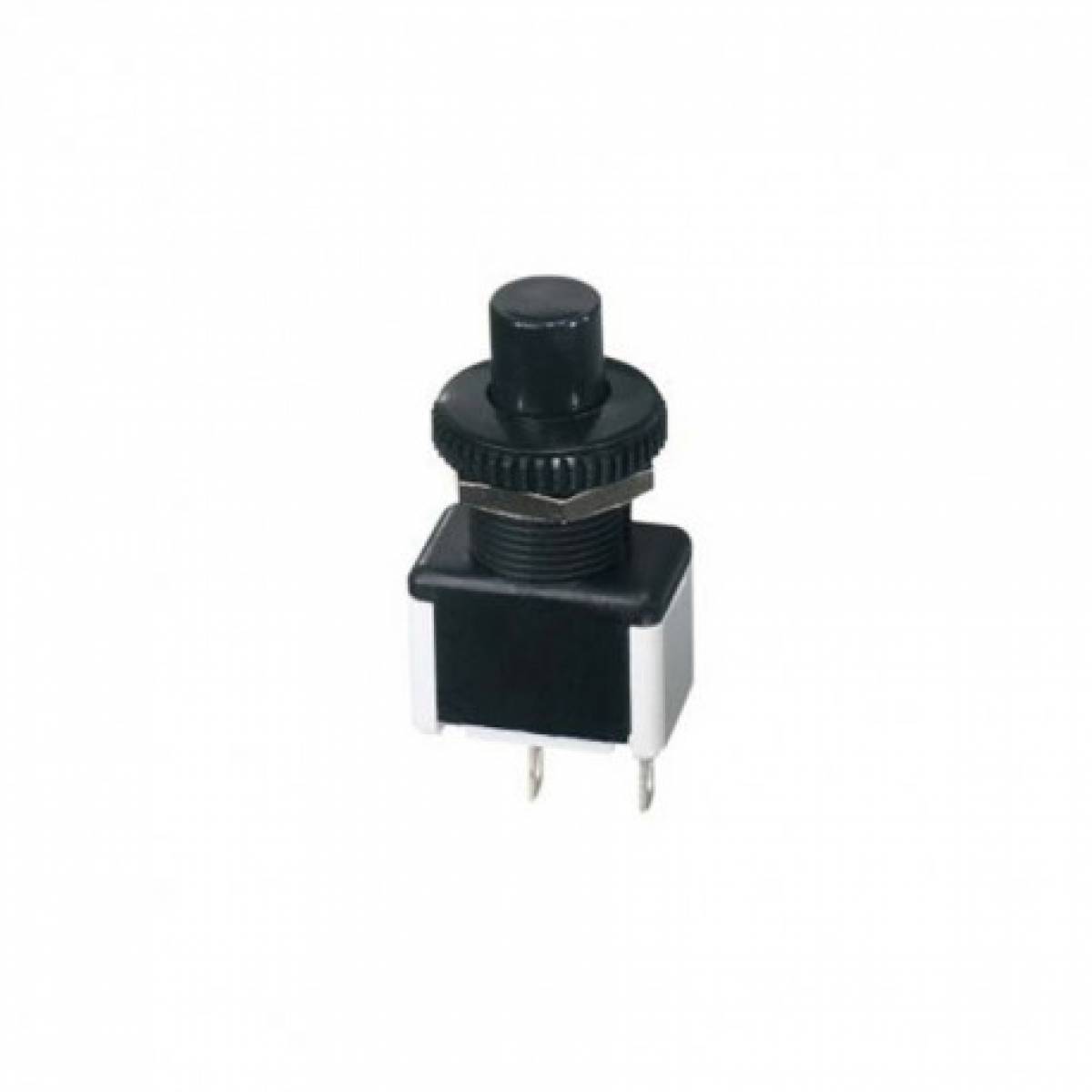

APEM 4800 Series Double Pole OFFMOM Toggle Switch

Momentary or alternate action pushbutton switches.
Single pole and double pole configurations are available with solder lug,
quick connect or straight PC terminals.

MAIN FEATURES

Panel cut-out : Ø 12,2 (.480)
Butt action contacts
Button returns in upper position after actuation.
UL, CSA and VDE (EN 61058-1) approved
Several actuator colors

4800 Series Datasheet

2.50 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total

Property Name	Property Value
SERIES	4800
TERMINALS	Straight PC
NUMBER OF POLES	Single Pole
ELECTRICAL FUNCTIONS	OFF - MOM
CONTACT MATERIALS	Copper, silver plated (not available on models with quick-connect terminals /8)

We'll Call You

Description

GENERAL SPECIFICATION
• Torque : 0.95 Nm (.70 Ft.lb) max. applied to nut
• Panel thickness : 5 mm (.196) max. between 2 nuts
• Total travel : 4.5 mm (.177) +/- 0.5 (.019)
• Hand soldering : 270 °C max. for 10 seconds max. - Iron Ø 3 mm (.118)

ENVIRONMENTAL SPECIFICATIONS
• Operating temperature : -20 °C to +65 °C

ELECTRICAL SPECIFICATIONS
• Max. current/voltage rating with resistive load :
- silver contacts (A) : 3 A 250 VAC - 6 A 125 VAC
- copper contacts (C) : 2 A 250 VAC - 4 A 125 VAC
• Initial contact resistance : 10 m? max.
• Insulation resistance : 1,000 M? min. at 500 VDC
• Dielectric strength :
2,000 Vrms 50 Hz min. between terminals
3,000 Vrms 50 Hz min. between terminals and frame
• Electrical life : 10,000 cycles at full load

MATERIALS
• Case : melamine-phenolic
• Plunger : polyamide
• Bushing : polyamide
• Contacts : A : silver
C : copper, silver plated

APPROVALS
CSA UL VDE
