SP35WW00000

Print this page
Description
  • Brand APEM
  • Product CodeSP35WW00000
  • Stock Status193
  • Stock193

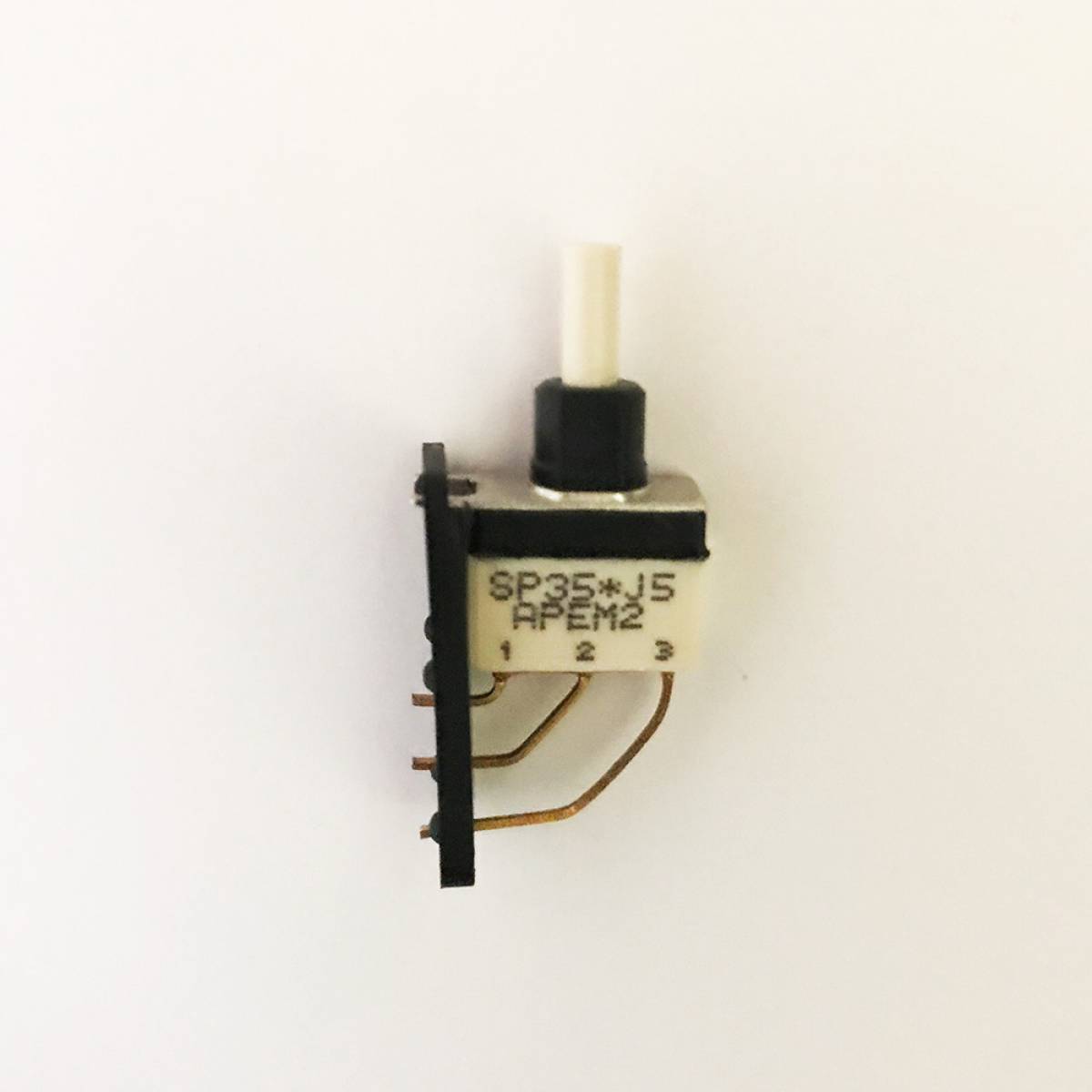

APEM SP Series Single Pole Pushbutton

Single and double pole momentary pushbutton switches with silver or gold plated contacts.
Panel or PC mount, rated up to 1 amp, UL models available.

MAIN FEATURES
Sealed : Secure assembly of the two case parts, Internally sealed bushing, Epoxy sealed terminals
Process compatible (plain bushing models) : Wave solderable, Washable
89.75 €
Piece
Piece Unit price Total
50 9.97 € 498.50 €
100 6.22 € 622.00 €
1000 4.69 € 4,690.00 €
Property Name Property Value
SERIES SP
SERIES SP
NUMBER OF POLES Single Pole
ELECTRICAL FUNCTIONS ON - MOM
TERMINALS Right angle, vertical mounting
CONTACT AND TERMINAL Brass, gold plated
PLUNGERS Standard
OPTIONS / APPROVAL Standard model
We'll Call You


Thank you,
We will contact you as soon as possible

Send
  • GENERAL SPECIFICATION
    • Torque : 0.25 Nm (.18 Ft.lb) applied to nut (threaded bushing)
    • Total travel : 0.50 mm (.019)
    • Soldering - thermal shock (plain bushing models only) : switches are especially designed for flow soldering at 260 °C during 5 seconds owing to high temperature polymer parts.
    • Iron soldering (threaded bushing models) : 300 °C max., 5 seconds max.
    • Solderability : tested at 235 °C according to IEC 68-2-20 after accelerated aging.

    ENVIRONMENTAL SPECIFICATIONS
    • Operating temperature : -20 °C to +85 °C
    • Storage temperature : -40 °C to +85 °C
    • Moisture : insulating materials employed and complete seal permit
    the switches to withstand a 56 days moisture test (IEC 68-2-3).

    ELECTRICAL SPECIFICATIONS
    • Max. current/voltage rating with resistive load :
    - gold plated brass contacts : 100 mA 30 VDC
    - silver or gold plated silver contacts : 1 A 30 VDC
    • Initial contact resistance : 50 m? max.
    • Insulation resistance : 1,000 M? min.
    • Dielectric strength : 1,000 Vrms 50 Hz min.
    • Electrical life : 60,000 cycles

    MATERIALS
    • Case and cover : UL94-V0, polyamide, glass filled or PES
    • Actuator : polyamide, glass filled
    • Contacts
    0 : brass, gold plated
    1 : silver
    2 : silver, gold plated
    • Terminal seal : epoxy

    MECHANICAL SPECIFICATIONS
    • Mechanical strength : Terminals are strengthened by a bracket or
    a ground plate ensuring the rigidity of the switch on the board. Actuator strength is 10 N max.
