4P192H1AR55113

Print this page
Description
  • Brand APEM
  • Product Code4P192H1AR55113
  • Stock StatusPre-order
  • Stock0

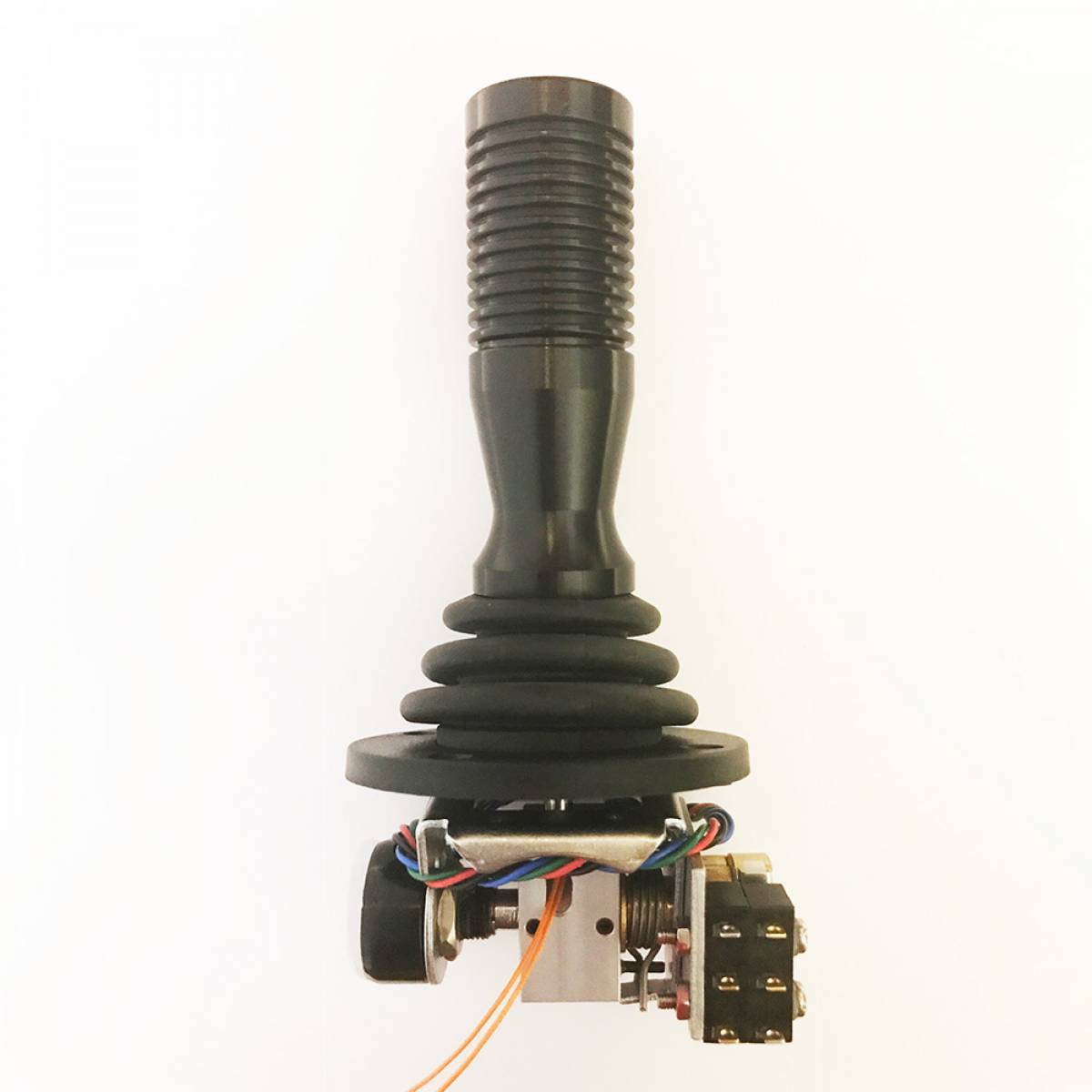

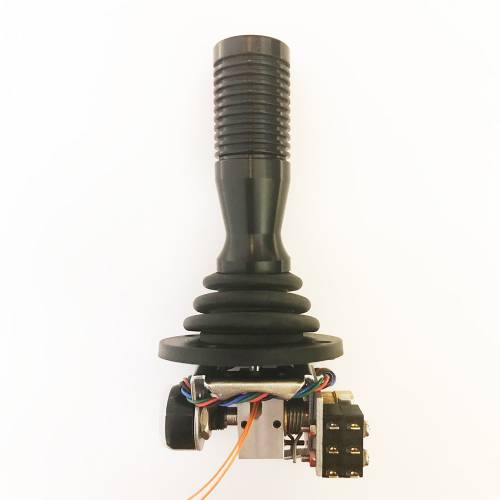

APEM 4000 Series Single Axis with Potentiometer Pushbutton Joystick

The 4000 Series is a range of robust, industrial quality potentiometer
joysticks for internal and external applications. All 4000 Series share the same,
all metal mechanism to provide the finest performance and service life
over a wide range of temperatures and loads. All 4000 Series employ
high quality plastic film potentiometers, yielding a service life of many millions of cycles.

MAIN FEATURES
Two standard mounting options
Low current drain
Variety of potentiometer options
Robust
All metal mechanism
IP65 above panel
Inherently immune to RFI
Optional center-detect micro-switching
Available in two body variants
420.00 €
Piece
Piece Unit price Total
Property Name Property Value
SERIES 4000
BODY Open
AXIS One
POTS 5K 55° +CT
BEZEL None
MODIFIER None
We'll Call You


Thank you,
We will contact you as soon as possible

Send
  • GENERAL SPECIFICATION
    • Two standard mounting options
    • Low current drain
    • Variety of potentiometer options
    • Robust
    • All metal mechanism
    • IP65 above panel
    • Inherently immune to RFI
    • Optional center-detect microswitching
    • Available in two body variants

    ENVIRONMENTAL SPECIFICATIONS
    • Temperature Range: -20°C to +55°C (-4°F to +131°F)
    • Linearity: ±2%
    • Output Smoothness: 0.1% max.
    • Power Rating: 1W at 70°C (158°F) - Derate to 0W at 125°C (257°F)
    • Above Panel Seal: IP65 (subject to handle)

    ELECTRICAL SPECIFICATIONS
    • Insulation Resistance: 1000MOhms, 500VDC

    MATERIALS
    • Lever Material: Stainless Steel
    • Body Material: Glass Filled ABS or Steel
    • Handle Material: See Guide
    • Boot Material: Neoprene or santoprene
    • Other Materials: Brass

    MECHANICAL SPECIFICATIONS
    • Life Cycles: > 5 Million Operations
    • Angle of Travel: 27.5° (X,Y) and 50° (Z)
