Description

Brand KLIXON
Product Code78557200
Stock StatusPre-order
Stock0

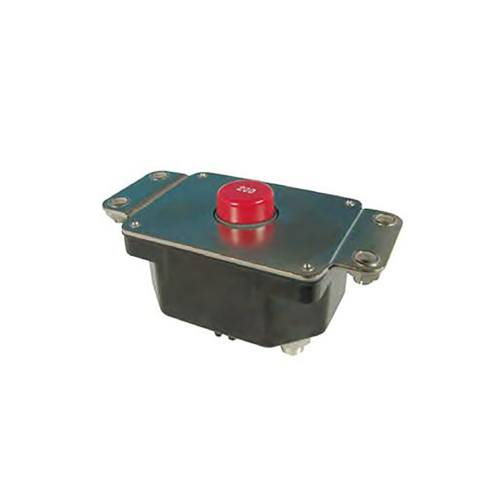

Klixon 7855 Series 20 Amp Circuit Breaker

Features
• 30VDC, 175 to 200 Amps
• Sealed assemblies, manual and automatic reset options
• Ignition protected
• 7855-6 meets CID A-A-55571/03 specifications
• 7855-7 meets CID A-A-55571/08 specifications

7855 Series Datasheet

456.00 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total

Property Name	Property Value

We'll Call You

Description

Calibration : 200% rated current, 77°F (25°C) 8 to 100 seconds

Ultimate Trip At 77°F (25°C) Must hold 100%, Must trip 138%

Endurance Manual 500 cycles @ 200% - Automatic 2000 cycles @ 200%

Interrupt Current Capacity Per SAE J1625, 900A

Vibration 10G MIL-STD-202 Method 204, Condition A

Dielectric Strength MIL-STD-202, Method 301, 1500VAC min

Insulation Resistance e MIL-STD-202, Method 302, Condition B, 100 MΩ min

Weight ht 7855-6 : 241 grams max - 7855-7 : 237 grams max
