Description
  • Brand APEM
  • Product CodeA0105X
  • Stock Status10
  • Stock10

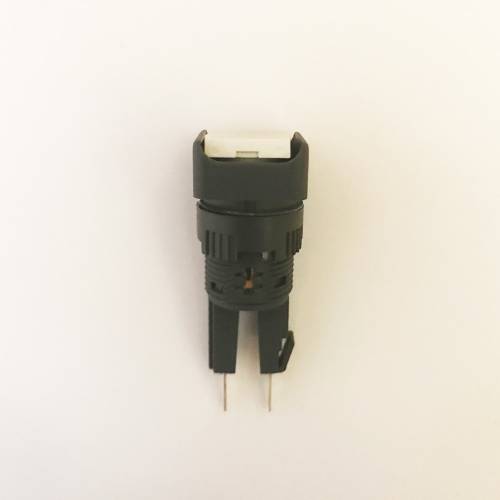

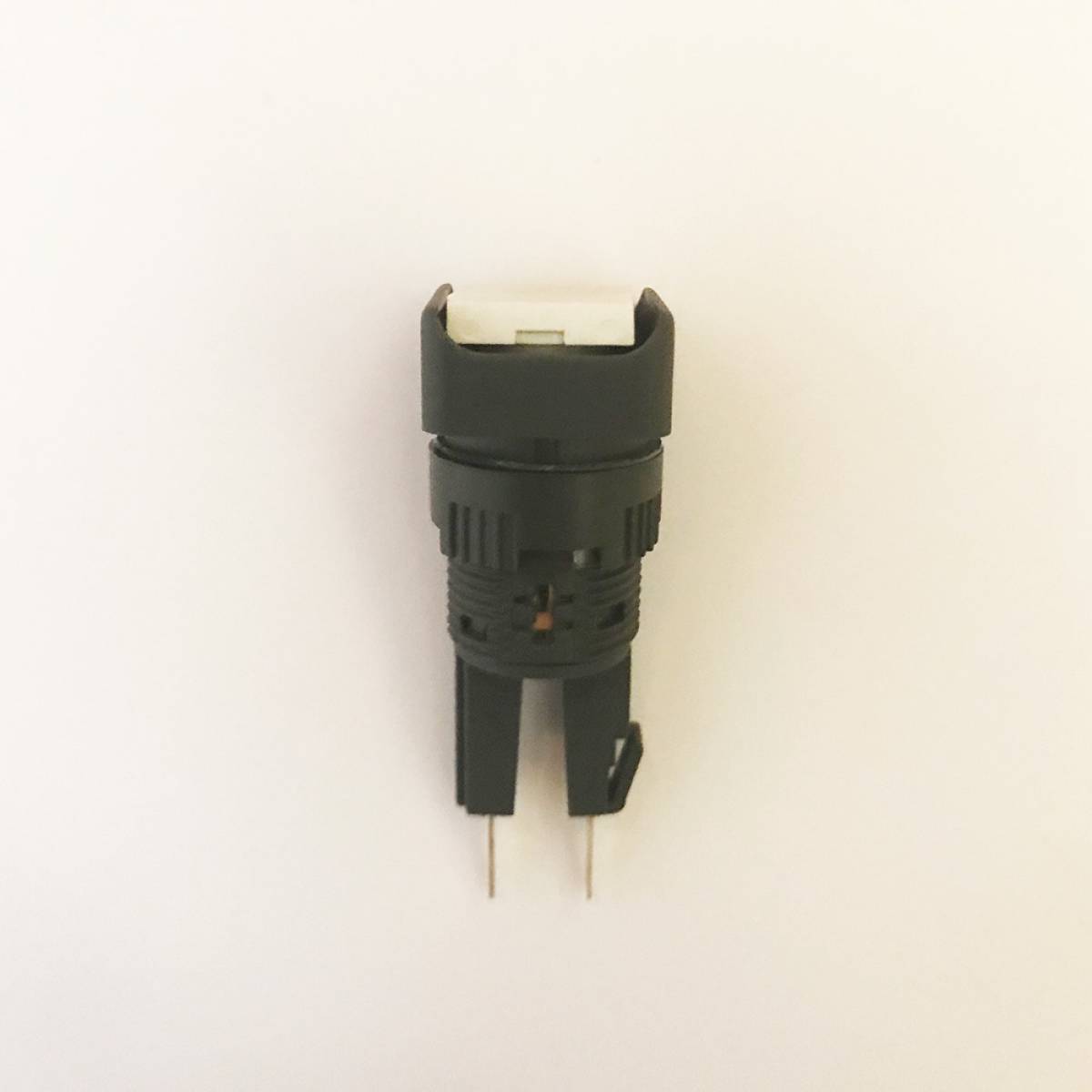

APEM A01 Series Latching Square Button

A range of 16 mm panel mounting pushbuttons and matching indicators,
available latching and momentary with custom engraved screens,
insert legends and many accessories.

MAIN FEATURES
Environmental protection : IP65
Modular construction
Electrical life : 50.000 cycles min.
Screen engraving or insertable legends on request
Approvals: UL, VDE
TYPICAL APPLICATIONS
Automotive
Marine
Control panels
Mosaic panels
Industrial lathes
86.28 €
Piece
Piece Unit price Total
25 9.59 € 239.75 €
100 7.92 € 792.00 €
500 7.37 € 3,685.00 €
1000 6.94 € 6,940.00 €
Property Name Property Value
We'll Call You


Thank you,
We will contact you as soon as possible

Send
  • GENERAL SPECIFICATION
    • Operating temperature : -20°C to +55°C
    • Solder heat resistance : 350°C for 5 seconds
    • Sealing : Panel sealed to IP65, rear of panel IP40

    ENVIRONMENTAL SPECIFICATIONS
    • Sealing : Panel sealed to IP65, rear of panel IP40

    ELECTRICAL SPECIFICATIONS
    • Current/voltage rating : 10mA 5VAC min, 6Amp 250VAC, 6Amp 12VDC
    • Initial contact resistance : 10m? max at 1Amp 4VDC
    • Insulation resistance : 50M? min
    • Dielectric strength : 750V between open contacts, 5KV live to accessible • Electrical life 50,000 cycles min
    • Insulation : Class 2
    • Lamp life : LED, 60,000 hours to 75% relative luminosity filament, approx. 5000 hours,
    neon, approx. 10,000 hours

    MATERIALS
    • Screens : PC
    • Reflector assembly : PC
    • Nut : ABS
    • Camtrack Momentary : PPE
    • Camtrack maintained : PPSU
    • Switch block 1 & 2 pole : PBT
    • Switch block 3 & 4 pole : PEI
    • Contacts : Gold plated silver

    MECHANICAL SPECIFICATIONS
    • Contact gap : >1mm (0.039)
    • Mechanical life : Momentary, 1 million cycles, maintained 100,000 cycles • Lamp : Midget grove T1 3/4 filament, neon or LED
    • Terminals : Solder/quick connect 2.8mm (0.110)

    APPROVALS
    UL
