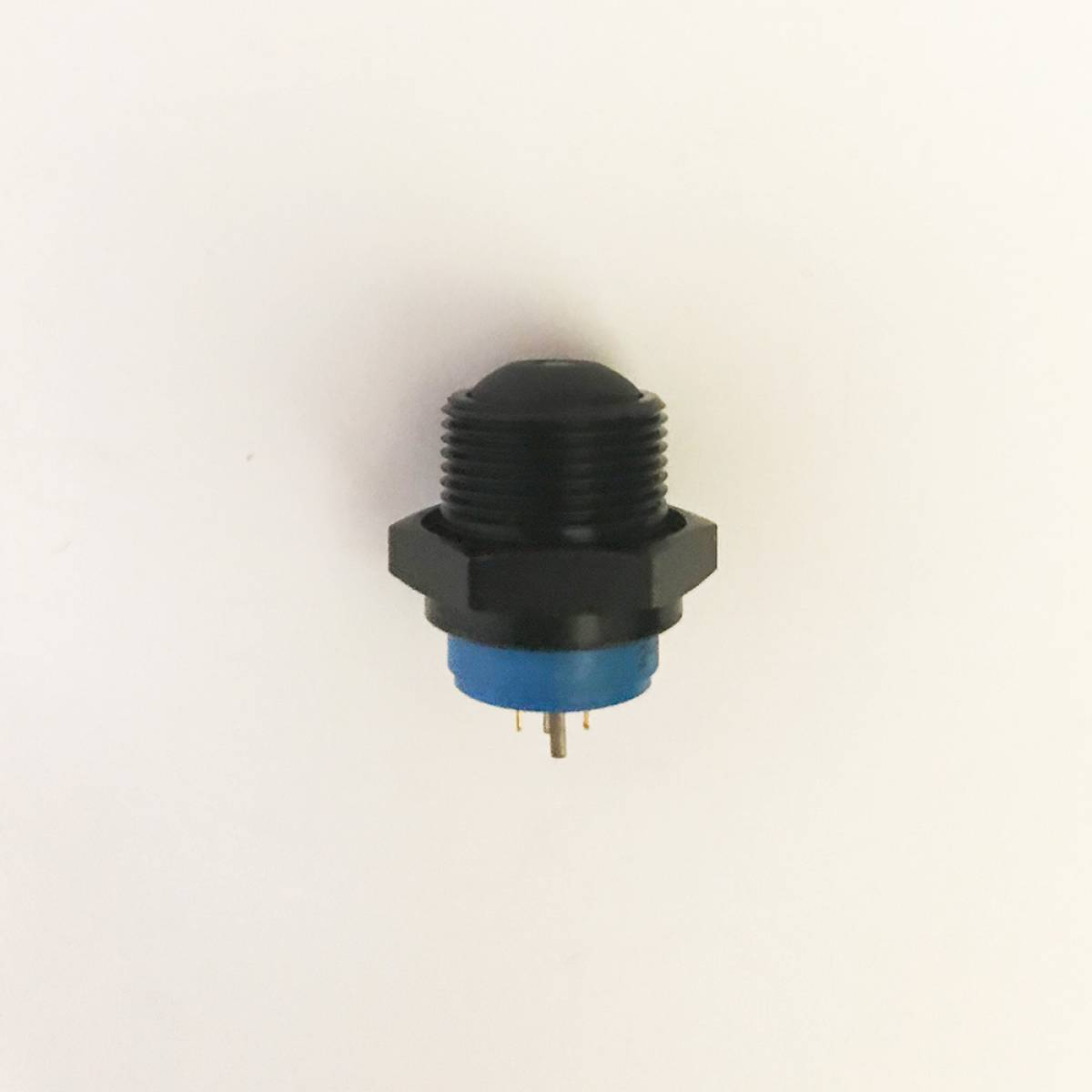

APEM IZ Series D cut 16mm Metal NO Momentary Button with Yellow LED

The IZ series is a rear mounted pushbutton, available with a polyamide or a metal case.
This product has been designed to reduce the assembly cost in 2 application types: wave soldering and when using a connector.
The IZ series allows flush panel mounting and makes dismounting easier.

MAIN FEATURES
Rear mounting for easier installation
Momentary metal models
Fixed or variable panel thickness
Screw version available up to 4A
Sealed to IP67
Illuminated or non-illuminated
Flat actuator for optional marking
24.00 €
Piece
Piece Unit price Total
Property Name Property Value
SERIES IZ
MODELS Metal, fixed panel thickness (D-Cut)
ACTUATOR SHAPES Round, curved
ELECTRICAL FUNCTIONS Normally open (NO)
TERMINALS Straight PC
CONTACTS Silver, gold plated
ACTUATOR COLOR Black
BUSHING&BEZEL FINISH Black (standard)
LED COLOR Non-illuminated
We'll Call You


Thank you,
We will contact you as soon as possible

Send
  • GENERAL SPECIFICATION
    • Panel thickness: - IZM: 3 mm (.118) max. - IZN: 4 mm (.157) max.
    • Total travel: 1.8 mm (.070) +/- 0.3 mm
    • Typical operating force: 6 N +/- 2 N
    • Low level or mechanical life: 1,000,000 cycles
    • Torque: IZN: 1 Nm max. IZM: 0.7 Nm max. applied to nut
    • Soldering : 320 °C max. for 3 sec.

    ENVIRONMENTAL SPECIFICATIONS
    • Front panel sealing: IP67 according to IEC 60529
    • Shock resistance: 100g according to IEC 512-4, test 6c
    • Vibration resistance: 10-500Hz - 10g according to IEC 512-4, test 6d
    • Salt spray: IEC 512-6, test 11f
    • Operating temperature: -40 °C to +85 °C (-40 °F to 185 °F)

    ELECTRICAL SPECIFICATIONS
    • Max. current/voltage rating with resistive load:
    - Gold plated silver contacts (code 4): 200 mA 48 VDC
    - Silver contacts (code 2) - screw terminals: 4 A 48 VDC
    • Electrical life at full load: 500,000 cycles
    • Initial contact resistance: 100 m? max.
    • Insulation resistance: 1 G? min. at 500 VDC
    • Dielectric strength: 1,000 Vrms 50 Hz

    MATERIALS
    • Case: thermoplastic UL94-V0
    • Plunger: polyamide
    • Bushing/bezel: brass, nickel plated
    • Contacts: 4: silver, gold plated 2: silver (screw terminals)
    • Multi-wire lead AWG20, section 0.6 mm2
    • LED wire: AWG26, section 0.12 mm2
    • Lens: polycarbonate
    • Terminal seal: epoxy (except screw terminals)
