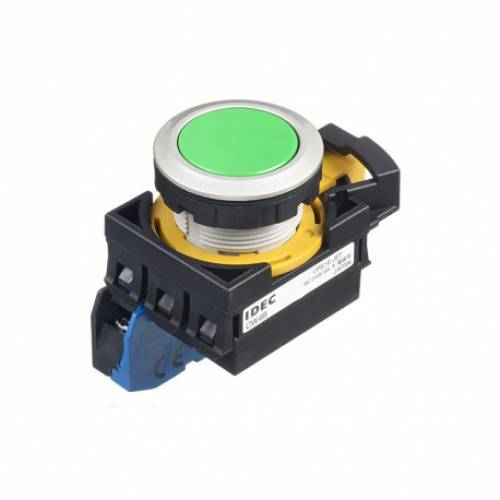

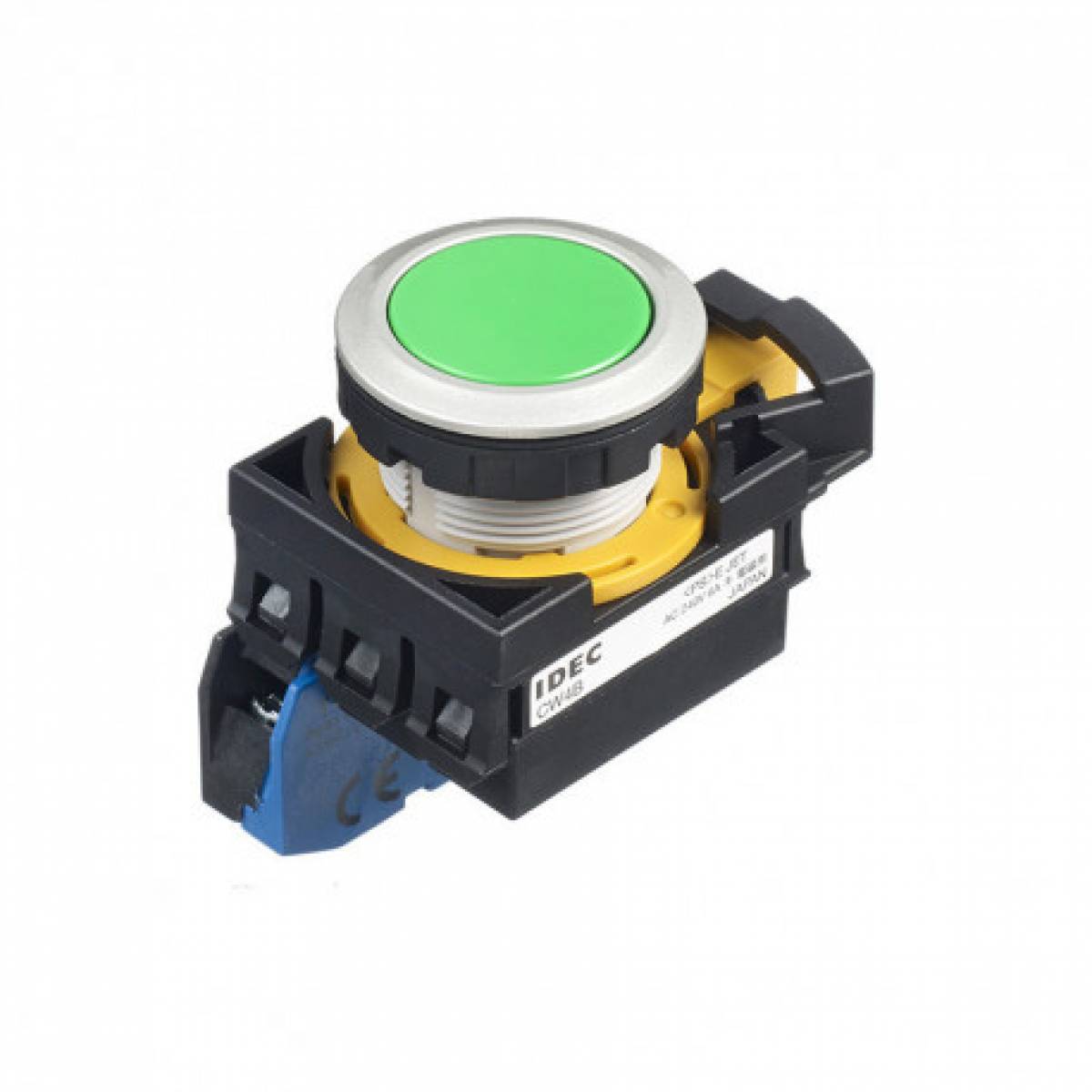

IDEC CW Series Momentary Button

CW - Pushbutton series is part of a full range of flush switches, pilot-lights, and selectors for aesthetic applications.

MAIN FEATURES

Separable contact blocs, up to 6 contacts, rated 10Amps max; 2 different shapes, 7 different colours and 2different bezels; Flush silhouette: only 2,5 mm above the panel; Fully qualified and certified.
18.00 €
Piece
Piece Unit price Total
Property Name Property Value
We'll Call You


Thank you,
We will contact you as soon as possible

Send
  • GENERAL SPECIFICATION
    • ø22.3 mm mounting hole compliant with IEC 60947-5-1
    • 3.5 mm operator travel for pushbuttons ensures comfortable and reliable operation
    • Black and metallic bezels available
    • Illuminated pushbutton switches are available
    • IP20 finger-safe screw terminals
    • UL Type 4X rating
    • Up to 6 contacts per switch are possible with use of dual contact blocks


    ENVIRONMENTAL SPECIFICATIONS
    • Operating Temperature:
    Non-ill.: –25 to +60 °C (no freezing)
    LED ill.: –25 to +55 °C (no freezing)
    • Operating Humidity: 45 to 85% RH (no condensation)
    • Storage Temperature: –40 to +80 °C
    • Degree of Protection (IEC60529)
    Panel front: IP65, with rubber boot: IP66, IP67, UL type 4X
    Terminals: IP20
    • Vibration Resistance Operating extremes: 5 to 55Hz, amplitude 0.5 mm
    • Shock Resistance:
    Operating extremes: 100 m/s²
    Damage limits: 1000 m/s²


    ELECTRICAL SPECIFICATIONS
    • Direct opening NC contact
    • 10 A contact rating; up to 6 contact blocks for non-ill. and 4 contact blocks for illuminated models can be connected
    • Contact blocks can be removed by using the locking lever
    • Contact Resistance: 50 m? max. (initial value)
    • Insulation Resistance: 100 M? min. (500V DC megger)
    • Overvoltage Category: II (IEC 60664-1)
    • Impulse Withstand Voltage: 2.5 kV (IEC60664-1/60947-5-1)
    • Short-circuit Protection: 250V/10A fuse, (Type aM IEC60269-1, IEC602069-2)
    • Electrical Shock Protection: Class II (IEC61140)


    MATERIALS
    • Bezel Material: Polyamide
    • Contact Material: Silver


    MECHANICAL SPECIFICATIONS
    Depth behind panel :
    Momentary illuminated pushbutton: 39,9 mm for 1 to 2 contacts; 59,9 mm 3 to 4 contacts;
    Maintained illuminated pushbutton: 44,6 mm for 1 to 2 contacts; 64,6 mm 3 to 4 contacts;
    Momentary non-illuminated pushbutton: 39,9 mm for 1 to 3 contacts; 59,9 mm 4 to 6 contacts;
    Maintained non-illuminated pushbutton: 44,6 mm for 1 to 3 contacts; 64,6 mm 4 to 6 contacts;


    APPROVALS
    UL
