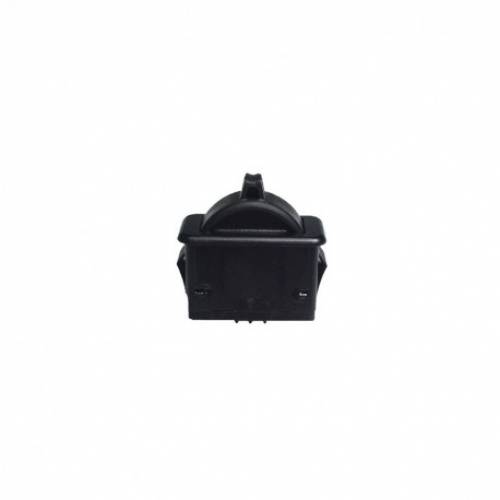

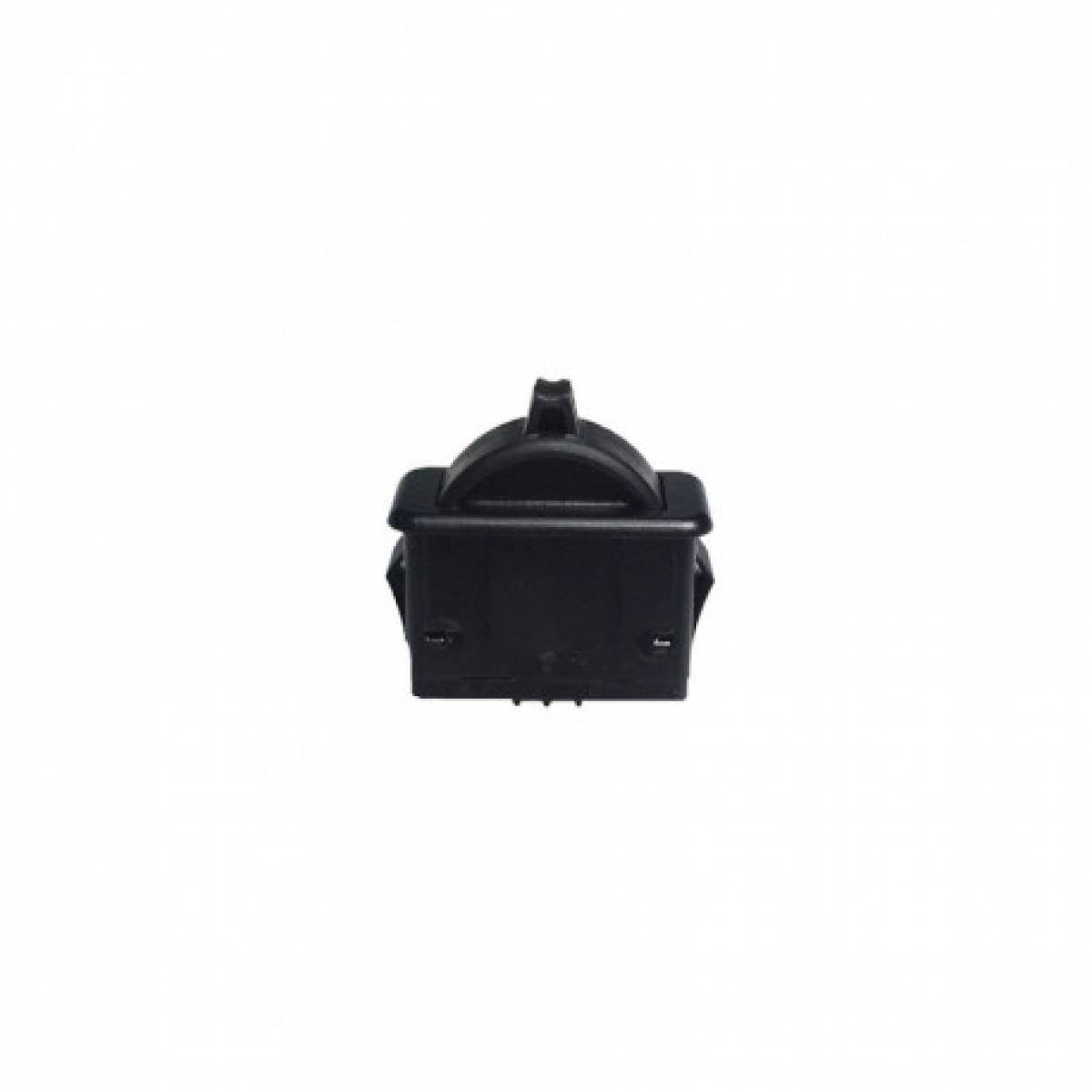

APEM CW Series Mini Hall Effect Joystick

The CW Series is a revolutionary Hall effect control wheel
providing proportional control in one miniature axis.
A spring return device, the CW is available with your choice of
linear output options and wheel colors. Ideal applications include joystick,
"gamepad", armrest and panel mount integration.

MAIN FEATURES

Miniature design
Designed for joysticks, armrest and panel mounting
Proportional output
Self-centering, single axis actuator
Snap-in mounting

CW Series Datasheet

72.00 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total

Property Name	Property Value

We'll Call You

Description

GENERAL SPECIFICATION
• Miniature design
• Designed for joysticks, armrest and panel mounting
• Proportional output
• Self-centering, single axis actuator
• Snap-in mounting

ENVIRONMENTAL SPECIFICATIONS
• Operating Temperature: -40°C to +85°C (-40°F to +185°F)
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)
• EMC Immunity Level: EN61000-4-3
• EMC Emissions Level: EN61000-6-3:2001
• ESD: EN61000-4-2

ELECTRICAL SPECIFICATIONS
• Resolution: 1.22mV
• Supply Voltage Range: 5.00V± 0.250V
• Reverse Polarity Max: -10V
• Overvoltage Max: 20V
• Output Impedance: 2?
• Return to Center Voltage Tolerance: ± 200mV initial

MATERIALS
• Handle/Actuator: Glass filled nylon
• Body: Glass filled nylon

MECHANICAL SPECIFICATIONS
• Mechanical Angle of Movement: ±45°
• Expected Life: 3 million cycles
• Mass / weight: 18.25g ± 5.0g (0.64oz ± 0.18oz)
• Lever Action (centering): Spring centering
• Actuation Force: .151bf.
