Description
  • Brand APEM
  • Product CodeHFAT56
  • Stock StatusPre-order
  • Stock0

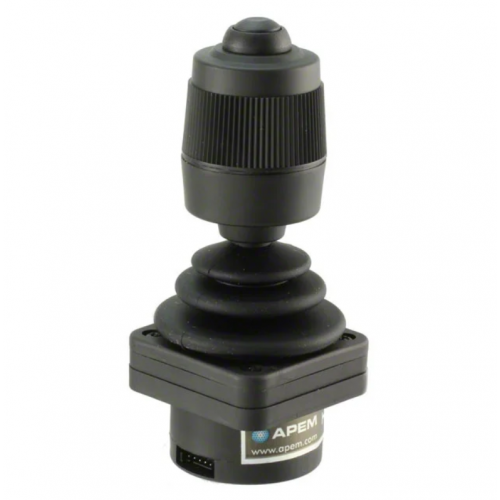

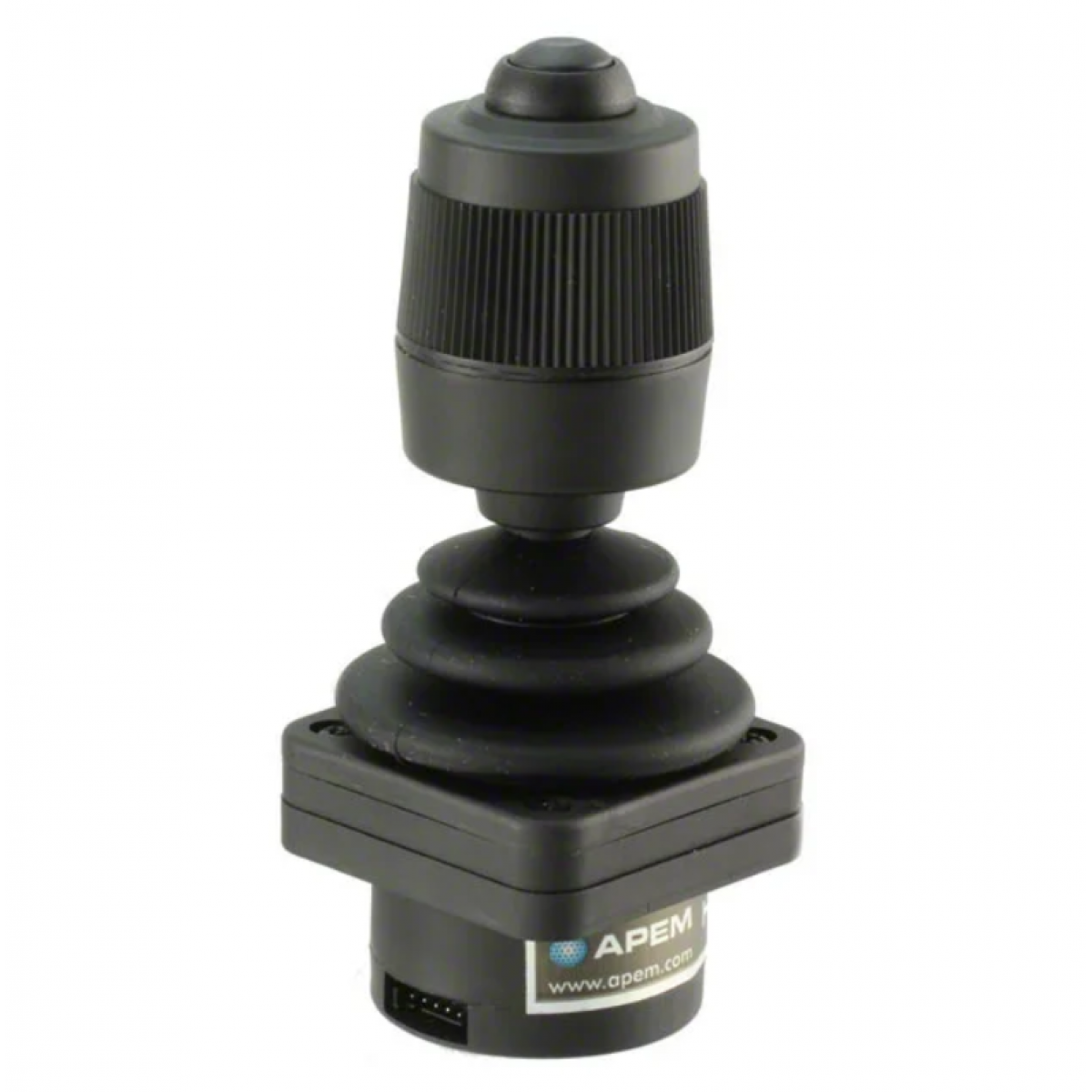

APEM HF Series Joystick

The HF Series joystick is a contactless, multi-axis controller providing
long life finger positioning control. A compact, low-profile joystick utilizing
non-contact Hall effect technology, the HF Series joystick is designed for
low operating force, clean environment applications requiring enduring accuracy and precision.

MAIN FEATURES
1, 2 & 3 axis configurations
CANbus J1939 and CANopen options
USB 2.0 HID interface option
Dual sensors for redundancy
Voltage regulator, 24V supply option
Connectorized housing
588.00 €
Piece
Piece Unit price Total
Property Name Property Value
We'll Call You


Thank you,
We will contact you as soon as possible

Send
  • GENERAL SPECIFICATION

    • Break Out Force: 1.3N (0.3lbf)

    • Operating Force: 2.8N (0.63lbf)

    • Maximum Applied Force: 200N (45.00lbf)

    • Mechanical Angle of Movement: 36º (18º from center)

    • Expected Life: 5 million

    • Package Size: 5.75” x 4.50” x 3.25”

    • Lever Action: Single spring, omnidirectional


    ENVIRONMENTAL SPECIFICATIONS

    • Operating Temperature: -40ºC to 85ºC (-40ºF to 185ºF)

    • Storage Temperature: -40ºC to 85ºC (-40ºF to 185ºF)

    • Sealing (IP): Up to IP68*

    • EMC Immunity Level (V/M): EN61000-4-3

    • EMC Emissions Level: EN61000-6-3:2001

    • ESD: EN61000-4-2

    • Output linearity: ±200mV

    • Dual output interlinearity (X/Y): ±400mV

    • Dual output interlinearity (Z): ±600mV


    ELECTRICAL SPECIFICATIONS

    • Sensor: Hall effect

    • Supply Voltage Operating: 5VDC±200VDC

    • Reverse Polarity Max: -10VDC

    • Transient Overvoltage Max: 20VDC

    • Ratiometric Output Voltage: See options

    • Output Impedance: 2?

    • Return to center Voltage: ±200mV


    MATERIALS

    • Material: Glass filled nylon


    MECHANICAL SPECIFICATIONS

    • Break Out Torque: 0.09N·m (0.80lbf·in)

    • Operating Torque: 0.121N·m(1.07lbf·in)

    • Maximum Allowable Torque: 2.50N·m(22.13lbf·in)

    • Hand Mechanical Angle: 60º (30º from center)

    • Handle Action: Spring centering, rotational

    • Expected Life: 5 million
